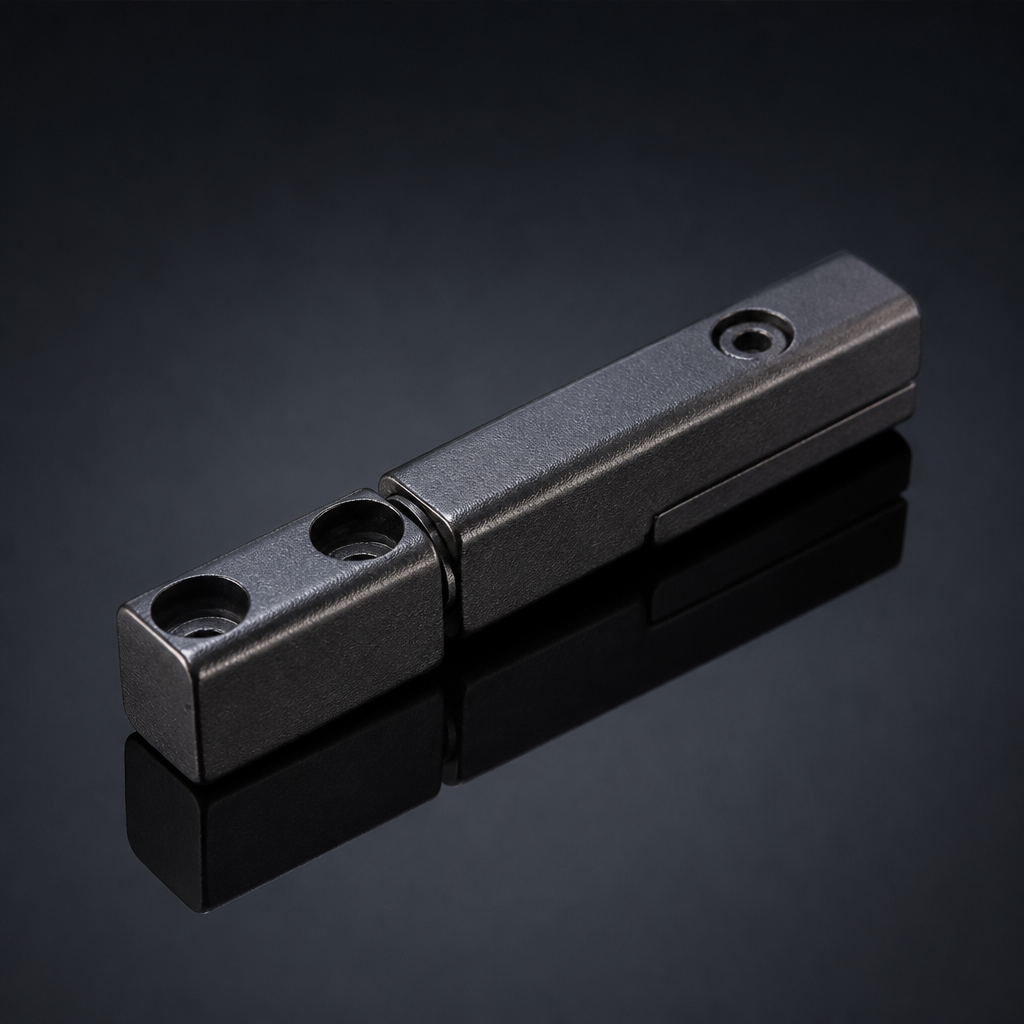

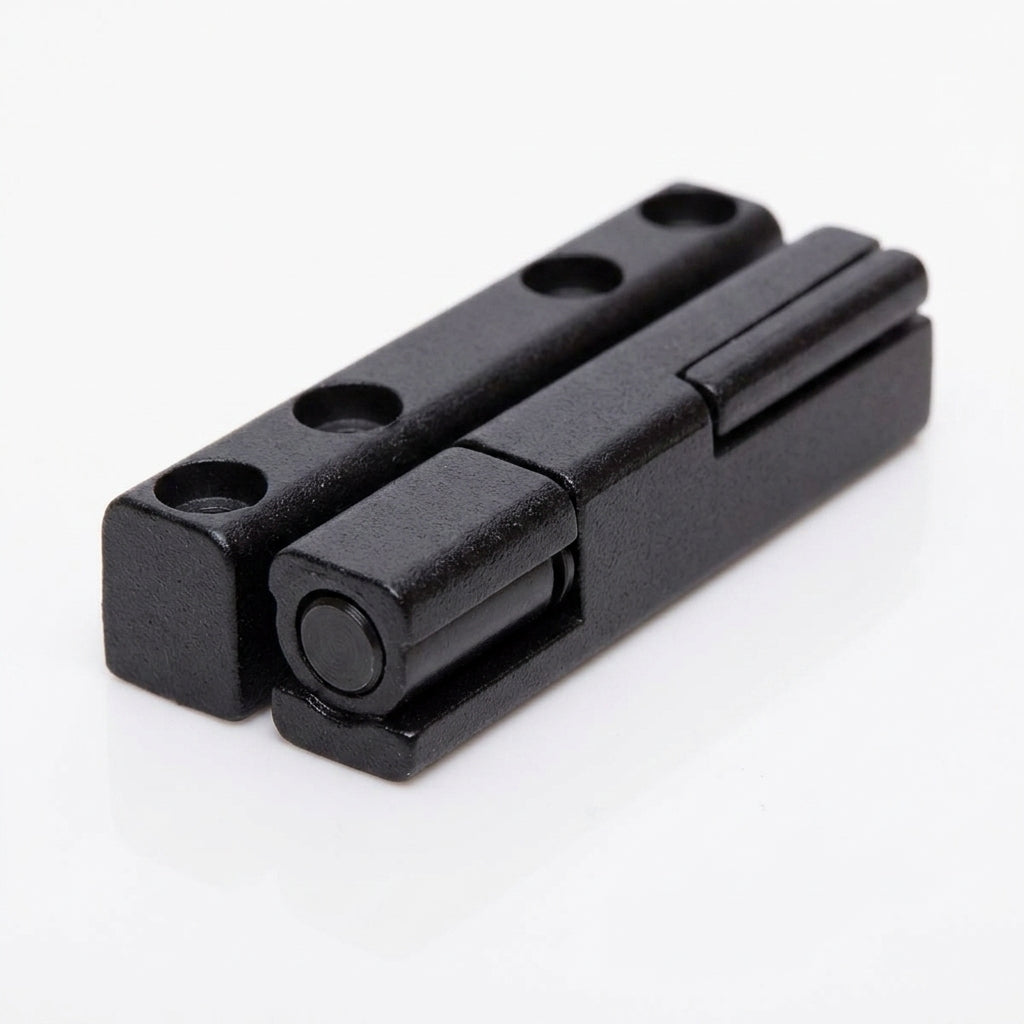

Die-cast Zinc Adjustable In-line Detachable Lift-off Hinge M5

Durable and versatile, the Die-cast Zinc Adjustable In-line Detachable Lift-off Hinge M5 is perfect for various applications.

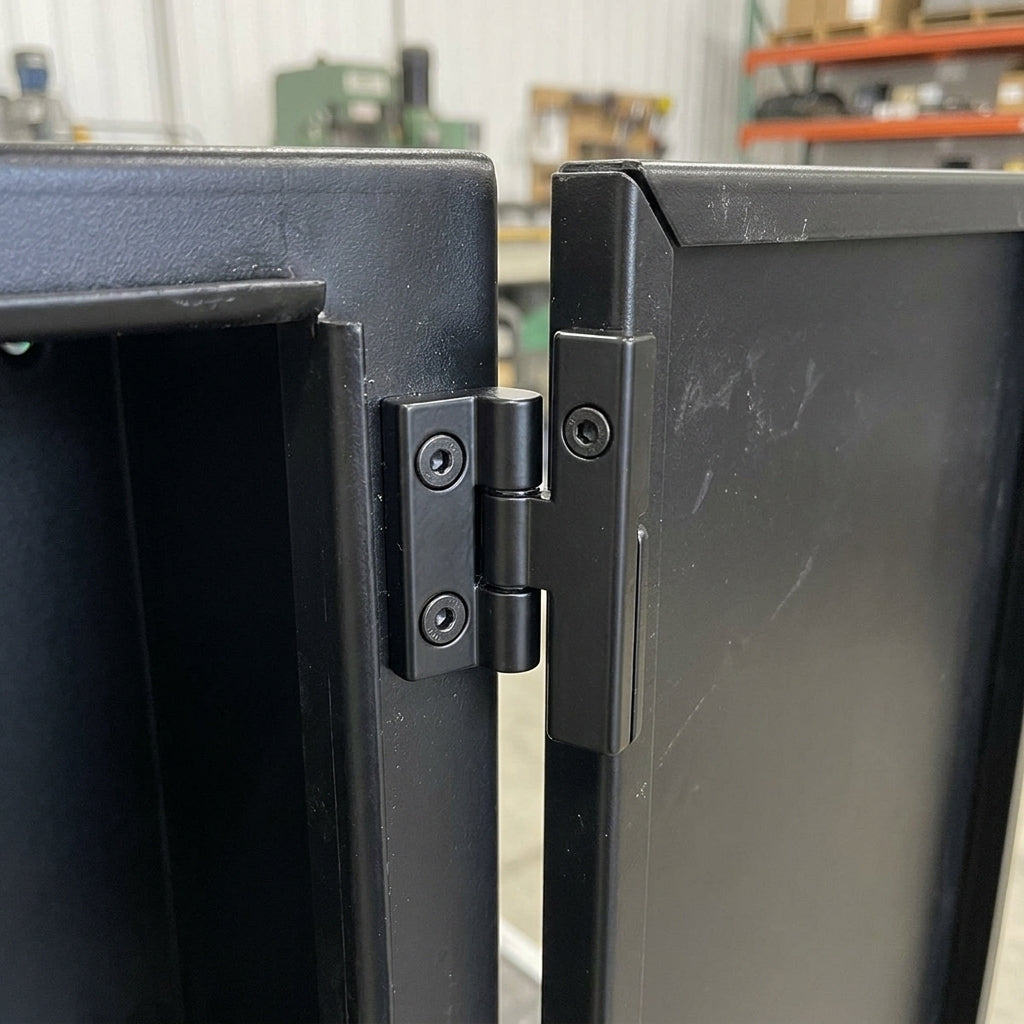

This hinge has been specifically designed for mounting doors, panels and safety guards on a wide range of modern industrial cabinets and enclosures. It is commonly installed on IT and telecoms equipment, HVAC components, manufacturing machinery and various processing and packaging equipment.

Our black, powder coated zinc offset lift-off hinges benefit from a strong construction and concealed threads for a secure installation. The base plate of this hinge is configured to allow 90 degrees of adjustment over the position of the base plate relative to the hinge leaf. This is advantageous where the door and mounting panel are not precisely perpendicular or where adjusting the mounting angle better accommodates a gasket between the door and mounting panel.

These hinges can be installed with matching orientation to allow doors or panels to be removed for improved access. Likewise, they can be installed with opposing orientation for non-removable doors or panels.

Sold individually.

Key Features

• Adjustable base plate for precise alignment
• Detachable design for easy access
• Strong die-cast zinc construction
• Concealed threads for secure mounting
• Powder-coated finish for durability

Specifications

• Type: Adjustable In-line Detachable Hinge
• Material: Die-cast Zinc
• Adjustment: 90 degrees
• Finish: Black Powder Coated
• Sold Individually

Applications

• Industrial cabinets
• Telecoms equipment
• HVAC components
• Manufacturing machinery
• Processing and packaging equipment
