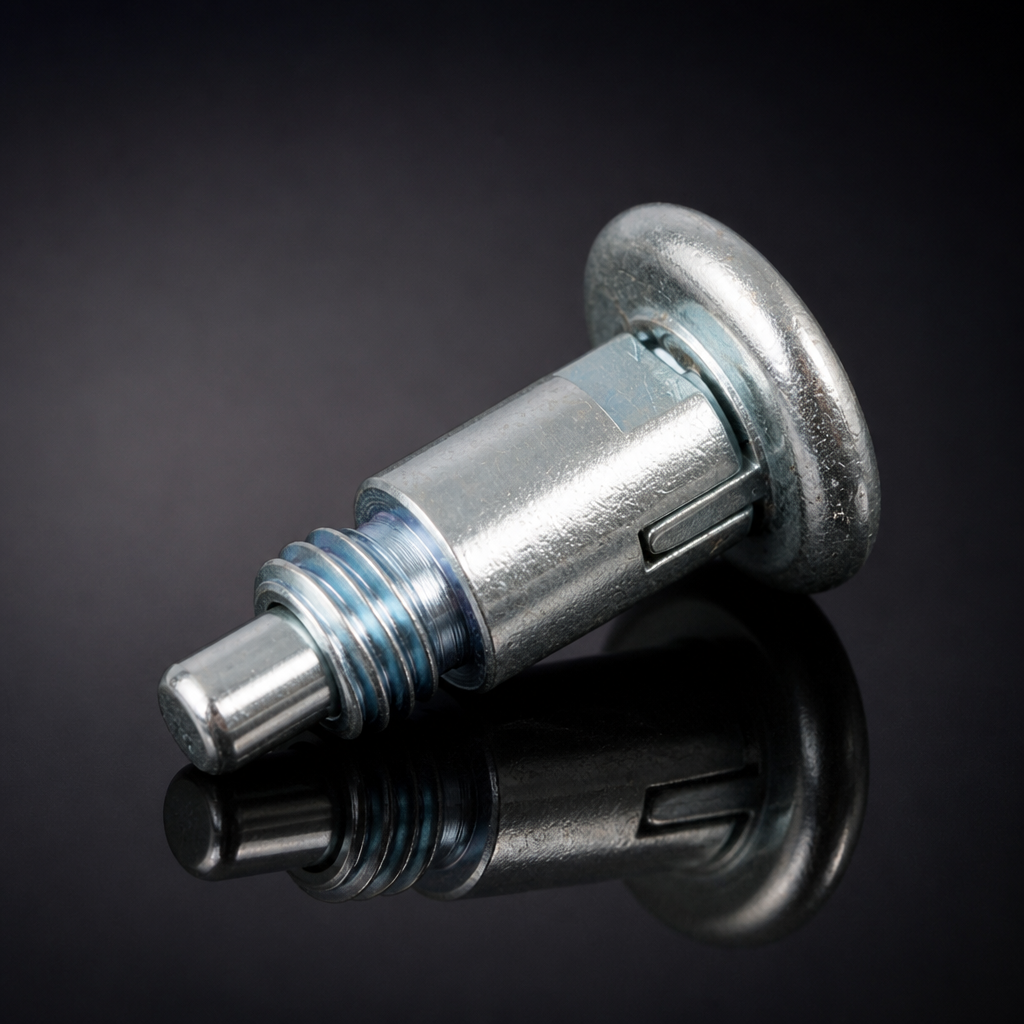

All-Metal Spring Loaded Index Bolt M10 x 1mm - 30mm Length

All-Metal Spring Loaded Index Bolt with Rest Position

This index bolt is designed for precise positioning and locking in various machinery and equipment. Featuring a spring-loaded mechanism with a rest position, it ensures reliable fastening with its robust zinc-plated steel construction. Verify the M10 x 1mm thread size and grip length for compatibility before ordering.

Key Features

• Grip Length: 7mm – verify against the required grip length.
• Height: 30mm – total height of the bolt.
• Length: 30mm – overall length of the bolt.
• Material: Zinc plated steel – construction material.
• Thread Length (L): 5.5mm – length of the threaded section.
• Thread Size (D1): M10x1.0 – ensure it matches the receiving thread.

Specifications

• Thread Size: M10 x 1mm
• Overall Length: 30mm
• Height: 30mm
• Grip Length: 7mm
• Material: Zinc plated steel

Applications

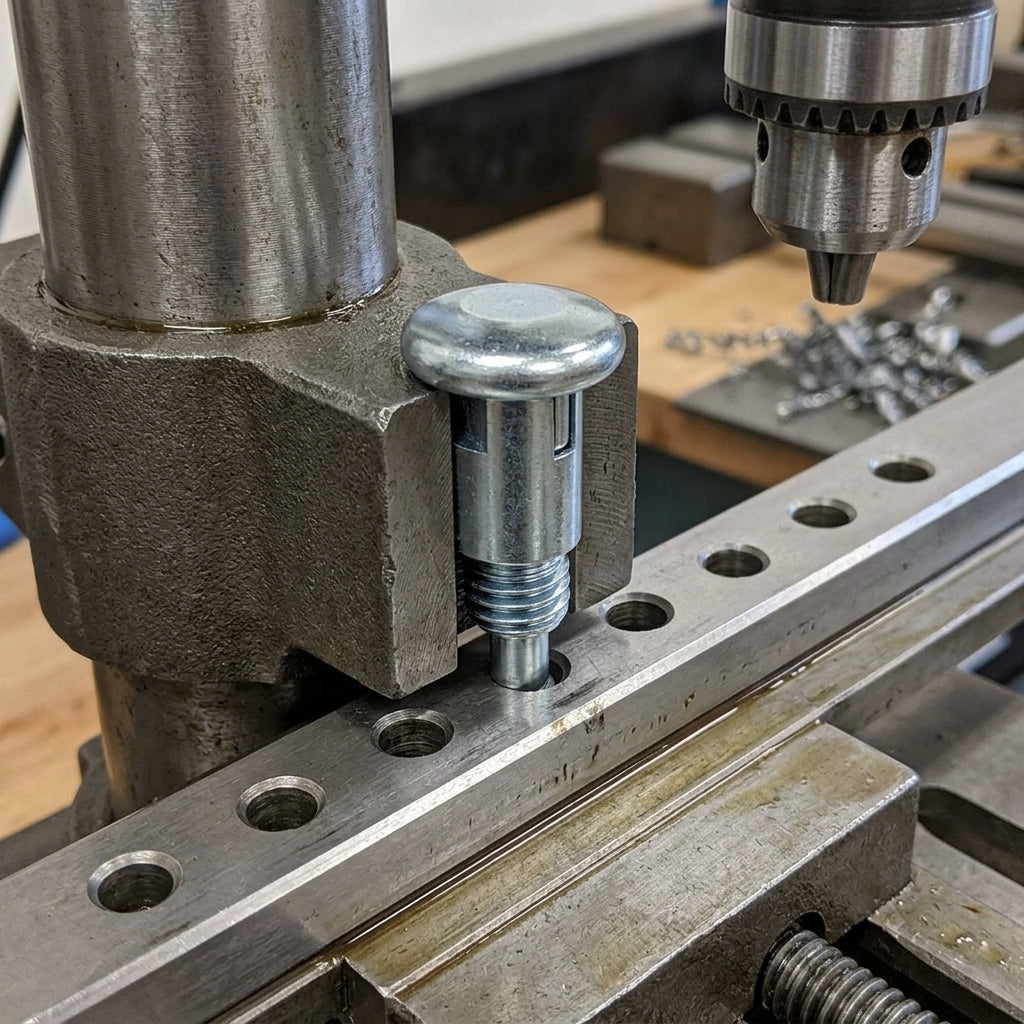

• Machinery: Used in equipment requiring precise positioning.
• Industrial Equipment: Applied where secure locking is necessary.
• Assembly Fixtures: Utilised in fixtures for repeatable positioning.
