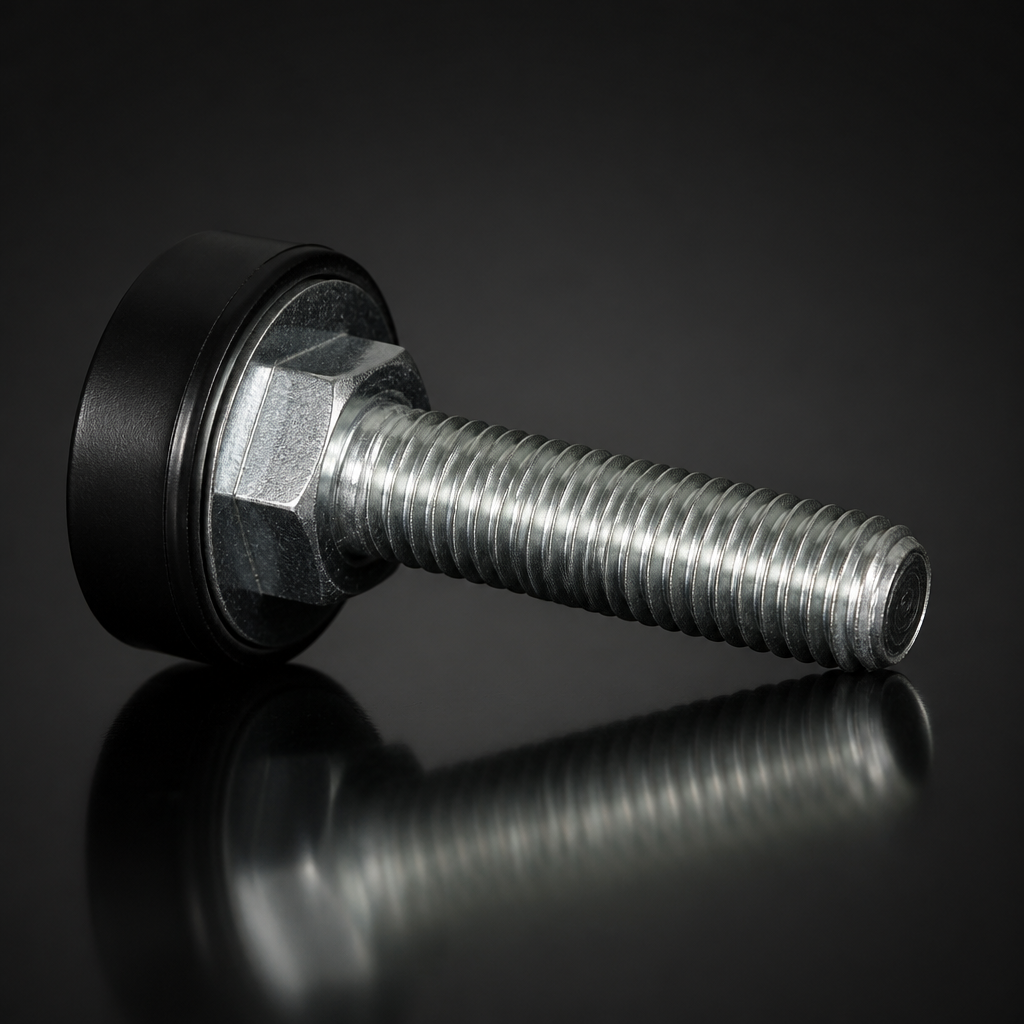

Adjustable Levelling Foot 47.5mm Base – M12 x 45mm Thread

Adjustable levelling foot for robust equipment stability.

This adjustable levelling foot is distinguished by its M12 x 45mm zinc-plated thread and 47.5mm polyamide base, providing a robust solution for stabilising and levelling equipment. The rigid foot type and substantial static load capacity of 2000kg make it suitable for heavy-duty applications where precise height adjustment is required. The zinc-plated finish enhances the durability of the thread, ensuring long-lasting performance in various settings.

Key Features

• Thread Size: M12 – ensures compatibility with a wide range of equipment requiring this thread specification.
• Thread Length: 45mm – allows for significant adjustment to accommodate uneven surfaces.
• Base Diameter: 47.5mm – provides a stable footing, contributing to effective load distribution.
• Foot Type: Rigid Feet – offers a stable base for fixed installations.
• Load Capacity: 2000kg – supports heavy loads, making it suitable for demanding environments.
• Thread Material: Zinc Plated – protects against corrosion, extending the product's life.

Specifications

• Base Material: Polyamide – a robust material ensuring durability.

Applications

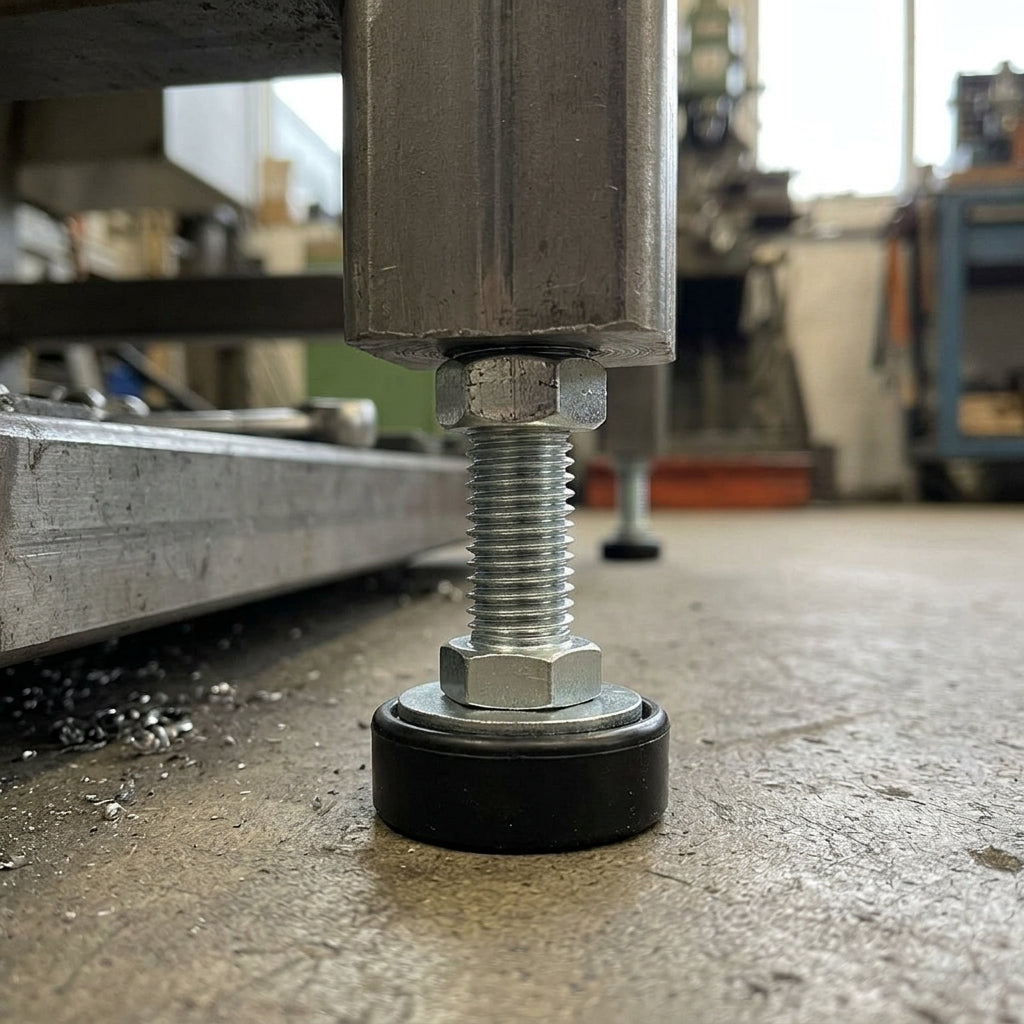

• Industrial machinery support.
• Furniture levelling and stabilisation.
• Equipment installation on uneven surfaces.
• Heavy-duty shelving systems.
• Workstation adjustments.
