55mm Tilting Adjustable Levelling Foot – M8 x 100mm Thread

Reliable adjustable levelling foot for diverse applications.

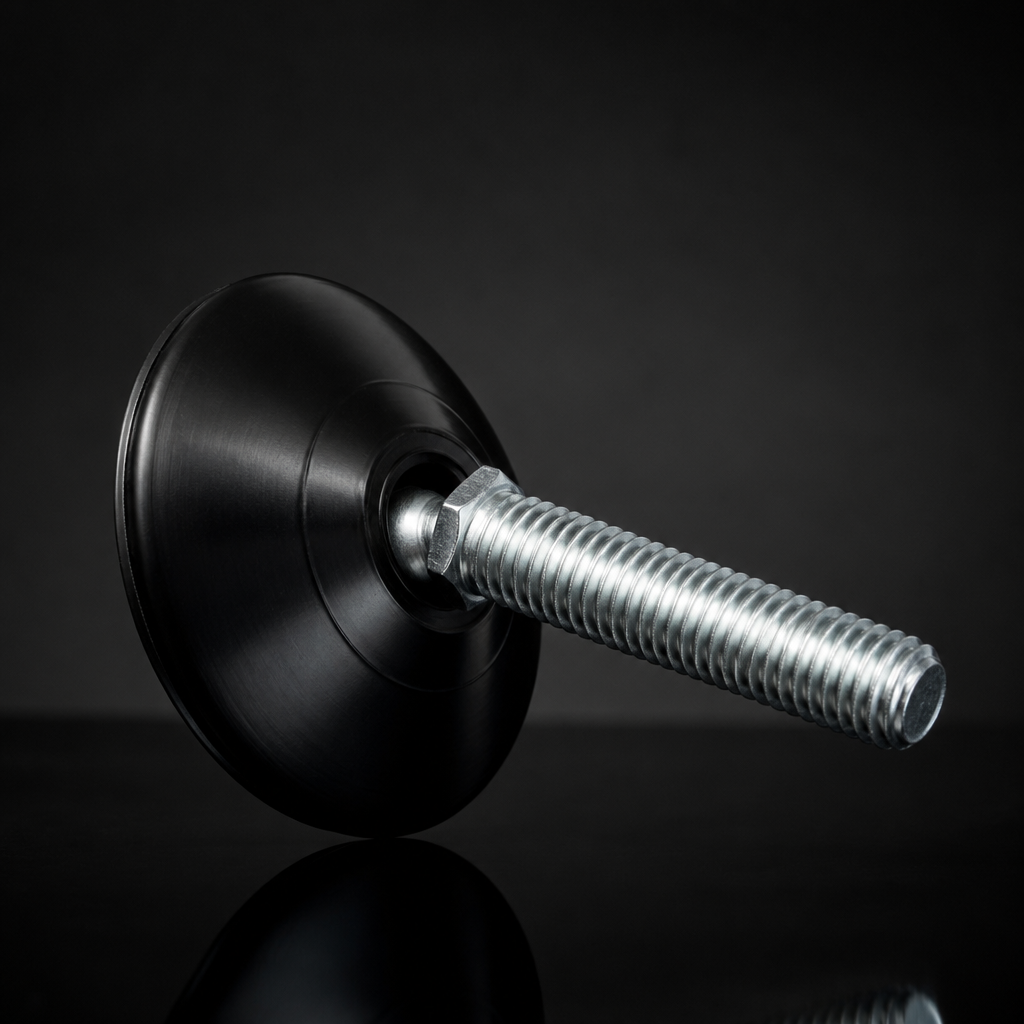

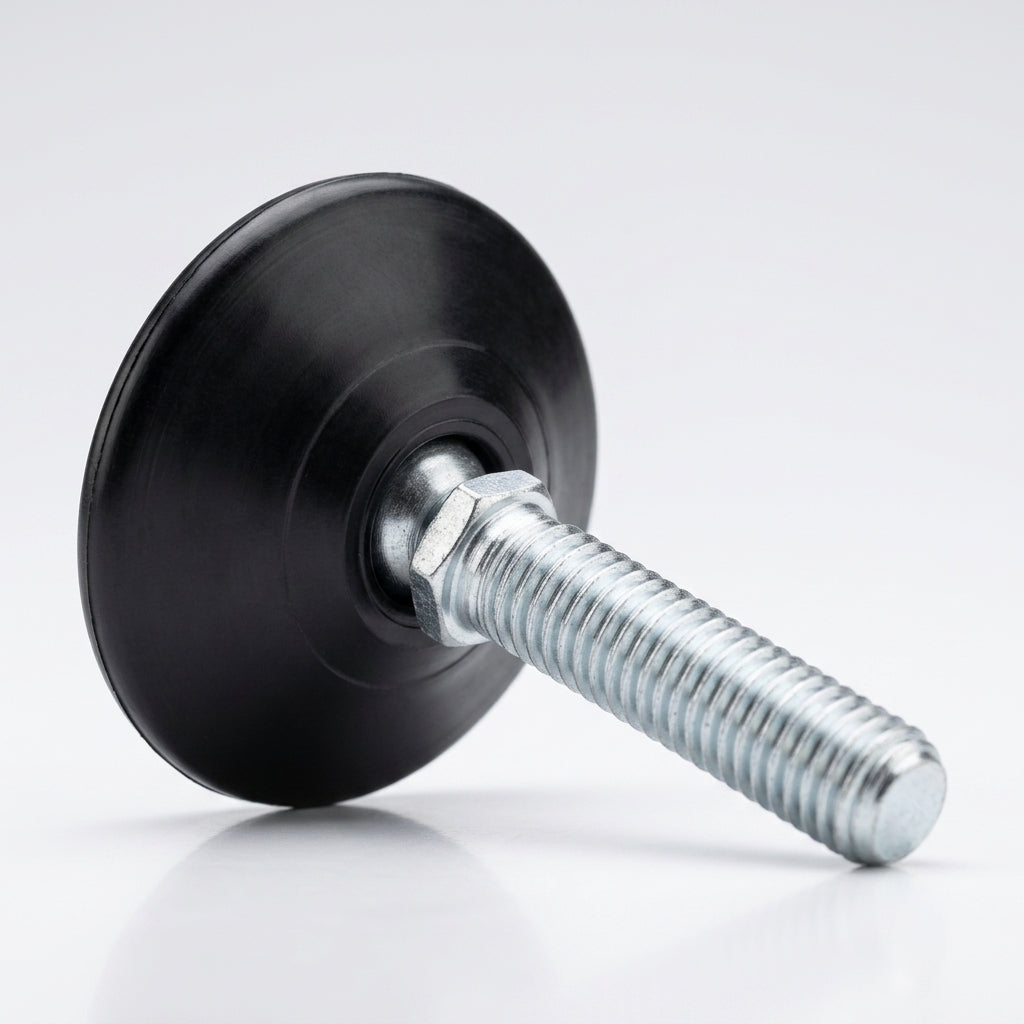

The 55mm Tilting Adjustable Levelling Foot is designed for applications requiring precise height adjustments and stability on uneven surfaces. With an M8 threaded zinc-plated shaft and a robust polypropylene base, this levelling foot is capable of supporting static loads up to 100kg. The tilting feature allows for slight angular adjustments, making it suitable for equipment and furniture that require stable positioning on sloped or irregular floors.

Key Features

• Thread Size: M8 – ensures compatibility with standard M8 threaded inserts.
• Thread Length: 100mm – allows for significant height adjustments.
• Base Diameter: 55mm – provides a stable contact surface.
• Foot Type: Tilting – accommodates uneven surfaces for stable positioning.
• Load Capacity: 100kg – supports a wide range of static loads.
• Base Material: Polypropylene – offers a sturdy and reliable foundation.
• Thread Finish: Zinc Plated – enhances resistance to corrosion.

Applications

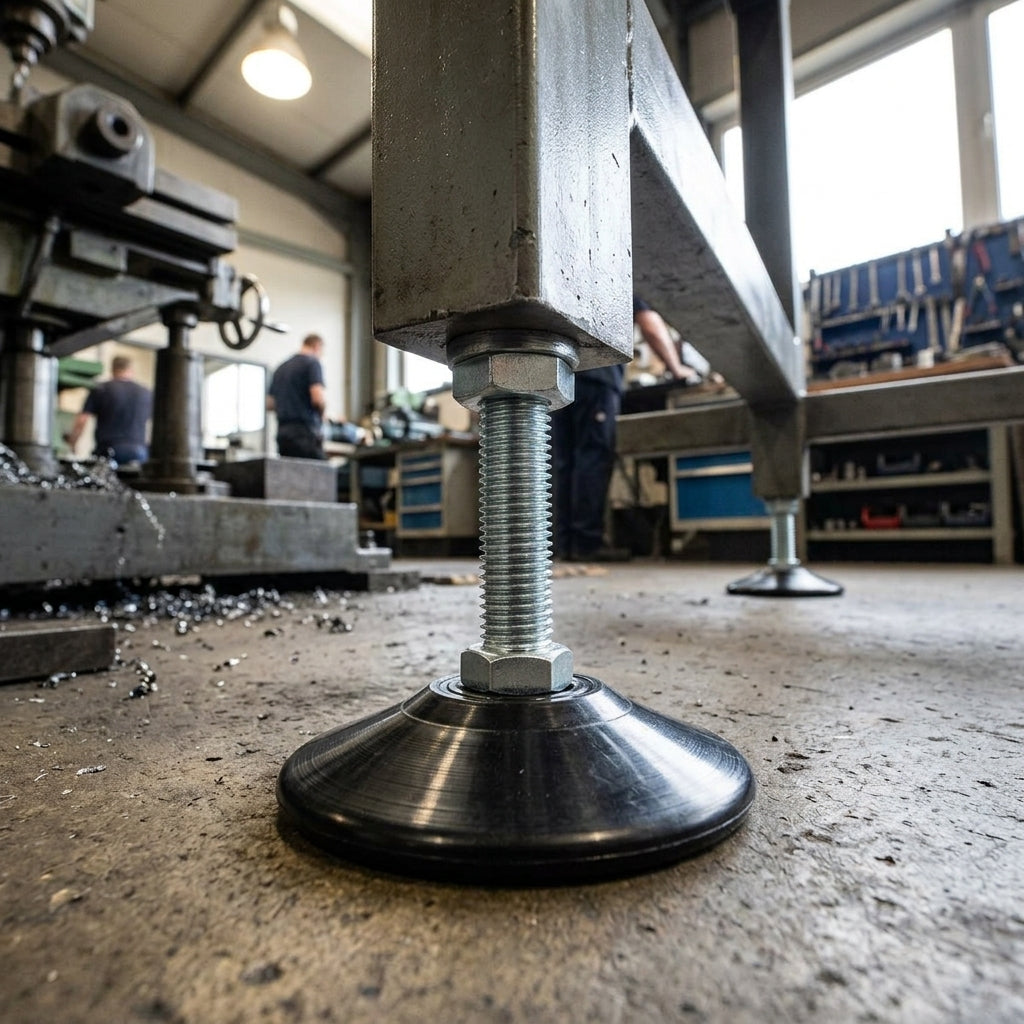

• Machinery and Equipment: Used for levelling and stabilising machinery on uneven floors.
• Furniture: Ideal for adjustable furniture legs to ensure stability.
• Workstations: Provides a solid base for workstations in industrial settings.
• Display Units: Ensures displays are level in retail environments.
