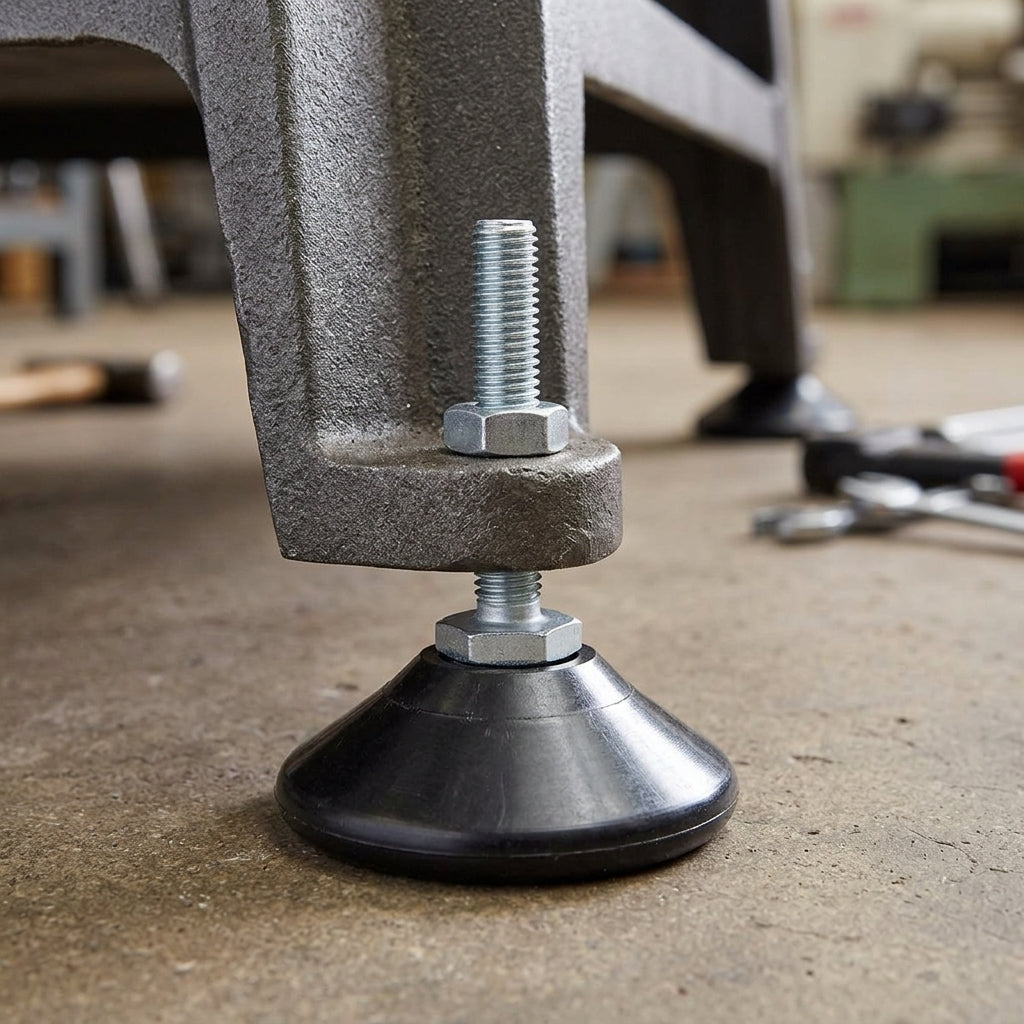

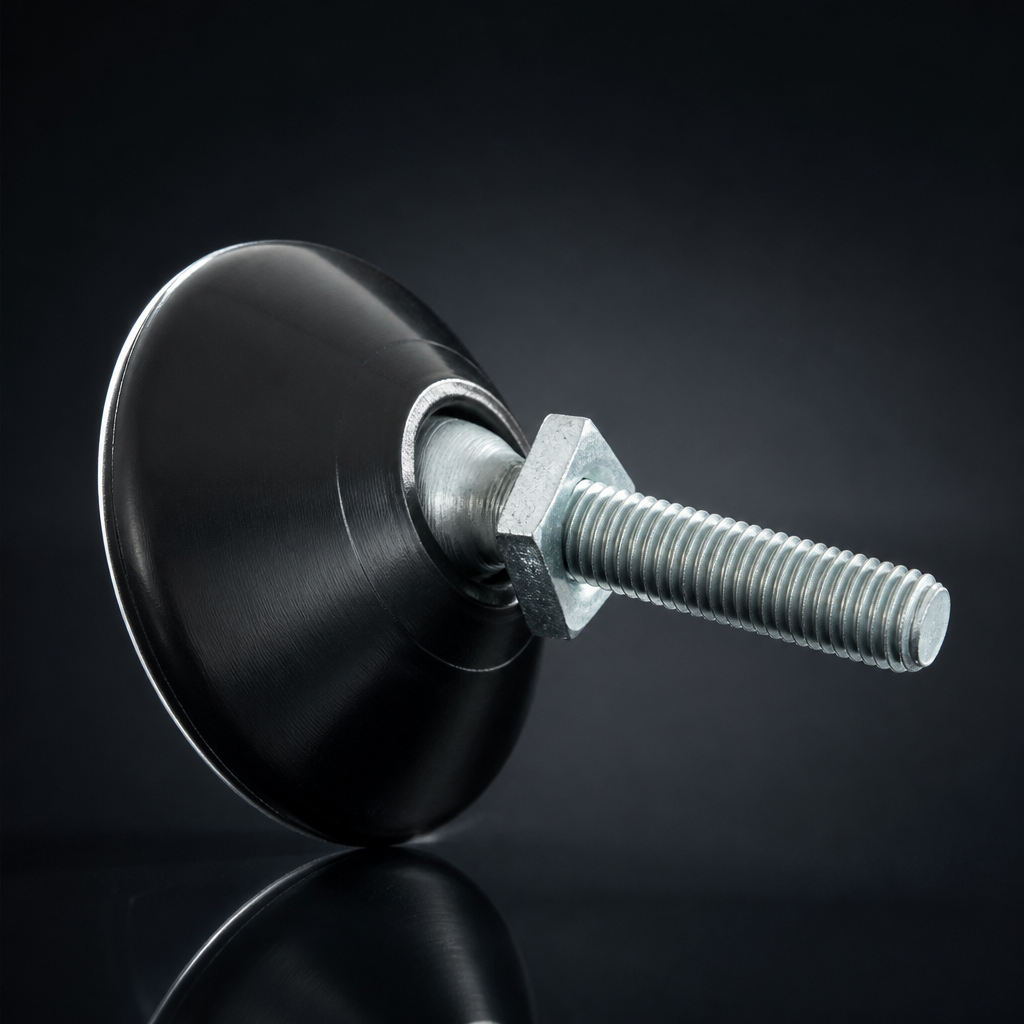

47.5mm Tilting Adjustable Levelling Foot – M8 x 50mm Thread

Precision levelling for equipment stability.

This adjustable levelling foot features a tilting design with an M8 x 50mm zinc-plated thread and a 47.5mm polypropylene base. It is engineered to support static loads of up to 100kg, making it perfect for ensuring stable positioning on uneven surfaces.

Key Features

• Thread Size: M8 – ensures compatibility with a wide range of equipment requiring M8 fittings.
• Thread Length: 50mm – provides ample length for secure engagement with the equipment.
• Base Diameter: 47.5mm – offers a stable contact surface area for effective levelling.
• Foot Type: Tilting – allows for adjustment to accommodate uneven surfaces.
• Static Load Capacity: 100kg – suitable for applications where stable support is needed.
• Thread Material: Zinc Plated – offers resistance against corrosion in standard environments.
• Base Material: Polypropylene – a durable material choice for the base.

Specifications

• Thread Size: M8
• Thread Length: 50mm
• Base Diameter: 47.5mm
• Static Load Capacity: 100kg
• Base Material: Polypropylene
• Thread Material: Zinc Plated

Applications

• Industrial equipment levelling
• Furniture stabilisation on uneven floors
• Machinery support in workshops
• Display stand adjustments
• General use in construction and maintenance
