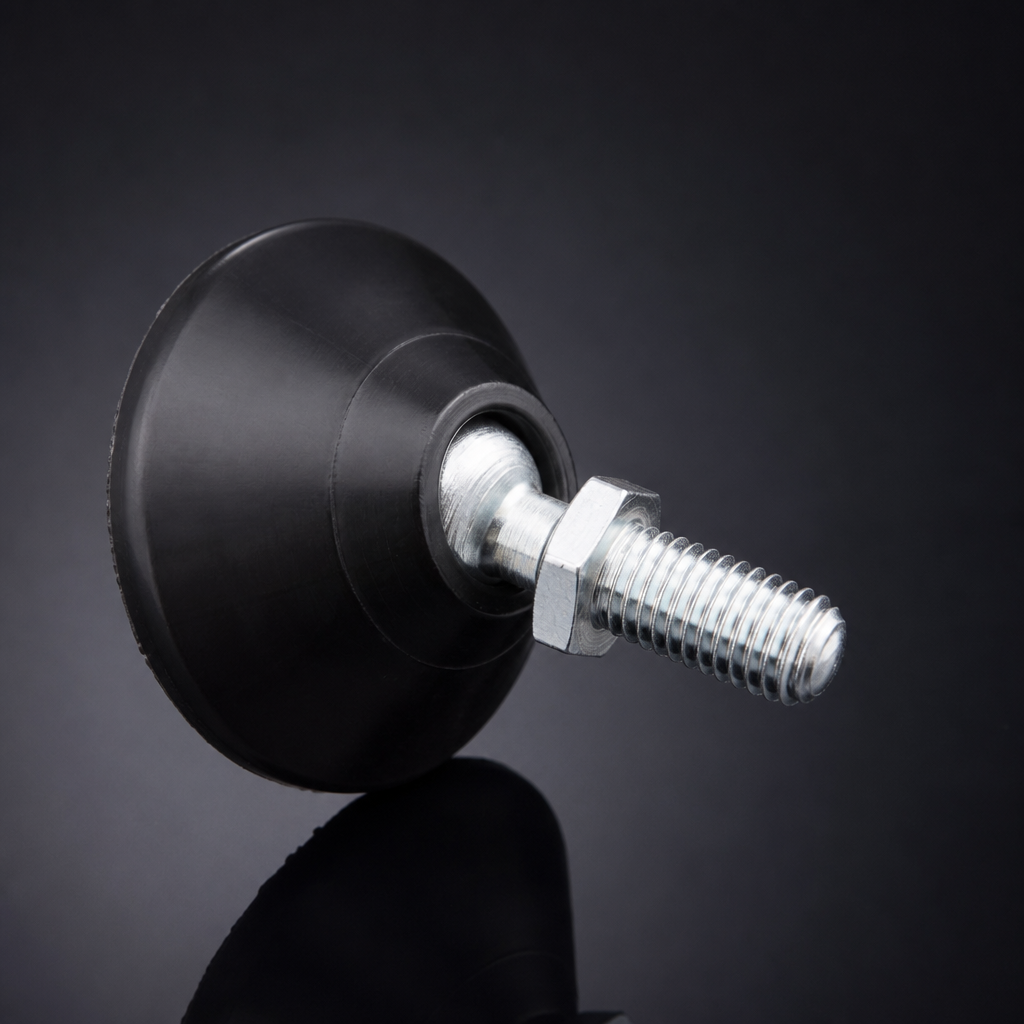

47.5mm Tilting Adjustable Levelling Foot – M6 x 25mm Thread

Reliable levelling solution for various applications.

This adjustable levelling foot features an M6 x 25mm zinc-plated thread, providing a secure and corrosion-resistant attachment. The base diameter of 47.5mm is made from durable polypropylene, offering stability and support. With a static load capacity of 100kg, this tilting foot is suitable for applications requiring a reliable levelling solution. The design allows for tilting adjustments, accommodating uneven surfaces effectively.

Key Features

• Thread Size: M6 – ensures compatibility with standard fittings.
• Thread Length: 25mm – suitable for secure attachment.
• Base Diameter: 47.5mm – provides a stable base for levelling.
• Foot Type: Tilting – allows for adjustments on uneven surfaces.
• Load Capacity: 100kg – supports substantial static loads.
• Base Material: Polypropylene – construction detail.
• Thread Material: Zinc Plated – resists corrosion.
• Base Height to Thread: 20mm – overall height specification.

Applications

• Furniture Levelling: Used to stabilise furniture on uneven floors.

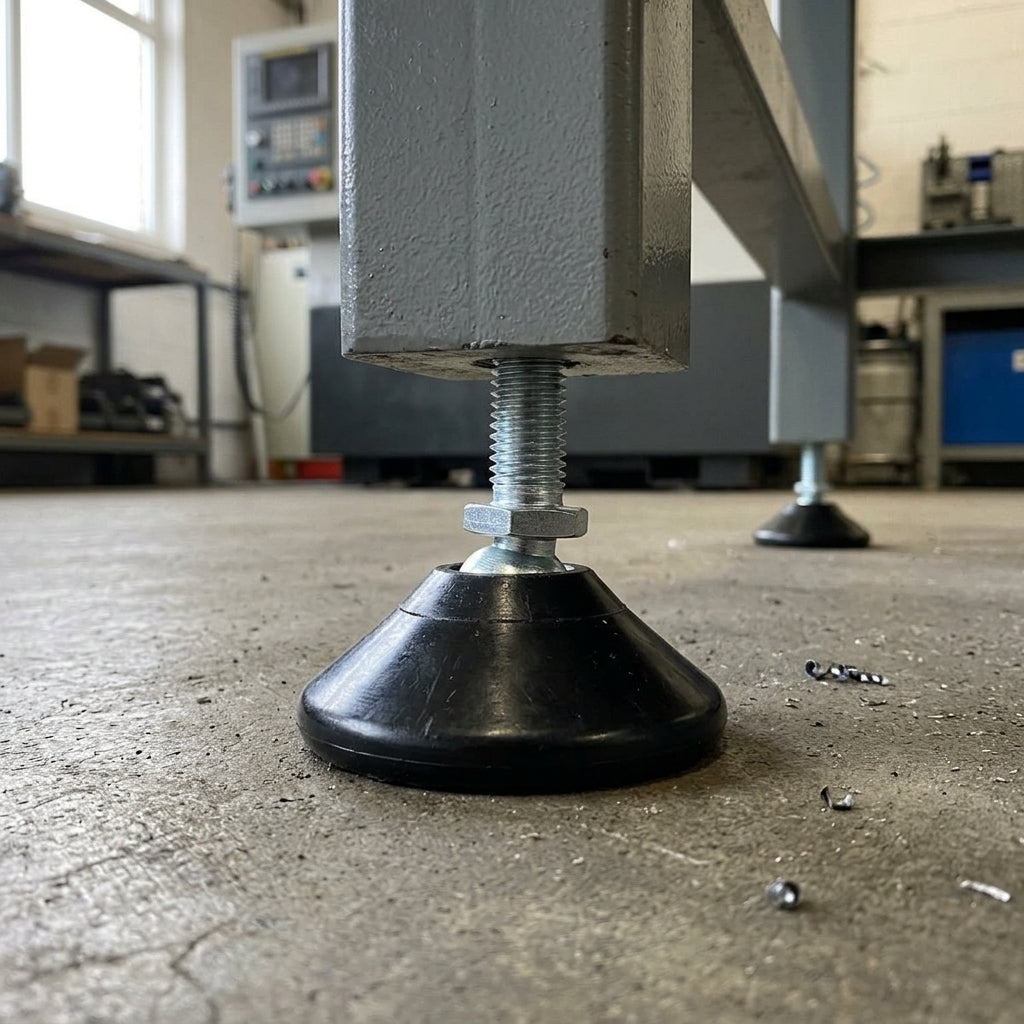

• Equipment Support: Ideal for supporting machinery and equipment.
• Display Stands: Perfect for ensuring stability in retail displays.
• Cabinet Adjustments: Useful for adjusting cabinets and shelving units.
