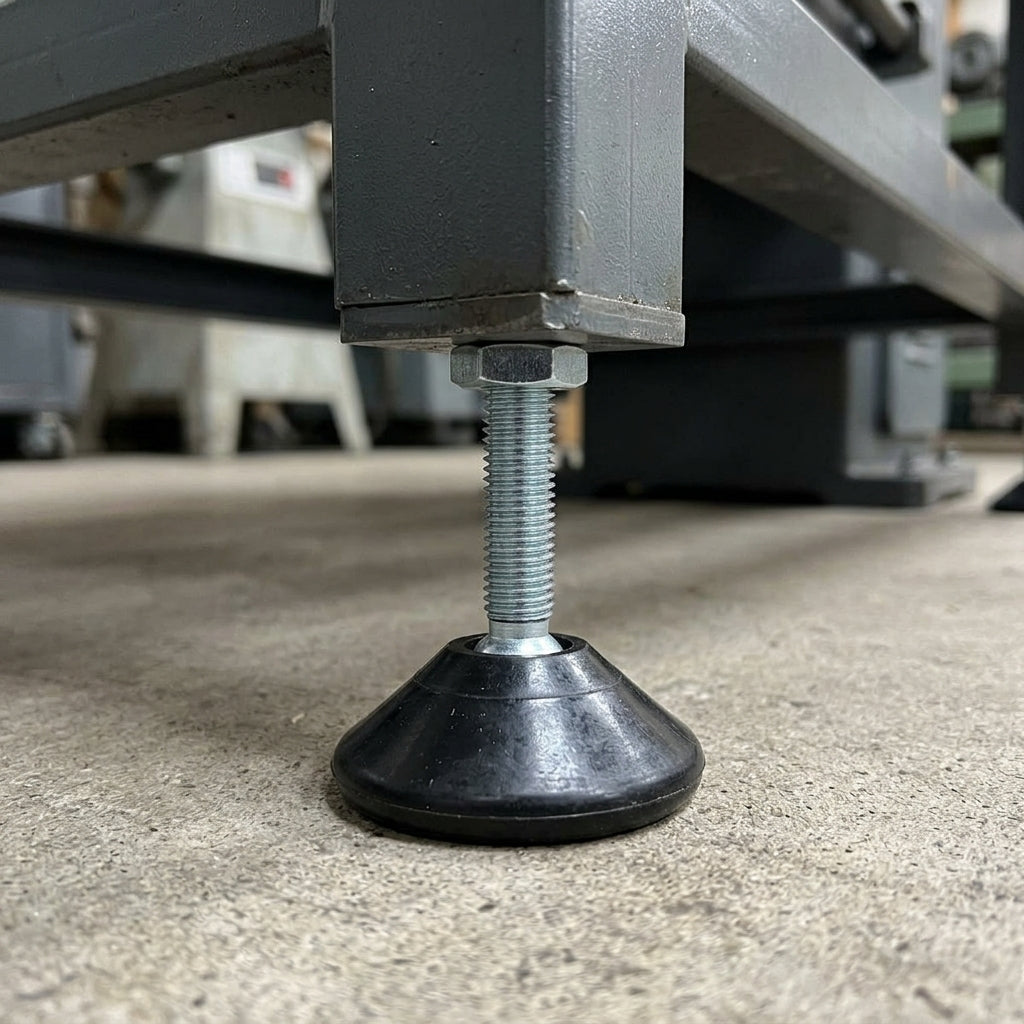

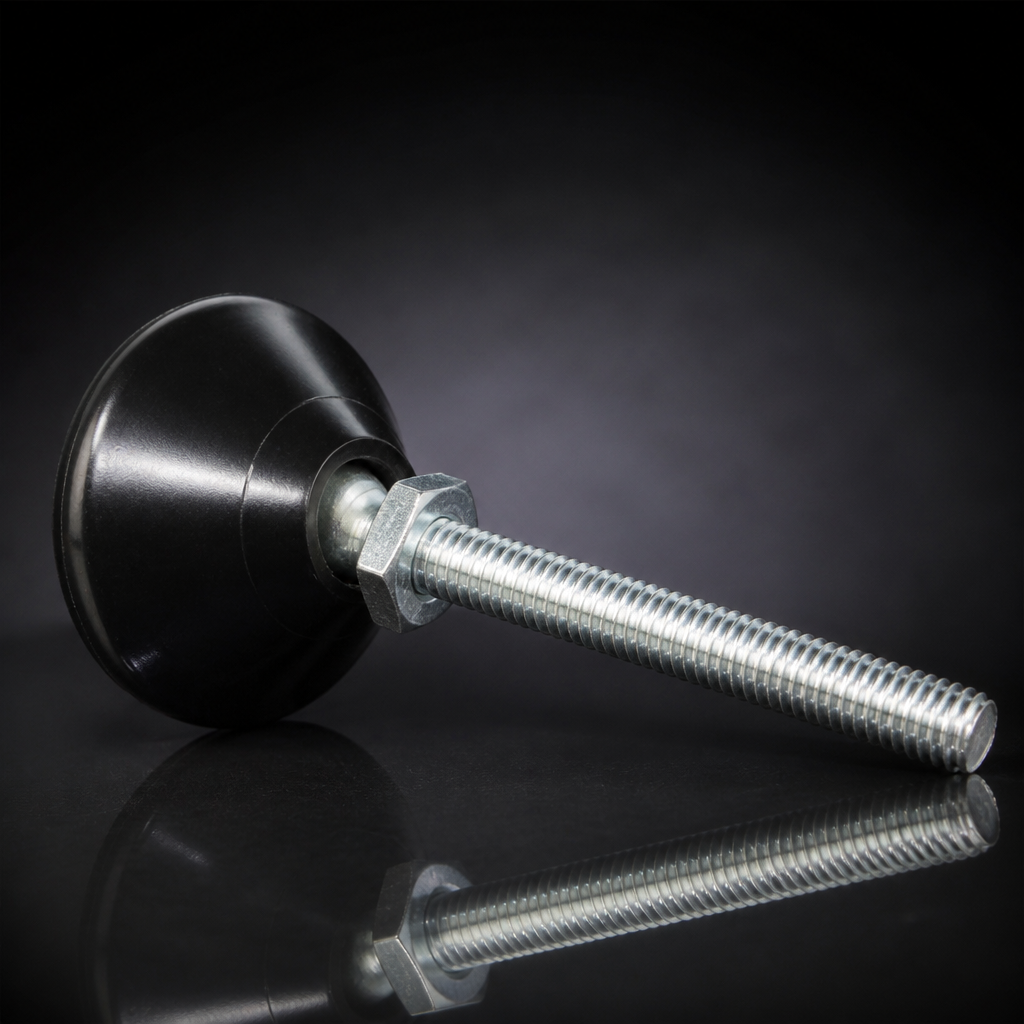

47.5mm Tilting Adjustable Levelling Foot – M12 x 75mm Thread

47.5mm Tilting Adjustable Levelling Foot for versatile stability.

This levelling foot is engineered for adaptability and strength, featuring an M12 thread size and a 75mm thread length. With a polypropylene base diameter of 47.5mm and a static load capacity of 250kg, it ensures reliable performance in diverse environments. The tilting design allows for adjustments on uneven surfaces, making it an essential component for various applications.

Key Features

• Thread Size: M12 – standard sizing for compatibility with common fixtures.
• Thread Length: 75mm – allows for extended reach and secure fitting in deeper sockets.
• Base Diameter: 47.5mm – provides a stable contact surface.
• Foot Type: Tilting – adapts to uneven surfaces for improved stability.
• Load Capacity: 250kg – supports substantial static loads.
• Thread Material: Zinc Plated – enhances durability and corrosion resistance.

Specifications

• Base Material: Polypropylene
• Static Load Capacity: 250kg
• Corrosion Resistance: Zinc-plated thread
• Adjustment Type: Tilting

Applications

• Furniture assembly
• Machinery support
• Industrial shelving
• Equipment stabilisation
• Workstation levelling
