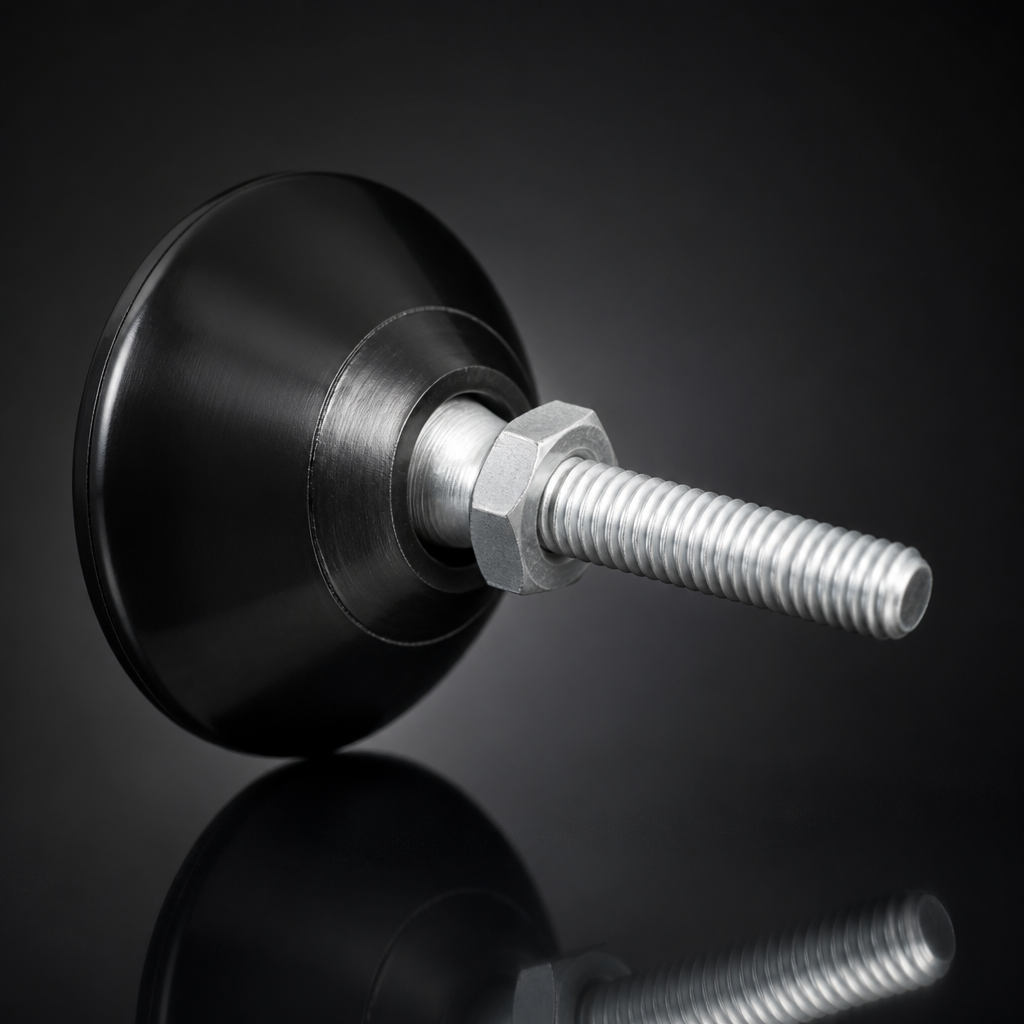

40mm Tilting Adjustable Levelling Foot – M10 x 50mm Thread

Adjustable levelling foot for versatile stability.

This adjustable levelling foot features a tilting base constructed from polypropylene, designed to accommodate uneven surfaces. The M10 zinc-plated thread extends 50mm, providing ample adjustment range to ensure stability. With a base diameter of 40mm, this levelling foot can support a static load of up to 100kg, making it suitable for various applications requiring precise height adjustment.

Key Features

• Thread Size: M10 – standard sizing for compatibility with a wide range of fittings.
• Thread Length: 50mm – allows for significant height adjustment.
• Base Diameter: 40mm – provides adequate contact area for stability.
• Foot Type: Tilting – compensates for slight surface irregularities.
• Load Capacity: 100kg – rated per foot for stable support.
• Thread Finish: Zinc Plated – offers protection against corrosion.
• Base Material: Polypropylene – durable construction for reliable use.

Applications

• Furniture Levelling: Commonly used to stabilise tables and chairs on uneven floors.

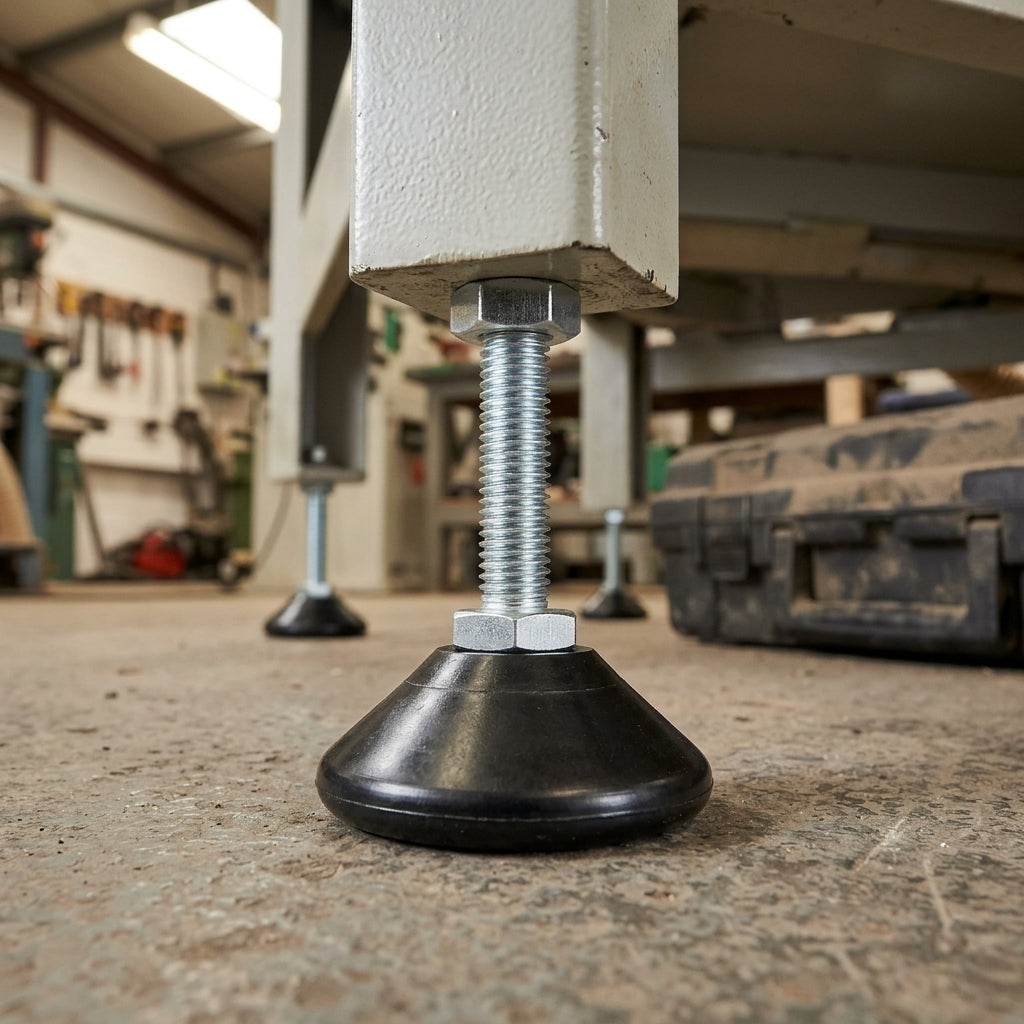

• Equipment Support: Ideal for machinery and equipment requiring precise height adjustments.
• Cabinet Stability: Ensures cabinets remain level on uneven surfaces.
• Appliance Leveling: Useful for ensuring appliances are stable and level.
