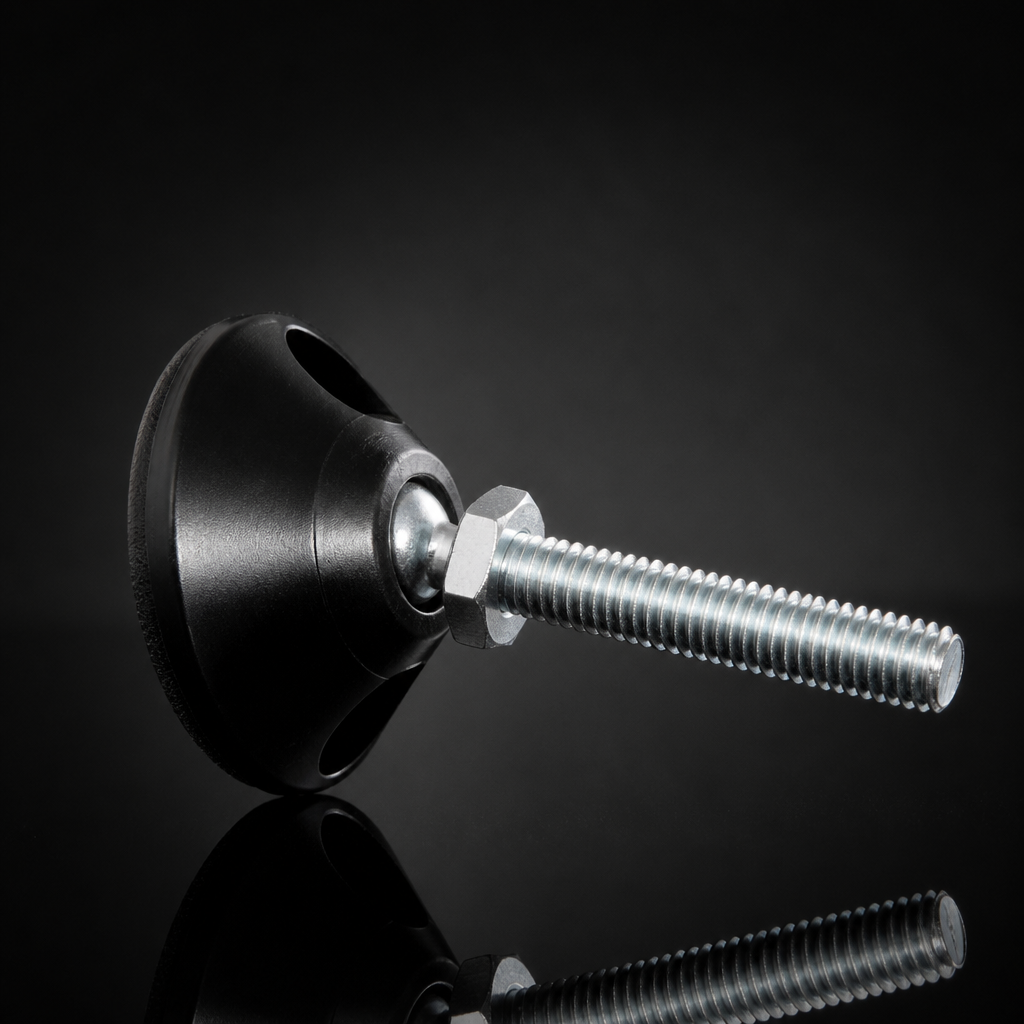

40mm Bolt-Down Tilting Adjustable Levelling Foot – M12 x 100mm

Reliable adjustable levelling solution

This bolt-down tilting adjustable levelling foot features an M12 thread size and a 100mm thread length, making it suitable for a variety of applications where precise levelling is required. The polypropylene base has a diameter of 40mm and provides stable support, while the tilting foot design allows for adjustments on uneven surfaces. This product is capable of supporting a static load of up to 100kg, making it an ideal choice for equipment and machinery that require stable positioning.

Key Features

• Thread Size: M12 – suitable for installations requiring this thread specification.
• Thread Length: 100mm – provides ample adjustment range for levelling.
• Base Diameter: 40mm – ensures stability and support.
• Foot Type: Tilting Feet – accommodates uneven surfaces through angled adjustment.
• Static Load: 100kg – supports a substantial load, ensuring reliable performance.
• Base Material: Polypropylene – used for its stability in the base construction.
• Thread Material: Zinc Plated – offers corrosion resistance for longevity.

Specifications

• Thread Size: M12
• Thread Length: 100mm
• Base Diameter: 40mm
• Static Load: 100kg
• Base Material: Polypropylene
• Thread Material: Zinc Plated

Applications

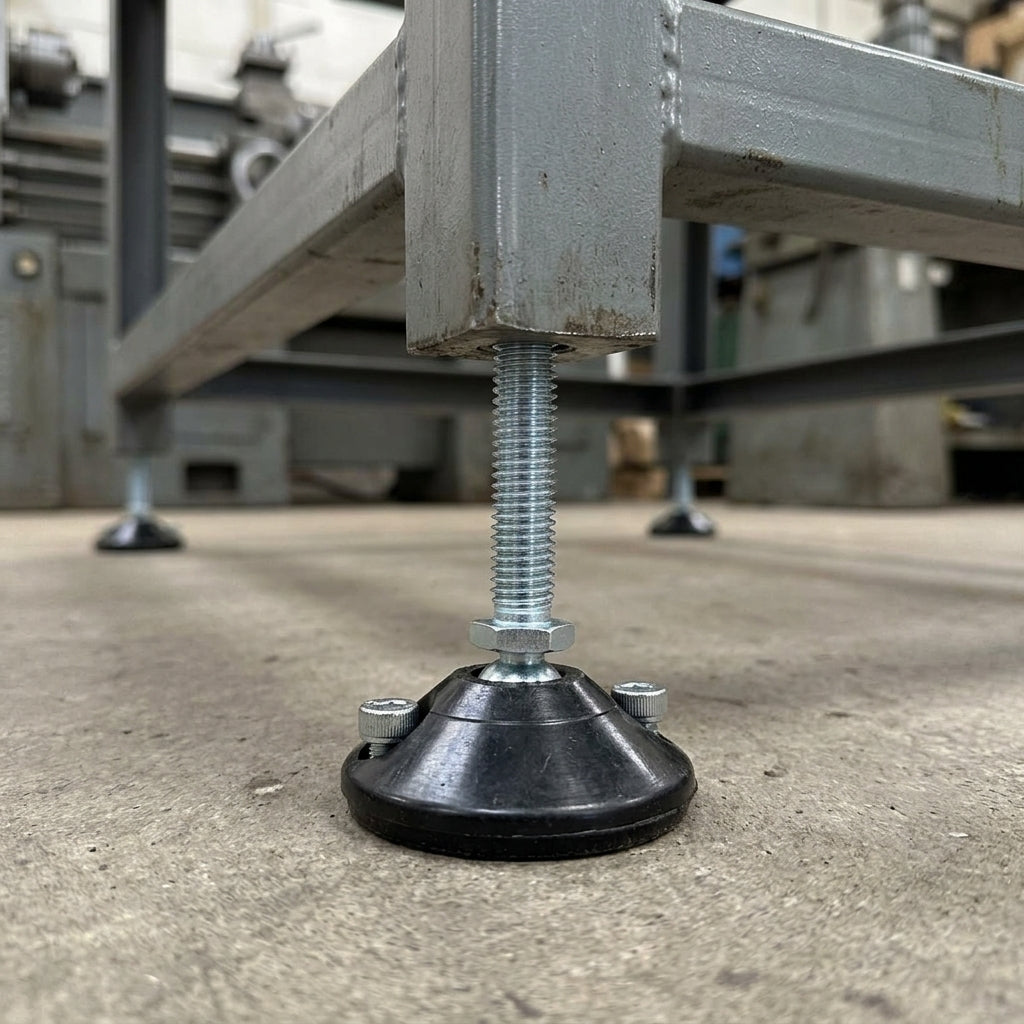

• Machinery levelling
• Equipment support
• Furniture stability
• Industrial applications
• Construction setups
