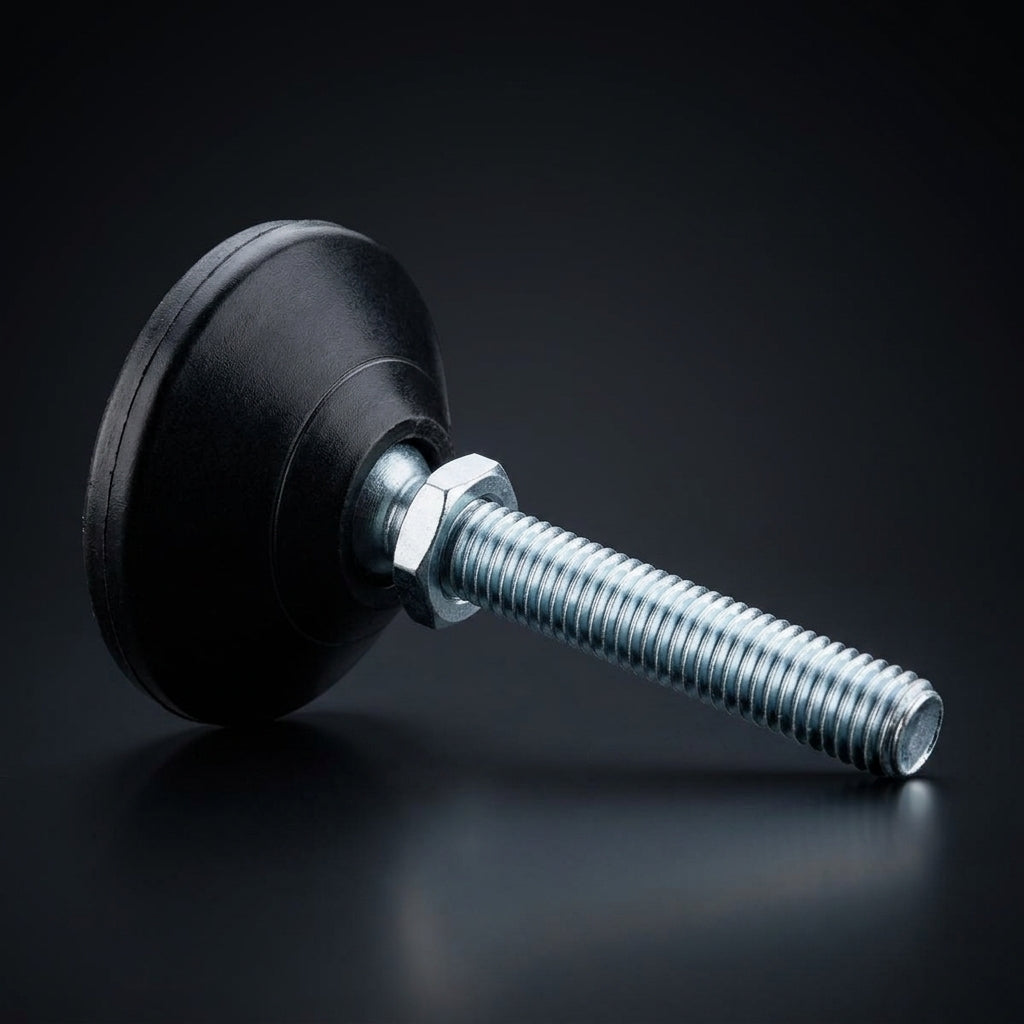

40mm Bolt-Down Adjustable Levelling Foot – M10 x 37.5mm Thread

Reliable levelling solution for machinery and furniture.

The 40mm Bolt-Down Tilting Adjustable Levelling Foot features an M10 x 37.5mm zinc-plated thread and a polypropylene base, making it suitable for applications requiring precise height adjustment and stability. The tilting foot design allows for adaptability on uneven surfaces, while the static load capacity of up to 100kg ensures reliability under pressure. This component is commonly used in machinery, furniture, and equipment installations where secure and level positioning is critical.

Key Features

• Thread Size: M10 – compatible with standard M10 fittings.
• Thread Length: 37.5mm – allows for ample adjustment range.
• Base Diameter: 40mm – provides a stable foundation.
• Foot Type: Tilting – accommodates uneven surfaces.
• Static Load Capacity: 100kg – supports substantial weight.
• Base Material: Polypropylene – durable construction material.
• Thread Finish: Zinc Plated – resists corrosion.
• Base Height to Thread: 20mm – contributes to the overall height adjustment.

Applications

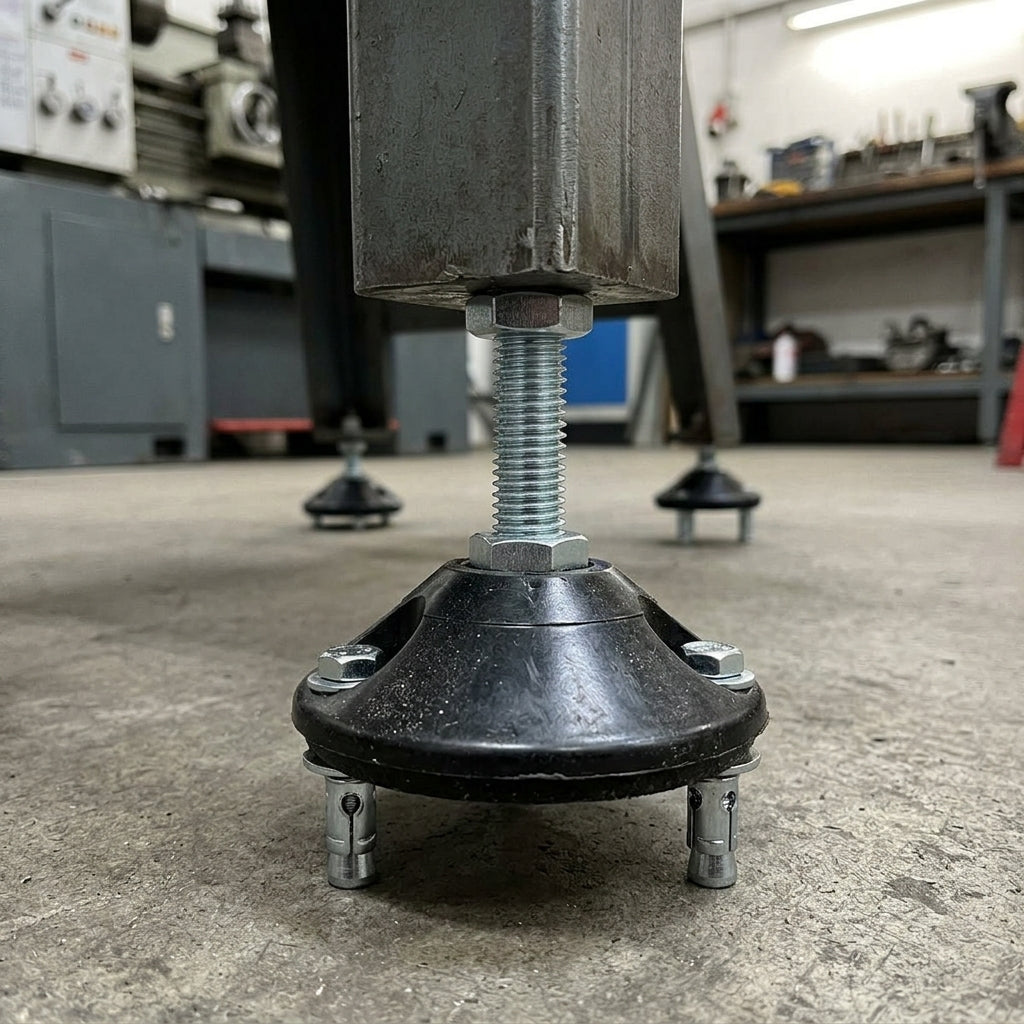

• Machinery installations
• Furniture assembly
• Equipment support
• Industrial applications
• Home improvement projects
