306mm Directional Lock Castor - 450kg Load Capacity

High-performance directional lock castor

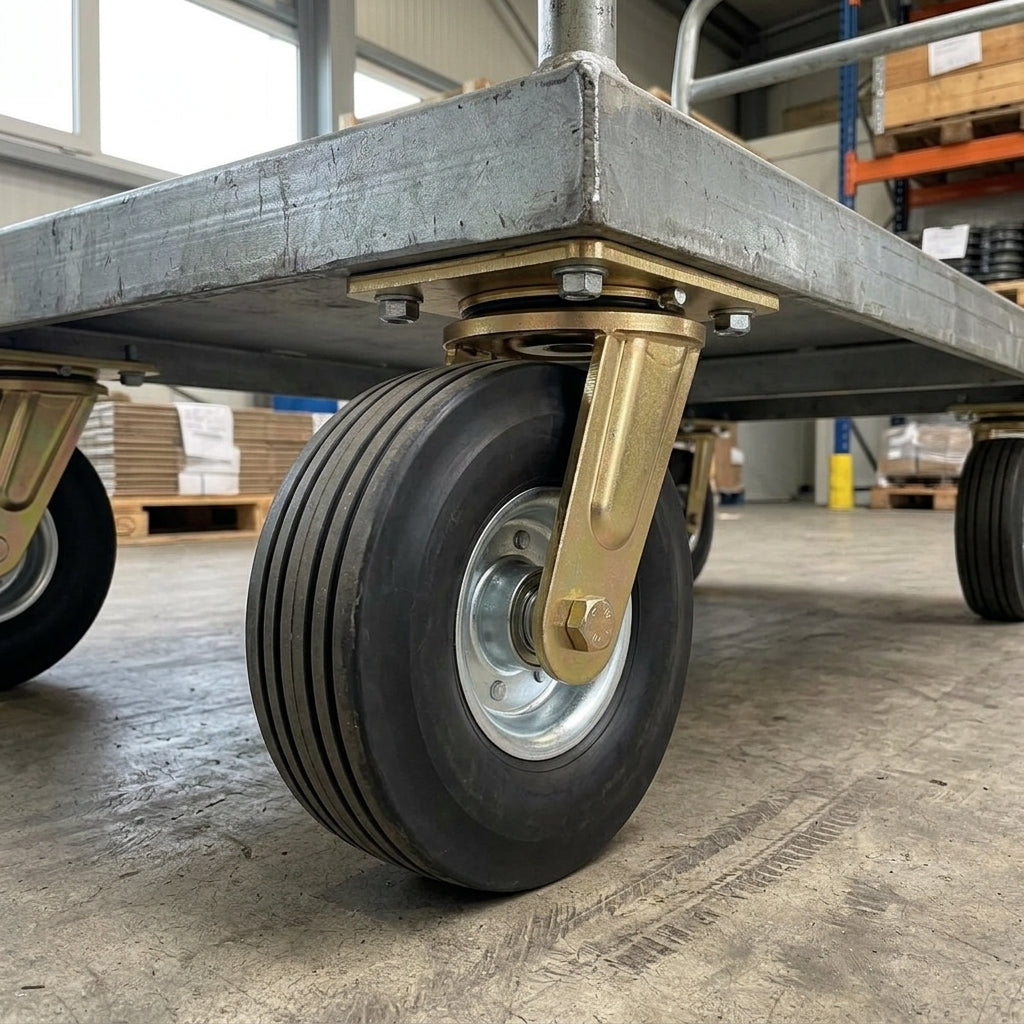

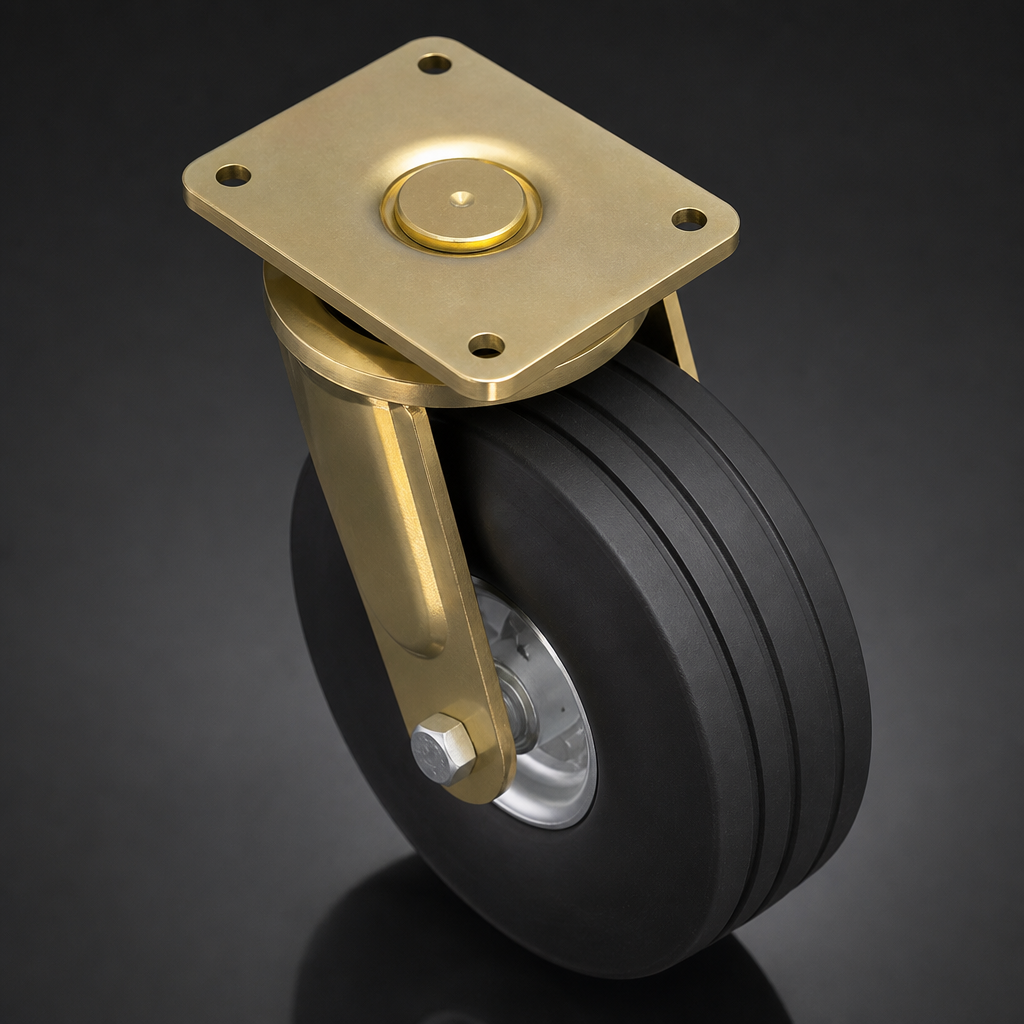

This directional lock castor features an elastic rubber wheel with a ribbed tread, providing enhanced grip and stability. The castor is equipped with a ball bearing for smooth operation and a load capacity of 450kg. It is important to check the bolt hole size and plate dimensions to ensure compatibility with your equipment.

Key Features

• Wheel Diameter: 306mm – check against the existing wheel size.
• Tread Width: 105mm – matches the required width for the application.
• Load Capacity: 450kg – maximum load rating per wheel.
• Bolt Hole Size: 14mm – must match the bolt size.
• Plate Length: 200mm – overall length of the mounting plate.
• Plate Width: 160mm – overall width of the mounting plate.
• Plate Hole Centres Length: 160mm – distance between hole centres.
• Plate Hole Centres Width: 120mm – distance between hole centres.

Applications

• Industrial trolleys: Used to provide directional stability and load support.
• Warehouse carts: Fitted for easy maneuverability and heavy loads.
• Material handling equipment: Ideal for enhancing mobility in various applications.
