125mm Directional Brake Castor – 110kg Load Capacity

High-performance directional brake castor for versatile applications.

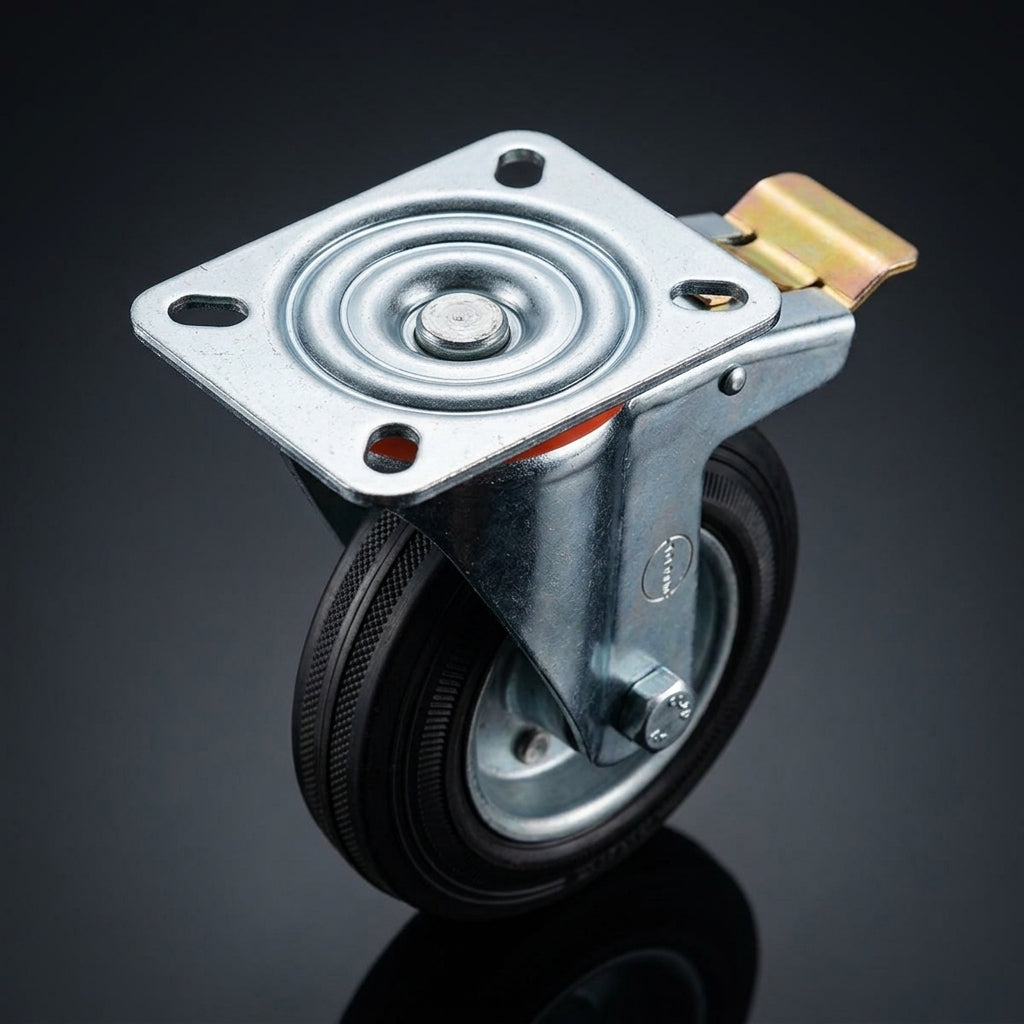

This directional brake castor is designed for applications requiring controlled movement and secure positioning. Featuring a black rubber wheel with a ball journal bearing, it offers a load capacity of 110kg per castor. Ensure compatibility by checking the plate dimensions and hole centres against your existing setup.

Key Features

• Wheel Diameter: 125mm – check against the existing wheel size.
• Tread Width: 37.5mm – matches the contact surface width.
• Load Capacity: 110kg – maximum load rating per wheel.
• Plate Length: 100mm – overall length of the mounting plate.
• Plate Width: 85mm – overall width of the mounting plate.
• Plate Hole Centres Width: 60/80mm – centre-to-centre distance of the mounting holes.
• Plate Hole Diameter: 10mm – must match the bolt size.
• Total Castor Height: 157mm – overall height from base to top of the plate.

Applications

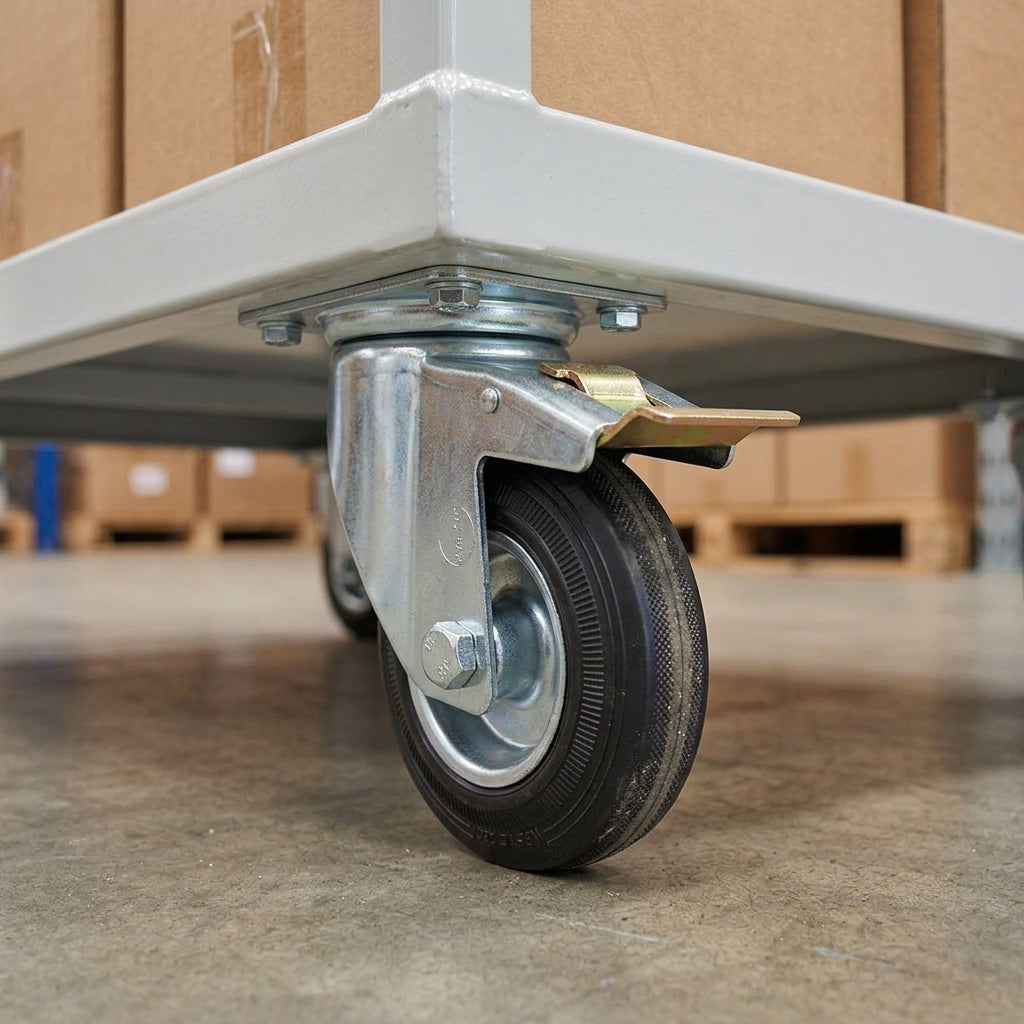

• Industrial Trolleys: Used for controlled movement and positioning.
• Workbenches: Provides stability and mobility for heavy work surfaces.
• Storage Racks: Facilitates easy movement of storage solutions.
• Medical Equipment: Ensures secure positioning in healthcare settings.
• Retail Displays: Allows for flexible arrangement of display units.
