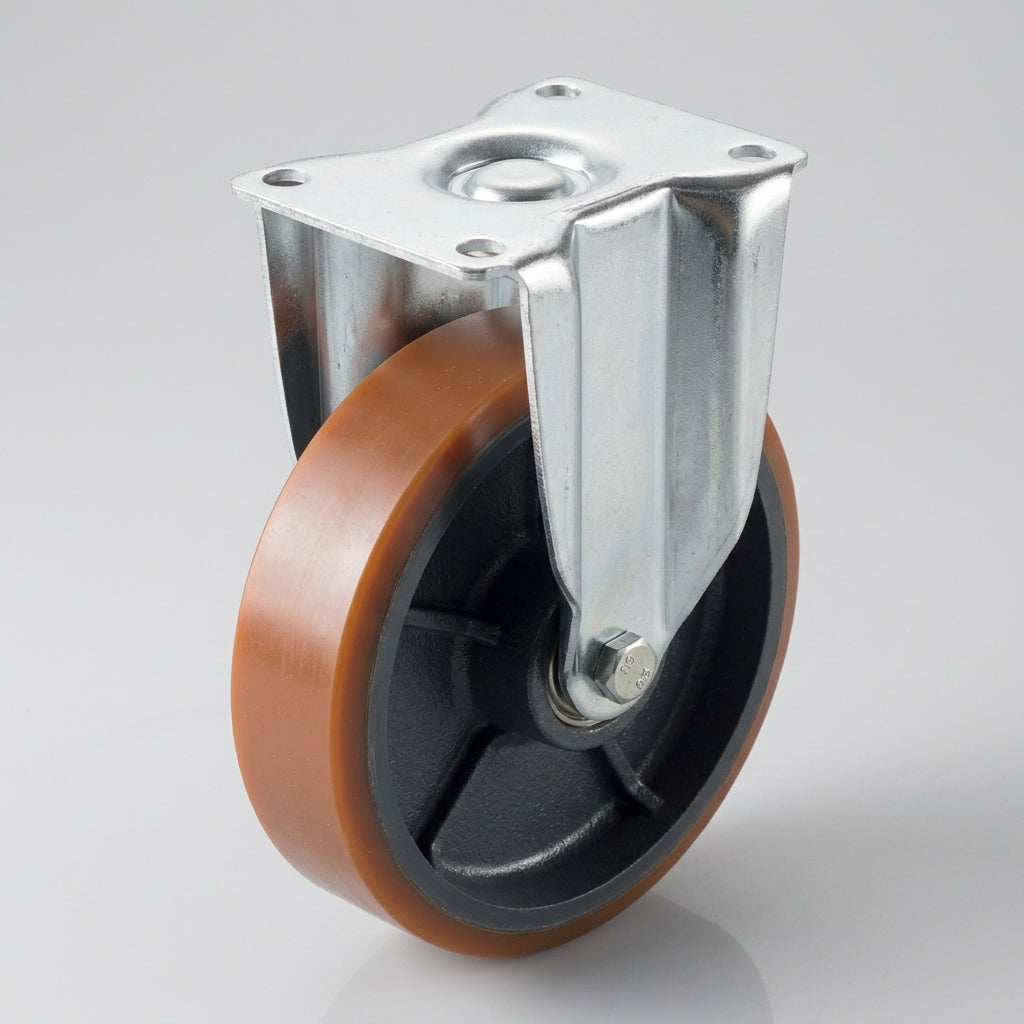

100mm Heavy Duty Fixed Castor - 450kg Load Capacity

Robust heavy-duty fixed castor designed for demanding applications.

This heavy-duty fixed castor features a durable polyurethane wheel mounted on a strong cast iron core, ensuring it can handle substantial loads of up to 450kg. Its design prioritises smooth operation, making it an excellent choice for various industrial uses.

Key Features

• Wheel Diameter: 100mm – check against the existing wheel size.
• Tread Width: 50mm – width of the wheel tread.
• Load Capacity: 450kg – maximum load rating per wheel.
• Plate Length: 135mm – overall length of the mounting plate.
• Plate Width: 110mm – overall width of the mounting plate.
• Plate Hole Centres Length: 105mm – distance between the lengthwise mounting holes.
• Plate Hole Centres Width: 80mm – distance between the widthwise mounting holes.
• Total Castor Height: 137mm – overall height from base to top of the mounting plate.

Specifications

• Wheel Material: Polyurethane
• Core Material: Cast Iron
• Mounting Type: Fixed
• Ball Bearing: Yes

Applications

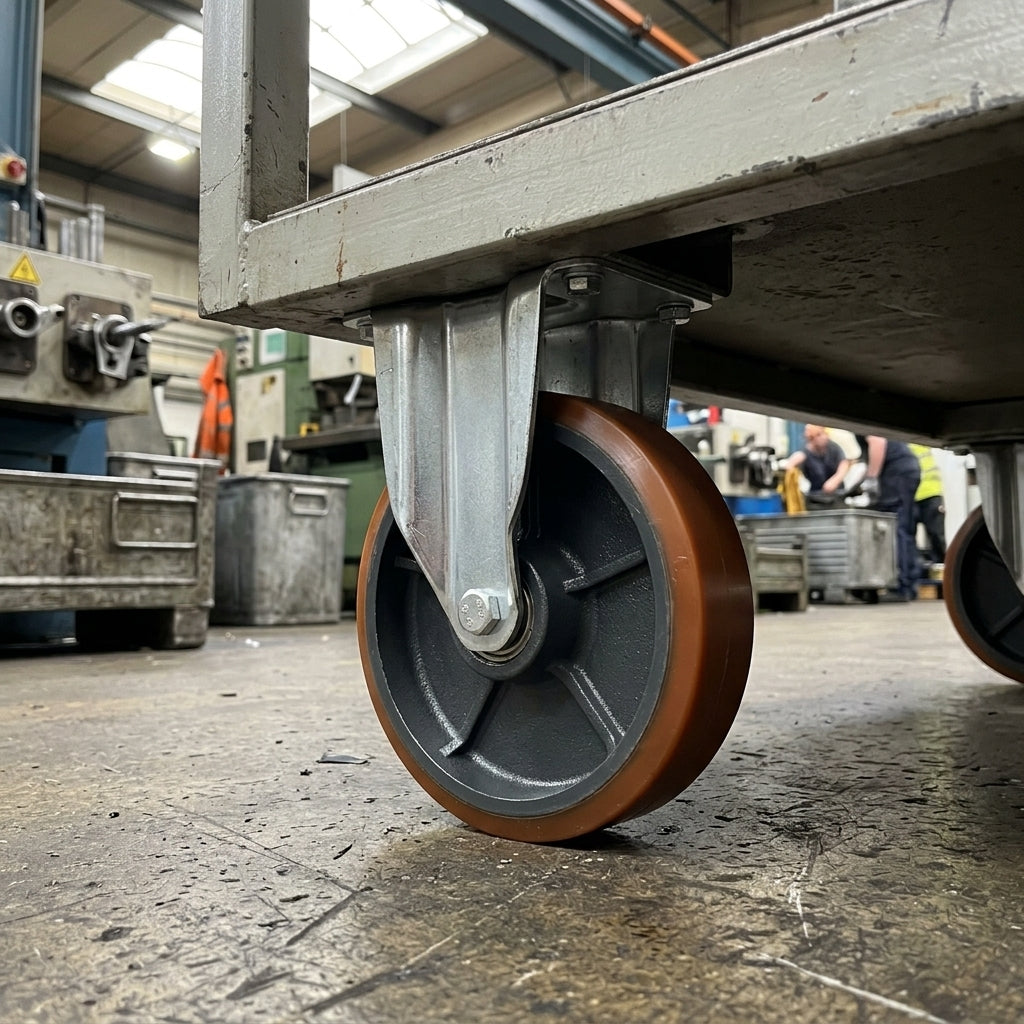

• Industrial equipment
• Heavy-duty carts
• Warehouse trolleys
• Material handling systems
