Levelling & Adjustment Hardware

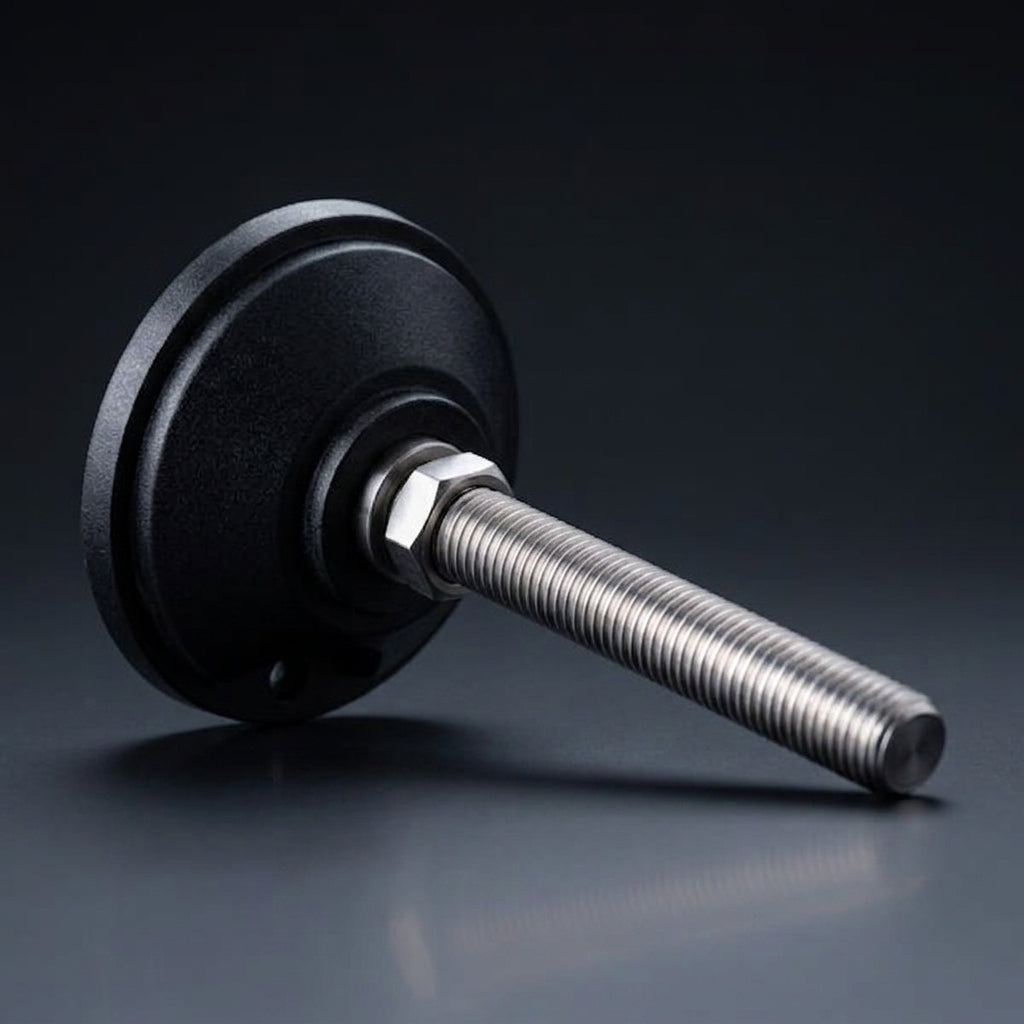

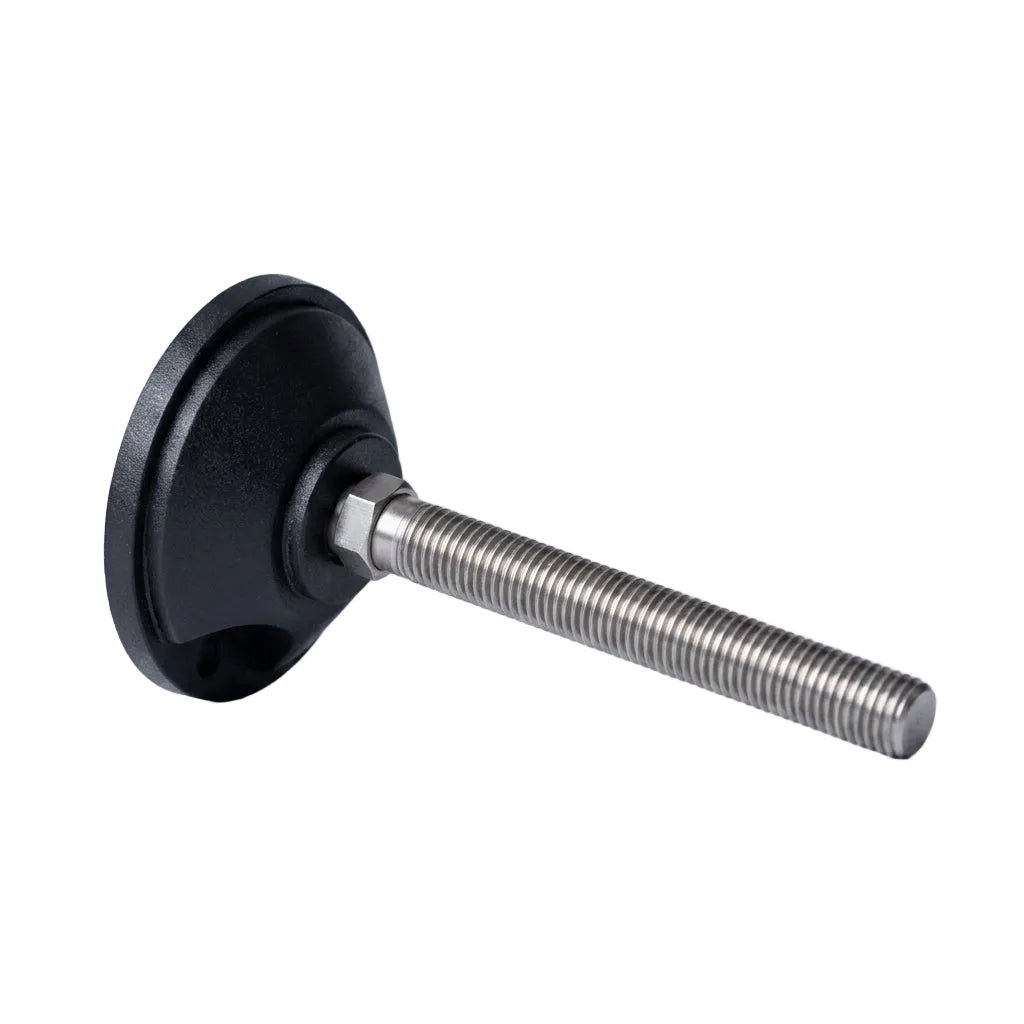

100mm Levelling Foot — Black Nylon
M12 x 150mm Thread | Static Load: 1,000 kg | Stainless Steel Stem
What This Product Is & What It Does

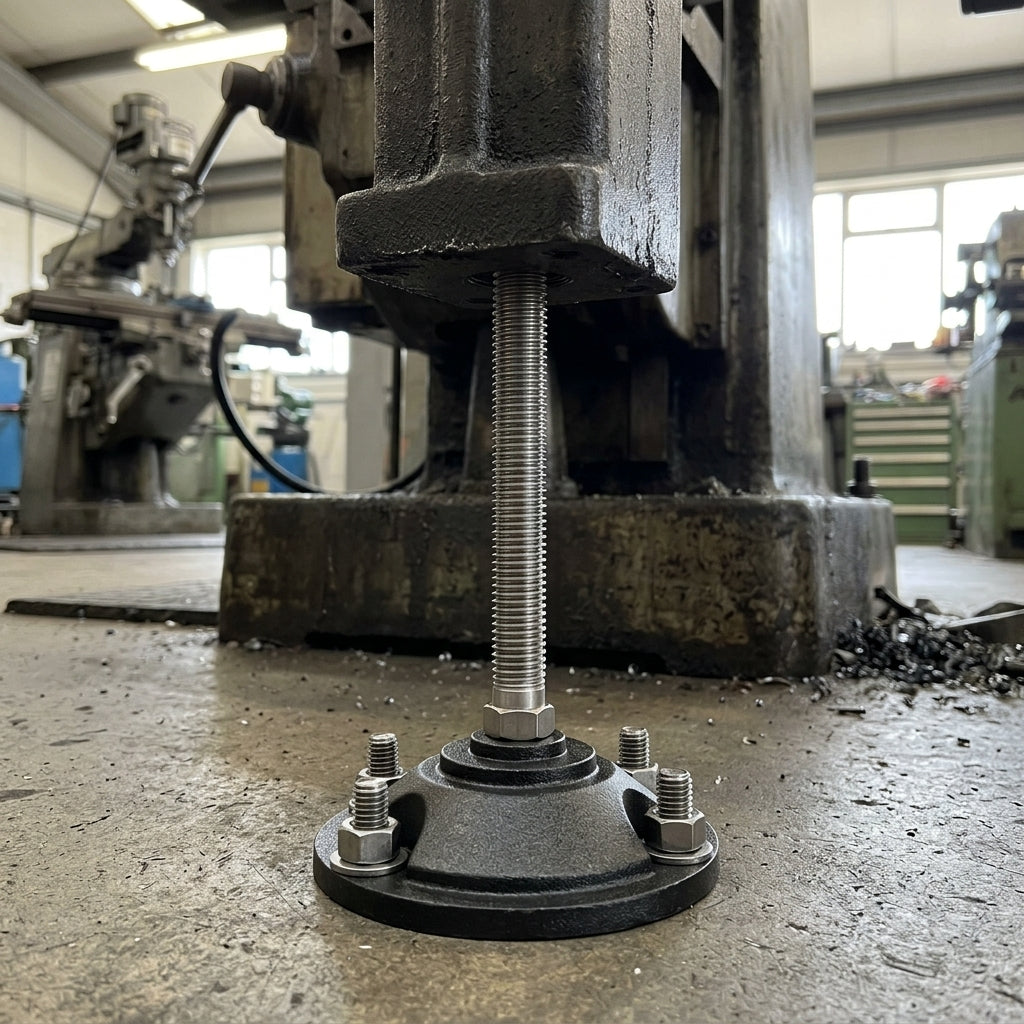

This is a heavy-duty, bolt-down levelling foot designed for precise height adjustment and stable load-bearing in demanding industrial and commercial environments. Featuring a 100mm conical black nylon base and a stainless steel M12 threaded stem at 150mm length, it is engineered to support static loads of up to 1,000 kg. It is used to level, stabilise, and fine-tune the height of machinery, workbenches, storage racking, production equipment, and display structures — particularly where floor surfaces are uneven or where vibration isolation is required.
Engineered for Stability
When precision matters and load capacity cannot be compromised, this levelling foot delivers. The conical nylon base distributes weight evenly across a 100mm footprint, resisting lateral movement and providing a firm, non-slip contact point on concrete, tile, or timber floors. The stainless steel threaded stem offers smooth, consistent adjustment across its full 150mm length, allowing operators to achieve exact levelling with minimal effort.
The bolt-down configuration ensures the foot remains permanently fixed in position once set — eliminating drift, creep, or accidental displacement under sustained load. With a rated static capacity of 1,000 kg, this levelling foot is a dependable solution for heavy industrial applications where safety and precision are non-negotiable.
Technical Specifications
| Specification | Detail |
|---|---|
| Thread Size (D1) | M12 |
| Thread Length (L) | 150 mm |
| Thread Material | Stainless Steel |
| Thread Finish | Stainless Steel |
| Base Size (D2) | 100 mm |
| Base Shape | Conical |
| Base Material | Black Nylon |
| Colour | Black |
| Adjustable Foot Height (H) | 192 mm |
| Static Load Capacity | 1,000 kg |
| Fixing Type | Bolt-Down |
Key Features at a Glance
| ✓ | 1,000 kg static load rating — suitable for heavy machinery and industrial equipment |
| ✓ | M12 stainless steel threaded stem — corrosion-resistant and compatible with standard M12 fittings |
| ✓ | 150mm thread length — generous adjustment range for uneven or sloped floors |
| ✓ | 100mm conical nylon base — wide footprint for superior load distribution and floor protection |
| ✓ | Bolt-down fixing — permanently secured to prevent movement once positioned |
| ✓ | 192mm maximum adjustable height — accommodates significant floor level variation |
Typical Applications
This levelling foot is widely used across manufacturing, warehousing, retail, and laboratory environments. Common applications include:
Frequently Asked Questions
What is the maximum load this levelling foot can support?
This levelling foot is rated to a static load capacity of 1,000 kg. This rating applies to a stationary, non-dynamic load. It is not intended for use as a castor or rolling application. Always ensure the total load is distributed across all feet in use.
What thread size and length does this levelling foot use?
The threaded stem is M12 in diameter with a length of 150mm. It is essential that your equipment or frame uses a matching M12 threaded insert or nut. The 150mm length provides a generous range of height adjustment, accommodating significant floor level variation.
What is the maximum adjustable height of this foot?
The total adjustable foot height (H) is 192mm. This is the overall height from the base of the nylon pad to the top of the threaded stem when fully extended, giving you a practical range for levelling equipment on uneven or sloped surfaces.
What materials are used in the construction of this levelling foot?
The base is manufactured from black nylon, which is tough, lightweight, and resistant to impact and abrasion. The threaded stem is made from stainless steel, providing excellent resistance to rust and corrosion, making it suitable for environments where moisture or humidity may be present.
How is this levelling foot installed?
The foot is installed by threading the stainless steel stem into a pre-existing M12 threaded hole or insert on the underside of your equipment or frame. Once positioned, the bolt-down base is secured to the floor using appropriate fixings through the base plate, preventing any lateral movement. Height is then adjusted by rotating the stem up or down to achieve the desired level.
Is this levelling foot suitable for use on all floor types?
Yes. The 100mm conical nylon base is suitable for use on concrete, screed, tile, timber, and other hard floor surfaces. The wide base diameter distributes the load effectively, reducing point pressure on the floor. For best results on polished or sensitive flooring, ensure the base is clean and free from debris before installation.
100mm Levelling Foot | Black Nylon Base | M12 x 150mm Stainless Steel Thread | 1,000 kg Static Load
