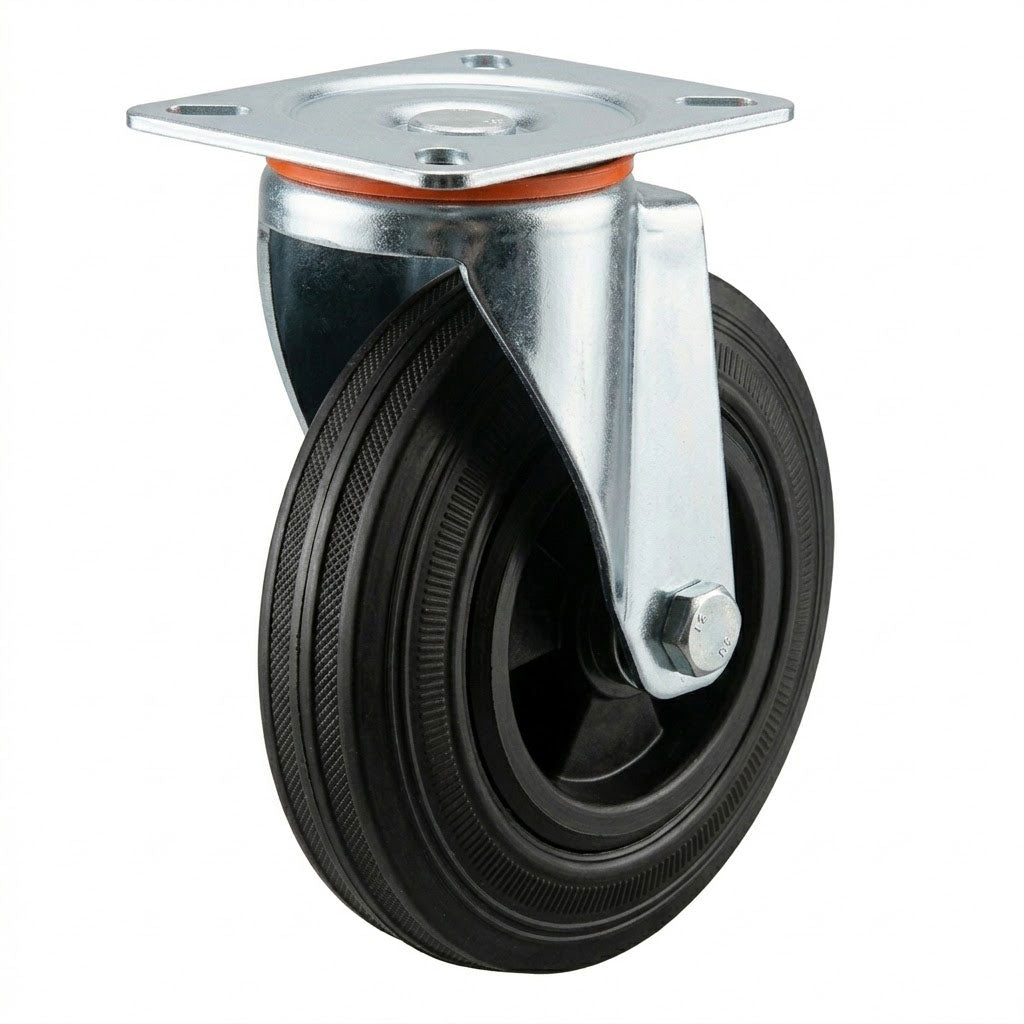

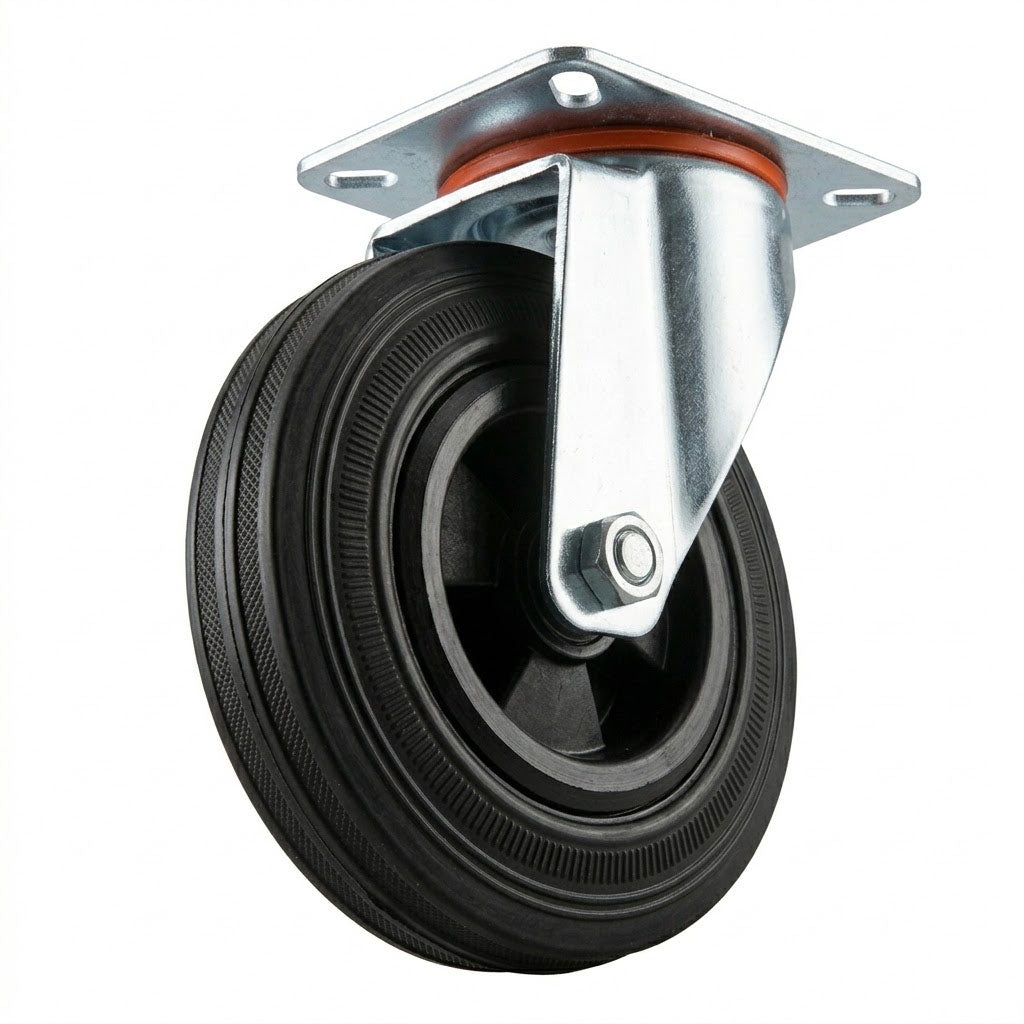

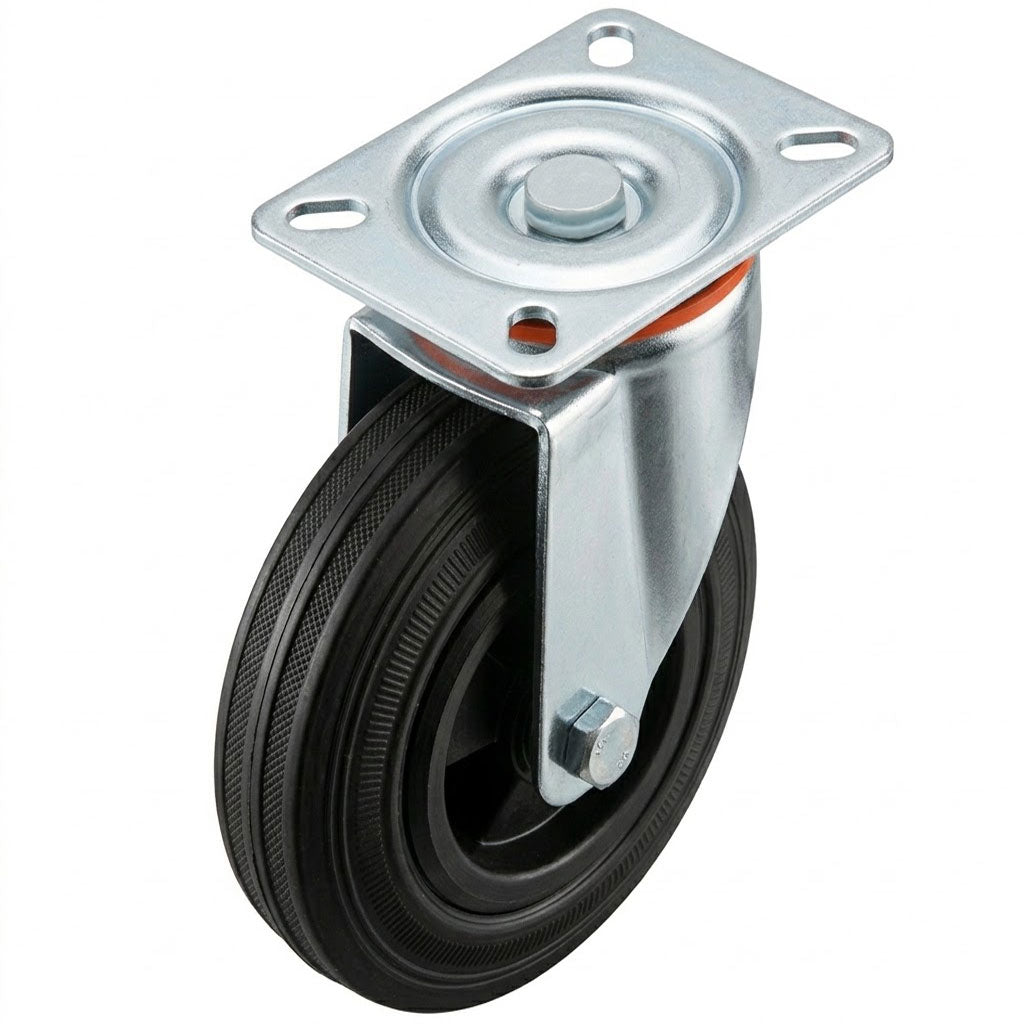

Pressed Steel Swivel Castors with Black Rubber on Polypropylene Wheel — 80mm to 150mm
Top Plate Fixing | Ball Journal Bearing | Four Sizes Available | UK Stock

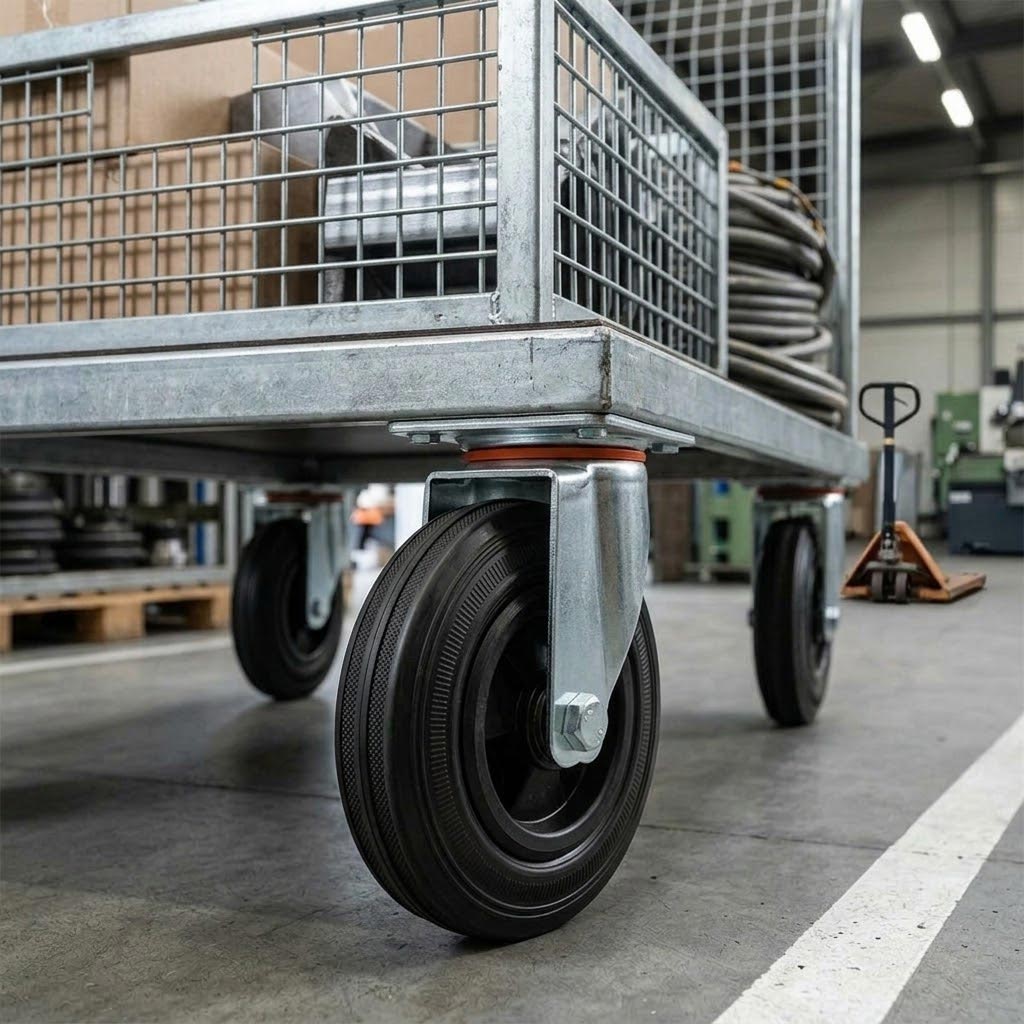

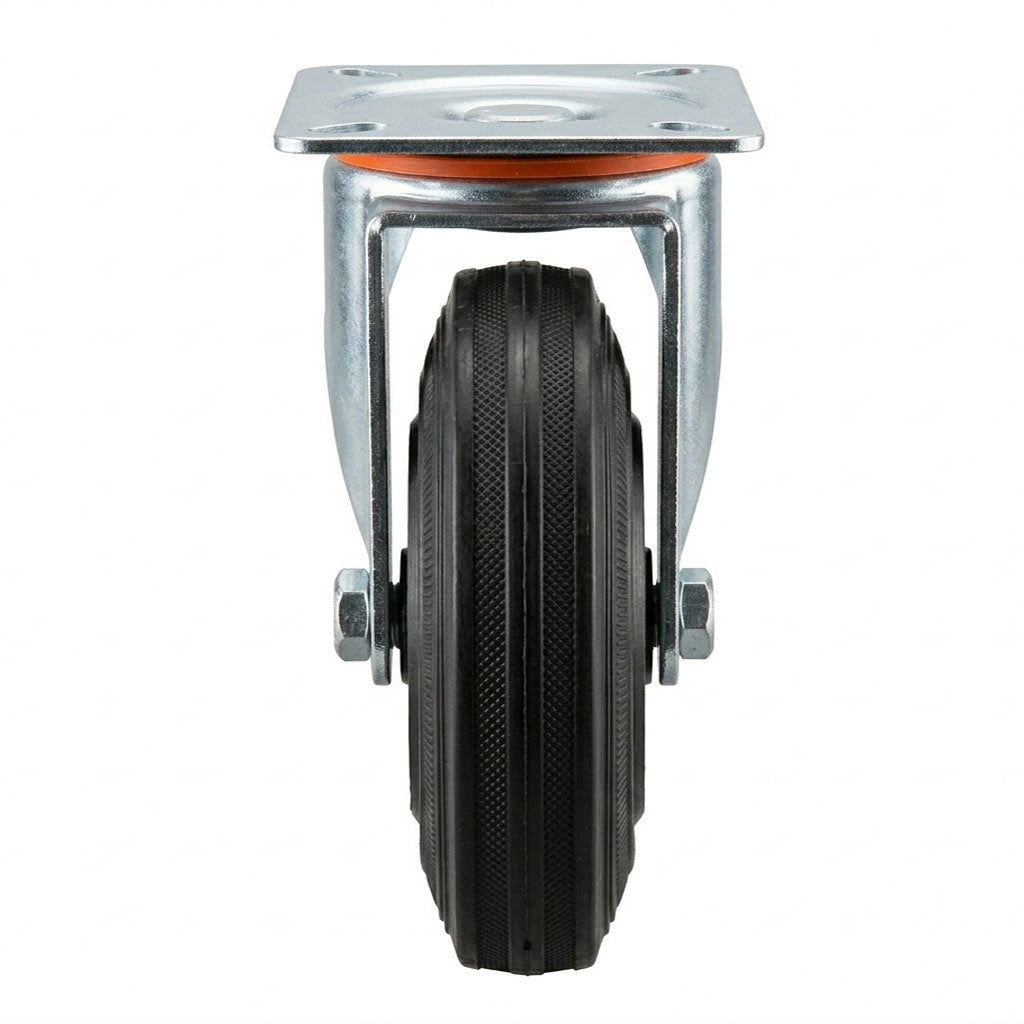

These pressed steel swivel castors are engineered for reliable, smooth-rolling mobility across a wide range of commercial, industrial, and domestic applications. Fitted with a black rubber tread bonded to a polypropylene centre wheel, they deliver quiet, floor-friendly movement with excellent grip on hard and semi-hard surfaces. The swivel head — constructed from pressed steel with a white zinc-plated finish — incorporates a double ball bearing race and a plastic dust guard for long-term performance. Mounting is via a standard four-hole top plate, making installation straightforward on trolleys, workbenches, storage units, display stands, and light industrial equipment. Available in four wheel diameters from 80mm to 150mm, with individual load ratings from 60 kg to 130 kg per castor.
Available in Multiple Castor Wheel Sizes & Types
Explore this castor wheel's different types, and also Available in multiple sizes. Choose the options below.
Compare All Options — Full Specifications at a Glance
| Specification | 80 mm | 100 mm | 125 mm | 150 mm |
|---|---|---|---|---|
| Wheel Diameter (mm) | 80 | 100 | 125 | 150 |
| Total Castor Height (mm) | 106 | 127 | 157 | 181 |
| Load Capacity per Castor (kg) | 60 | 75 | 110 | 130 |
| Max Load — Set of 4 (kg) | 180 | 225 | 330 | 390 |
| Tread Width (mm) | 25 | 30 | 37.5 | 44 |
| Tread Hardness (Shore A) | 85 | 85 | 85 | 85 |
| Wheel Material | Rubber on Polypropylene | Rubber on Polypropylene | Rubber on Polypropylene | Rubber on Polypropylene |
| Wheel Colour | Black | Black | Black | Black |
| Bearing Type | Ball Journal | Ball Journal | Ball Journal | Ball Journal |
| Castor Type | Swivel — Top Plate | Swivel — Top Plate | Swivel — Top Plate | Swivel — Top Plate |
| Plate Length (mm) | 100 | 100 | 100 | 100 |
| Plate Width (mm) | 85 | 85 | 85 | 85 |
| Hole Centres — Length (mm) | 80 | 80 | 80 | 80 |
| Hole Centres — Width (mm) | 60 | 60 | 60 | 60 |
| Plate Hole Diameter (mm) | 10 | 10 | 10 | 10 |
| Number of Fixing Holes | 4 | 4 | 4 | 4 |
| Bracket Finish | White Zinc Plated | White Zinc Plated | White Zinc Plated | White Zinc Plated |
* Load ratings are per individual castor. To calculate the required load rating per castor, divide the total equipment weight (including contents) by the number of castors fitted — typically four. Always apply an appropriate safety margin to account for dynamic loads and uneven weight distribution.
Detailed Specifications and Applications by Size

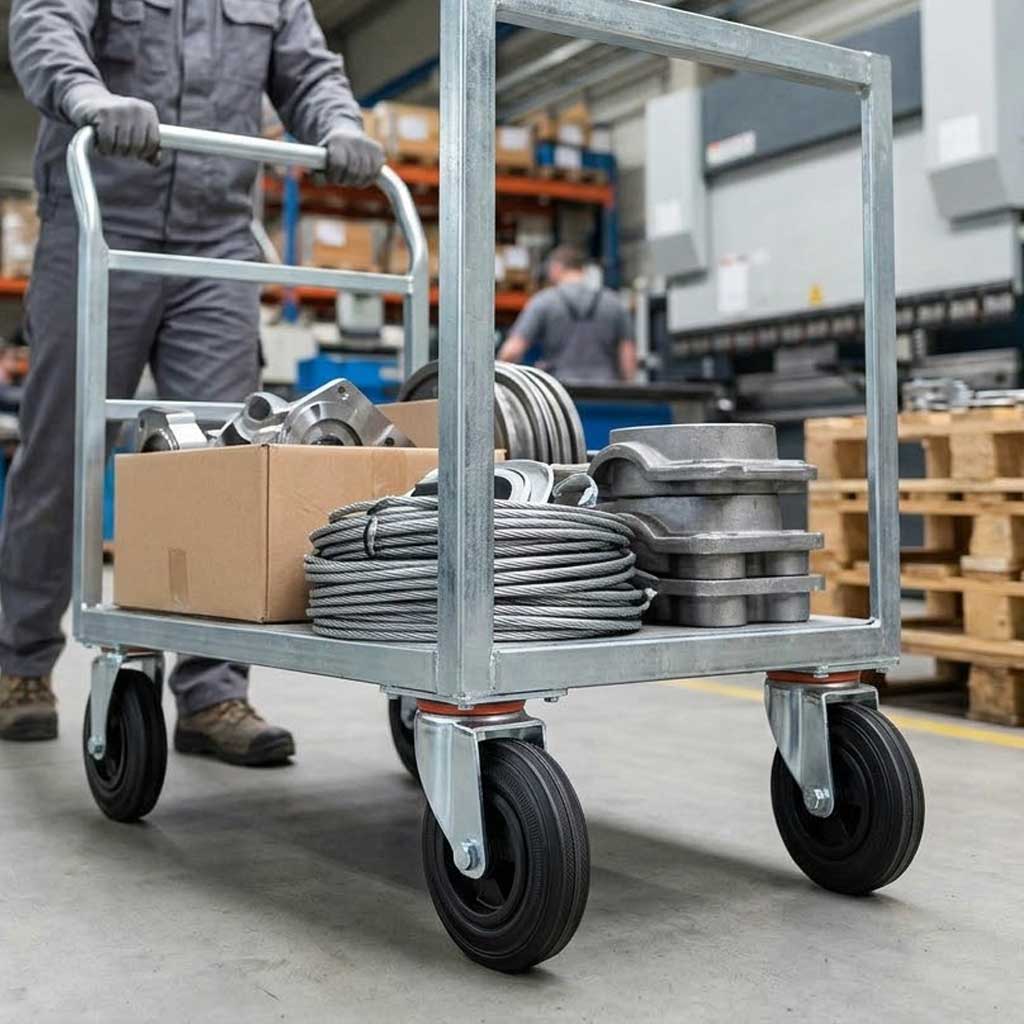

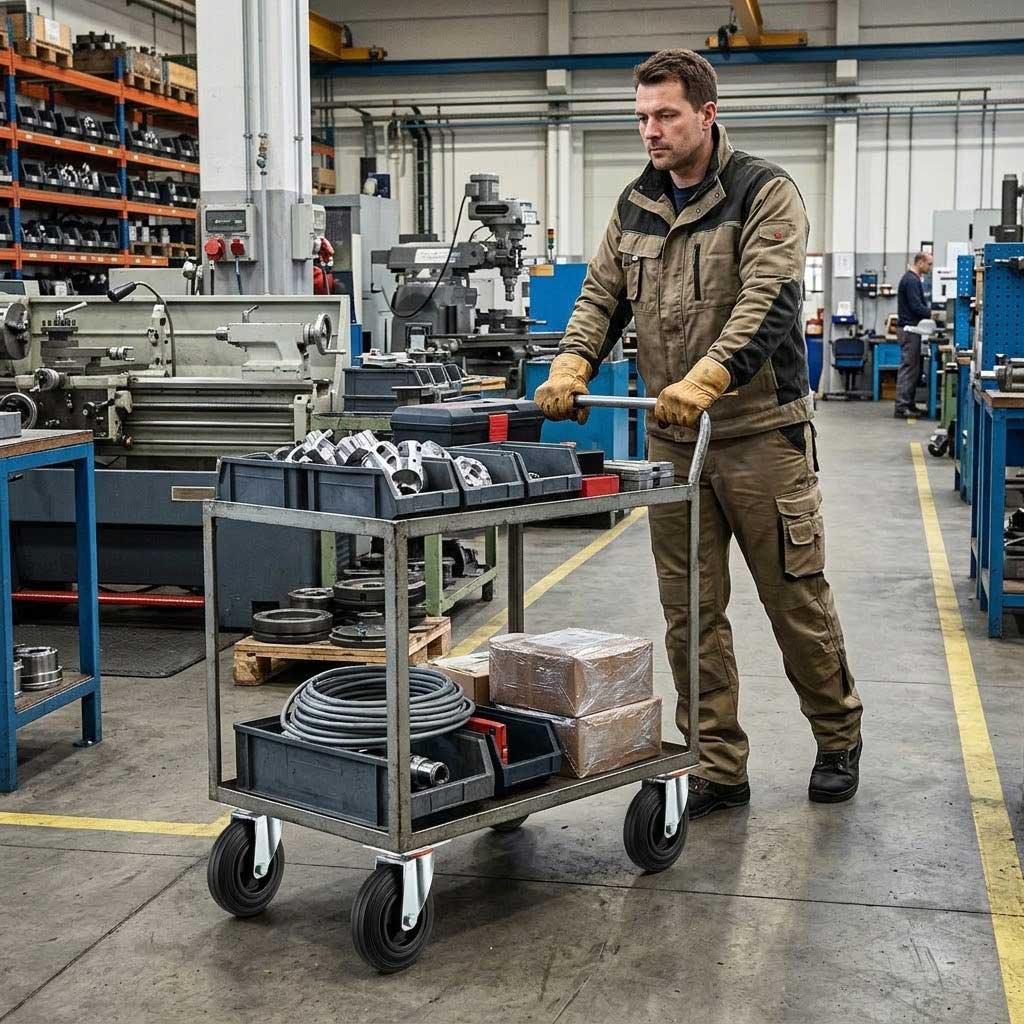

80mm Pressed Steel Swivel Castor — 60 kg Load Capacity
Compact and lightweight — ideal for furniture, storage units, and light equipmentTechnical Specifications
| Castor Type | Swivel — Top Plate Fixing |
|---|---|
| Wheel Diameter | 80 mm |
| Total Castor Height | 106 mm |
| Wheel Material | Rubber on Polypropylene |
| Wheel Colour | Black |
| Tread Width | 25 mm |
| Tread Hardness | 85 Shore A |
| Bearing Type | Ball Journal |
| Load Capacity (per castor) | 60 kg |
| Max Load — Set of 4 | 180 kg |
| Plate Length | 100 mm |
| Plate Width | 85 mm |
| Hole Centres — Length | 80 mm |
| Hole Centres — Width | 60 mm |
| Plate Hole Diameter | 10 mm |
| Number of Fixing Holes | 4 |
| Bracket Material | Pressed Steel |
| Bracket Finish | White Zinc Plated |
Applications

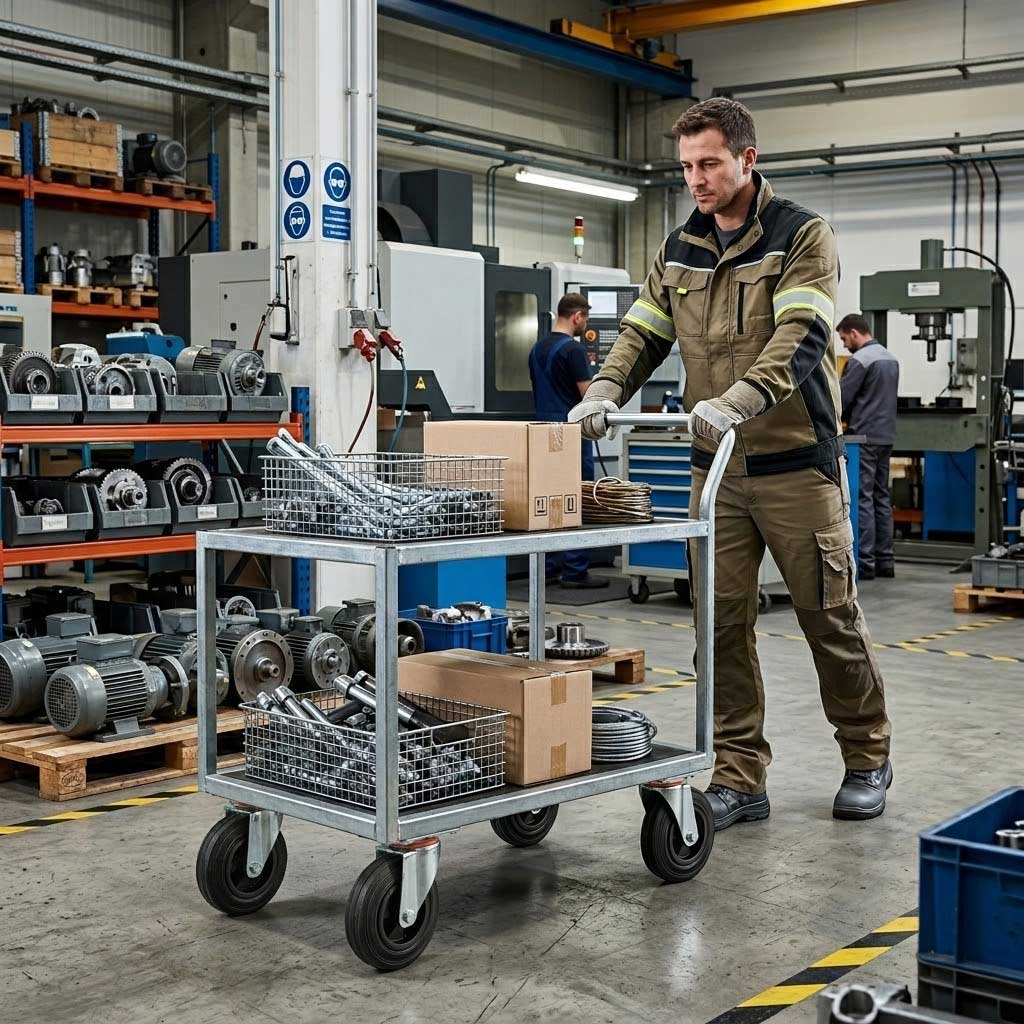

- Office and home furniture — chairs, side tables, and storage cabinets requiring easy repositioning
- Retail display stands and shelving units on smooth shop floors
- Light workshop trolleys and mobile tool storage in garages and small workshops
- Domestic storage bins, laundry units, and under-bed storage frames
- Hospitality and catering — mobile service trolleys in hotels and cafes
100mm Pressed Steel Swivel Castor — 75 kg Load Capacity
Versatile general-purpose castor for everyday commercial and light industrial useTechnical Specifications
| Castor Type | Swivel — Top Plate Fixing |
|---|---|
| Wheel Diameter | 100 mm |
| Total Castor Height | 127 mm |
| Wheel Material | Rubber on Polypropylene |
| Wheel Colour | Black |
| Tread Width | 30 mm |
| Tread Hardness | 85 Shore A |
| Bearing Type | Ball Journal |
| Load Capacity (per castor) | 75 kg |
| Max Load — Set of 4 | 225 kg |
| Plate Length | 100 mm |
| Plate Width | 85 mm |
| Hole Centres — Length | 80 mm |
| Hole Centres — Width | 60 mm |
| Plate Hole Diameter | 10 mm |
| Number of Fixing Holes | 4 |
| Bracket Material | Pressed Steel |
| Bracket Finish | White Zinc Plated |
Applications

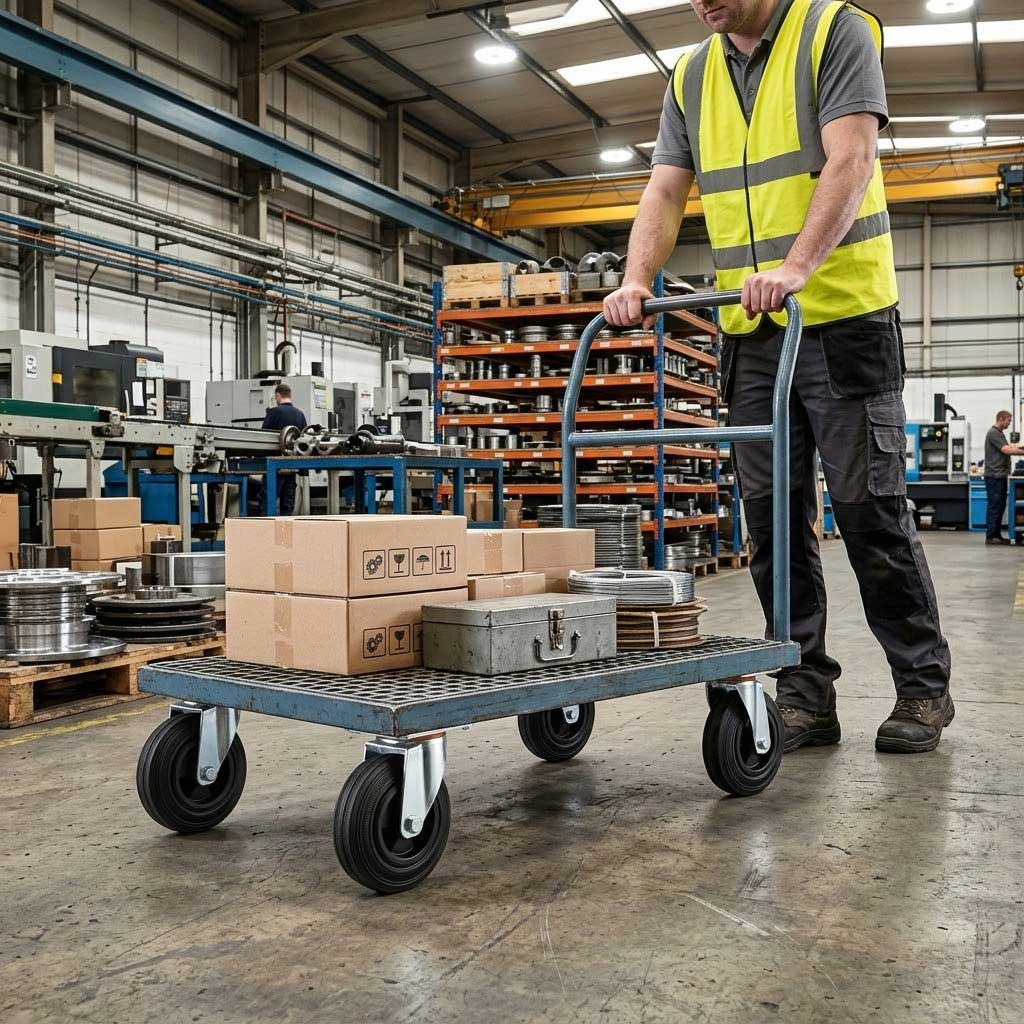

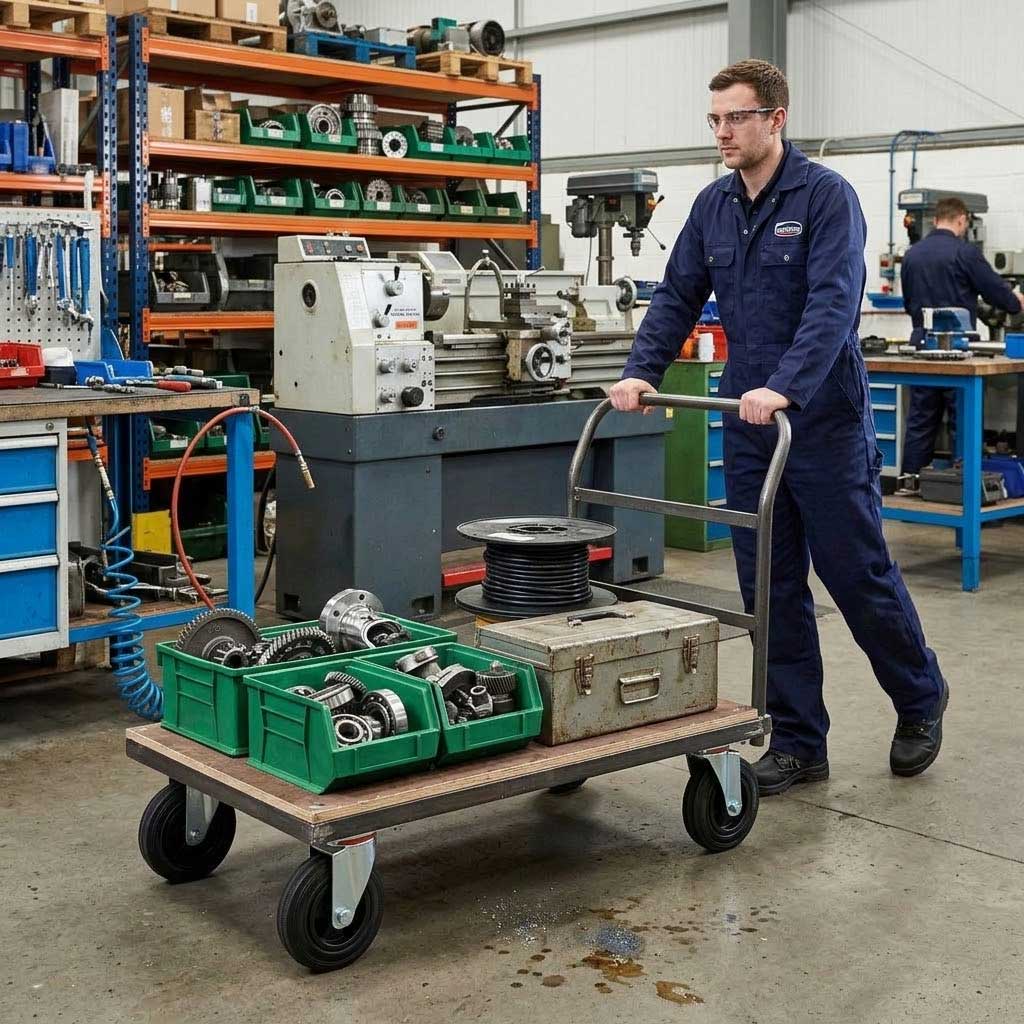

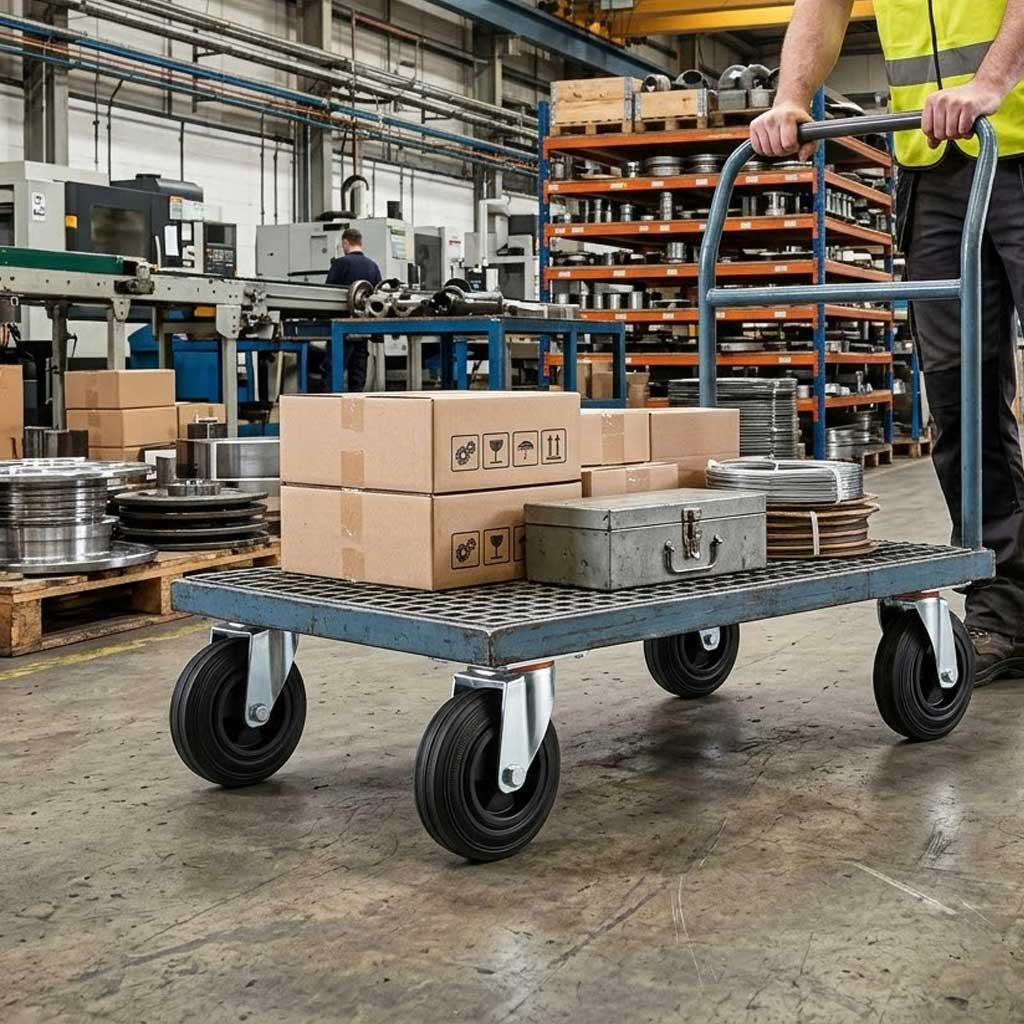

- Commercial kitchen and catering trolleys where hygiene and manoeuvrability are essential
- Office furniture — desks, filing cabinets, and mobile pedestals in busy workplaces
- Healthcare environments — medical equipment trolleys, bedside units, and supply carts
- Retail and warehouse picking trolleys requiring smooth directional changes
- Educational settings — mobile AV stands, library trolleys, and classroom storage

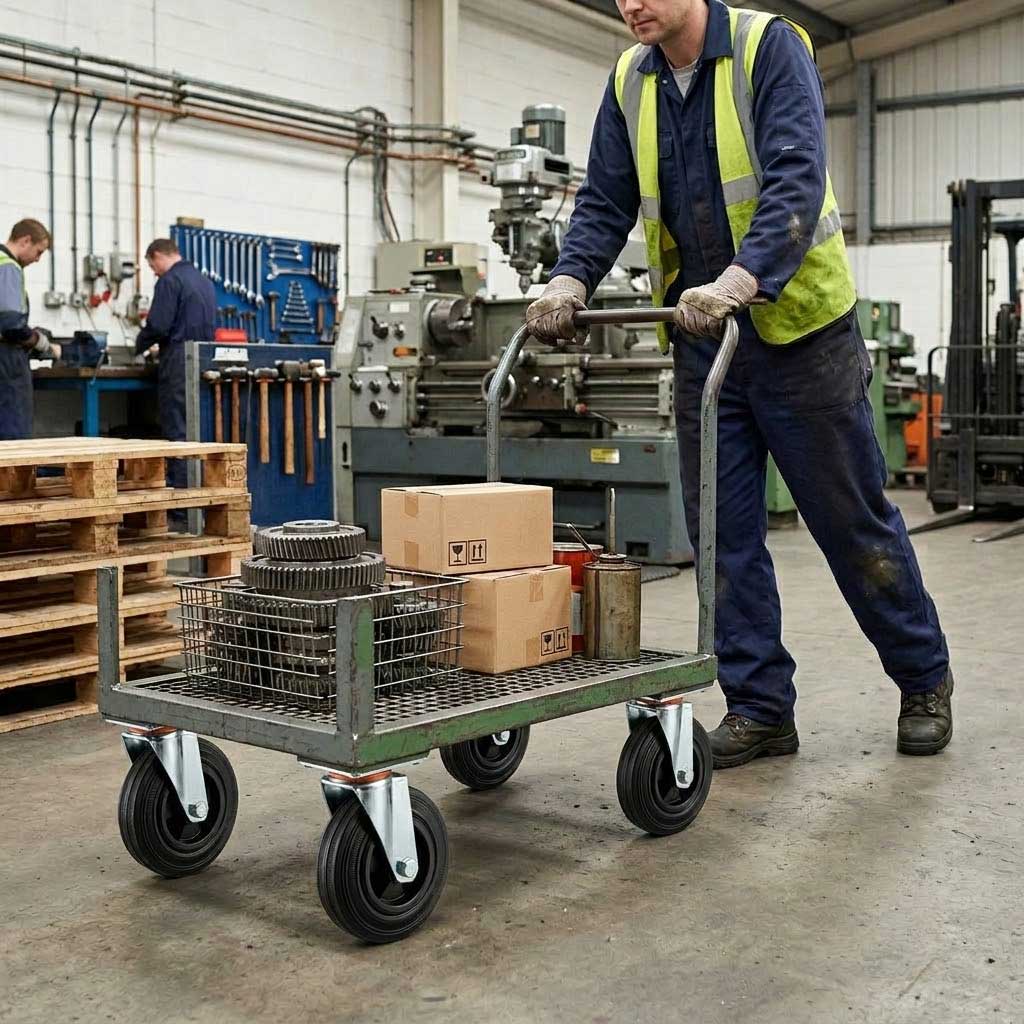

125mm Pressed Steel Swivel Castor — 110 kg Load Capacity
Heavy-duty performance for demanding industrial, logistics, and manufacturing environmentsTechnical Specifications
| Castor Type | Swivel — Top Plate Fixing |
|---|---|
| Wheel Diameter | 125 mm |
| Total Castor Height | 157 mm |
| Wheel Material | Rubber on Polypropylene |
| Wheel Colour | Black |
| Tread Width | 37.5 mm |
| Tread Hardness | 85 Shore A |
| Bearing Type | Ball Journal |
| Load Capacity (per castor) | 110 kg |
| Max Load — Set of 4 | 330 kg |
| Plate Length | 100 mm |
| Plate Width | 85 mm |
| Hole Centres — Length | 80 mm |
| Hole Centres — Width | 60 mm |
| Plate Hole Diameter | 10 mm |
| Number of Fixing Holes | 4 |
| Bracket Material | Pressed Steel |
| Bracket Finish | White Zinc Plated |
Applications

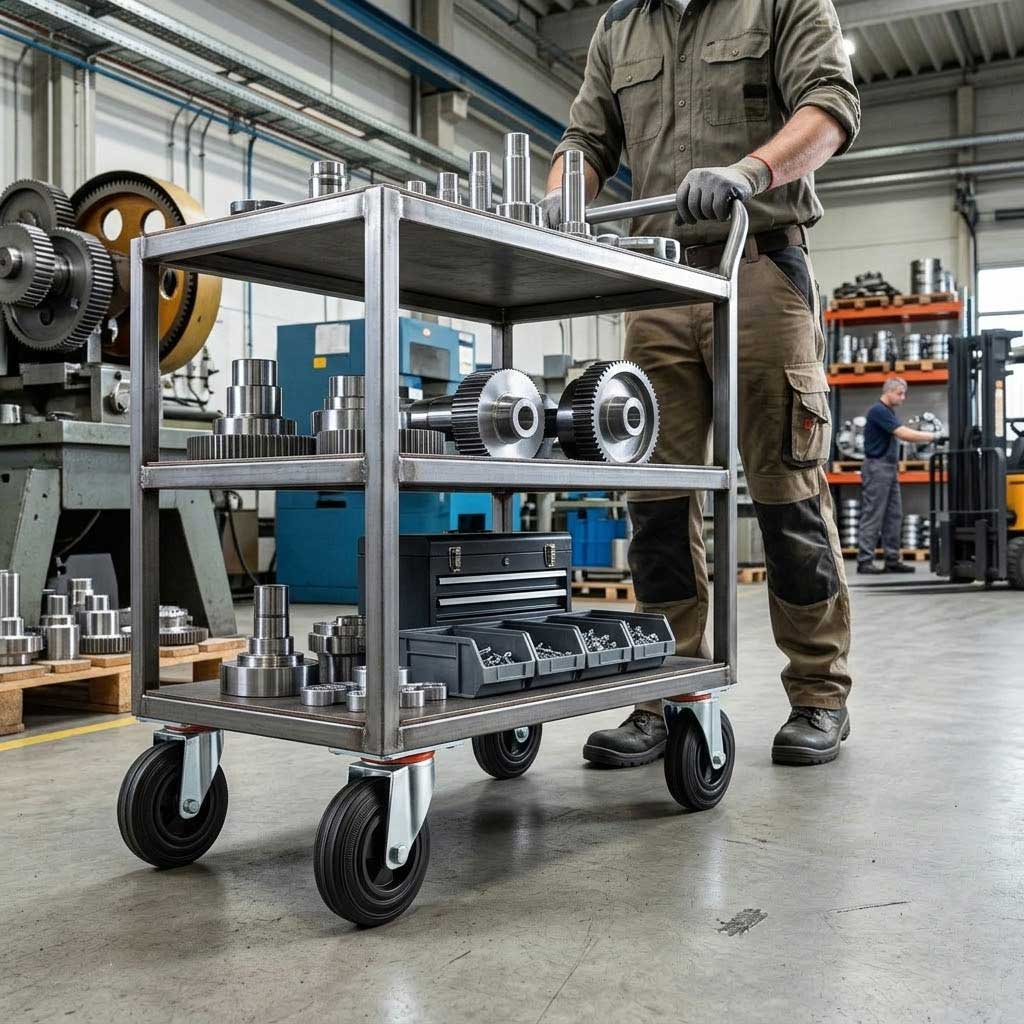

- Warehouse and logistics — heavy goods trolleys, roll cages, and packing station carts
- Manufacturing and production lines — mobile workstations and component transport dollies
- Industrial storage — heavy shelving units and mobile racking systems
- Retail stockroom and back-of-house equipment requiring robust, frequent movement
- Printing and trade — mobile plan chests, paper trolleys, and equipment stands

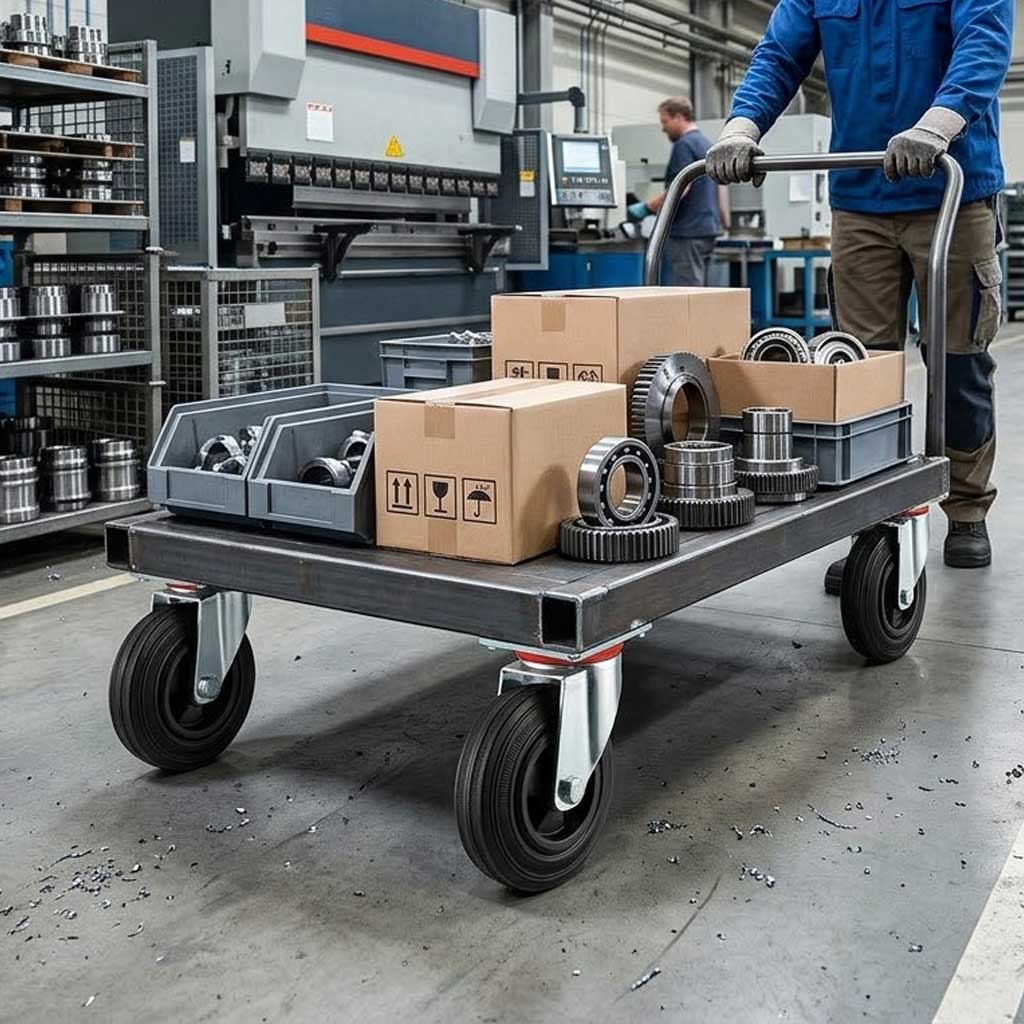

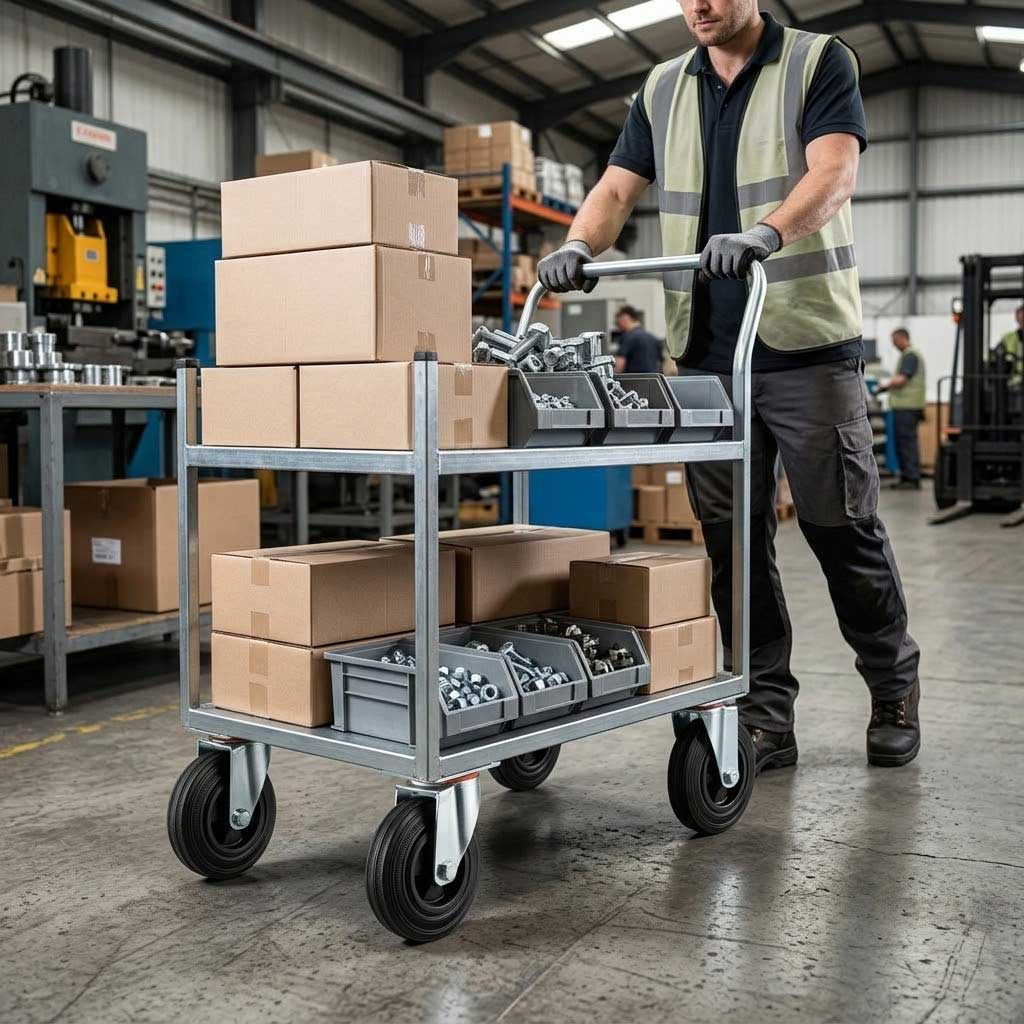

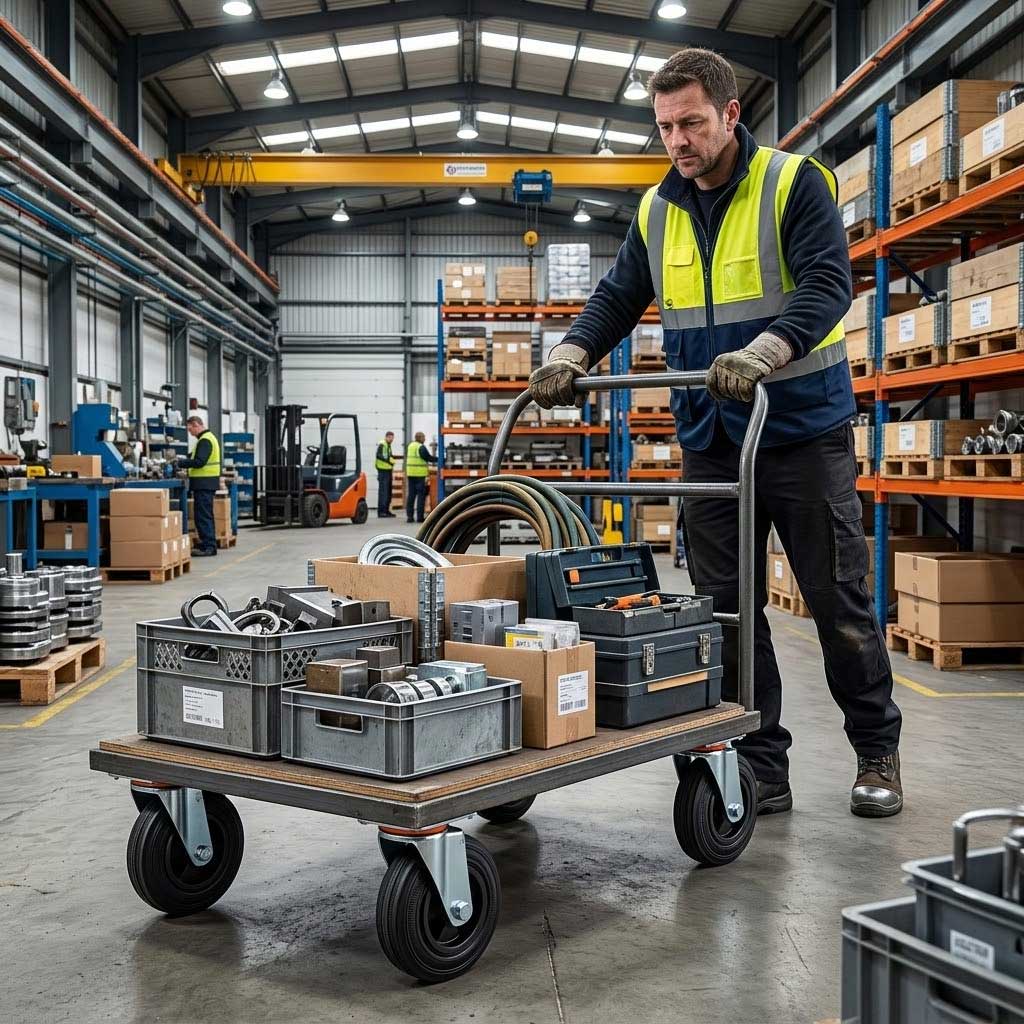

150mm Pressed Steel Swivel Castor — 130 kg Load Capacity
Maximum load capacity — built for the most demanding commercial and industrial applicationsTechnical Specifications
| Castor Type | Swivel — Top Plate Fixing |
|---|---|
| Wheel Diameter | 150 mm |
| Total Castor Height | 181 mm |
| Wheel Material | Rubber on Polypropylene |
| Wheel Colour | Black |
| Tread Width | 44 mm |
| Tread Hardness | 85 Shore A |
| Bearing Type | Ball Journal |
| Load Capacity (per castor) | 130 kg |
| Max Load — Set of 4 | 390 kg |
| Plate Length | 100 mm |
| Plate Width | 85 mm |
| Hole Centres — Length | 80 mm |
| Hole Centres — Width | 60 mm |
| Plate Hole Diameter | 10 mm |
| Number of Fixing Holes | 4 |
| Bracket Material | Pressed Steel |
| Bracket Finish | White Zinc Plated |
Applications
- Heavy industrial trolleys and platform trucks transporting dense or bulky loads
- Engineering workshops — mobile machinery bases, welding carts, and heavy tool storage
- Distribution centres — large roll cages, pallet dollies, and goods-in trolleys
- Construction and trade — mobile site equipment, generator trolleys, and material handling
- Hospitality and events — heavy AV equipment trolleys, staging carts, and mobile bars
Frequently Asked Questions
How do I choose the right castor size for my application?
Start by calculating the total weight of the equipment plus its maximum contents, then divide by the number of castors you intend to fit — typically four. Choose a castor whose individual load rating comfortably exceeds that figure, allowing a safety margin for dynamic loads such as pushing, pulling, and uneven surfaces. As a general guide: the 80mm castor suits light furniture and domestic use (up to 60 kg each); the 100mm is ideal for general commercial trolleys (up to 75 kg each); the 125mm handles demanding industrial use (up to 110 kg each); and the 150mm is suited to the heaviest loads (up to 130 kg each).
Are these castors suitable for use on hard floors such as tiles, concrete, or laminate?
Yes. The black rubber tread — rated at 85 Shore A — provides a firm yet slightly cushioned contact with hard floor surfaces. This hardness level offers good load-bearing capability while reducing the risk of marking or scuffing smooth floors such as tiles, sealed concrete, vinyl, and laminate. For very delicate or polished floors, we recommend testing on a small area first, as rubber compounds can occasionally leave marks under sustained static load.
What does the top plate fixing mean, and how do I fit these castors?

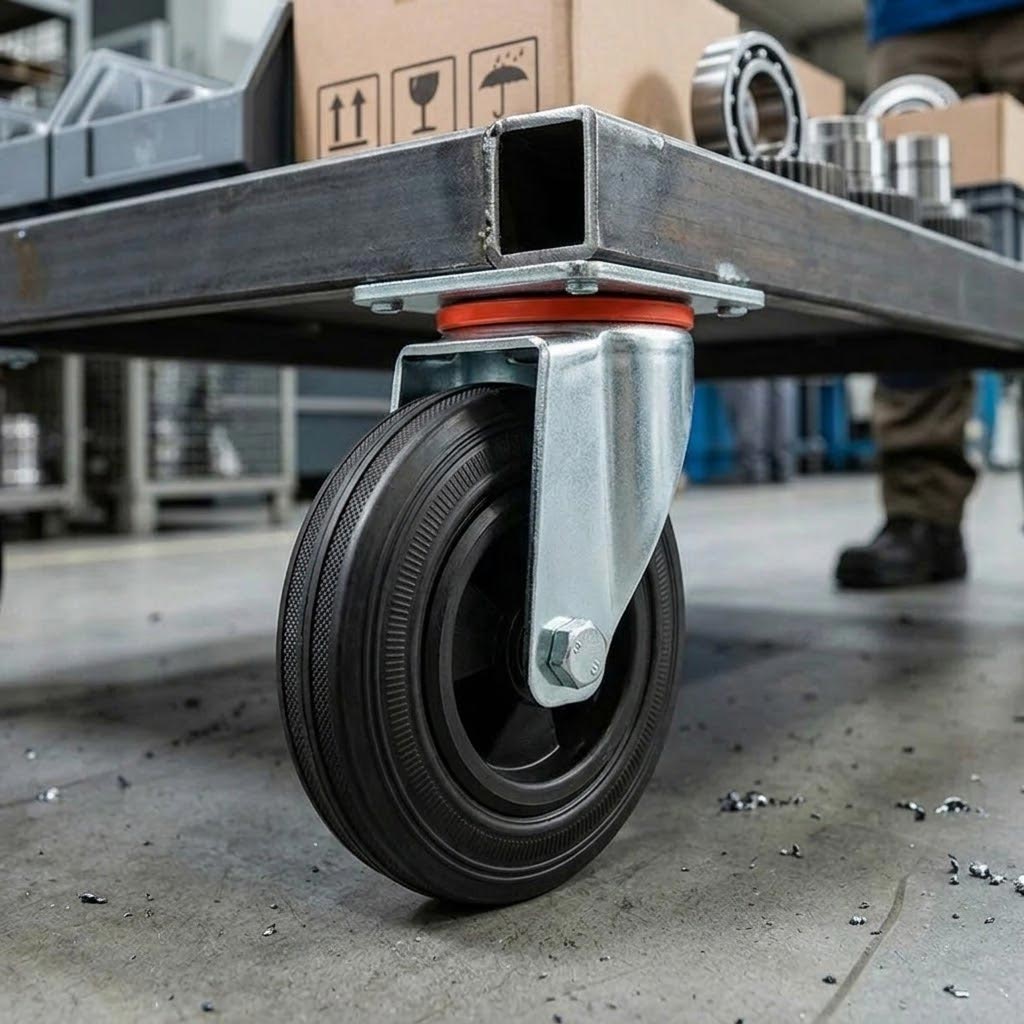

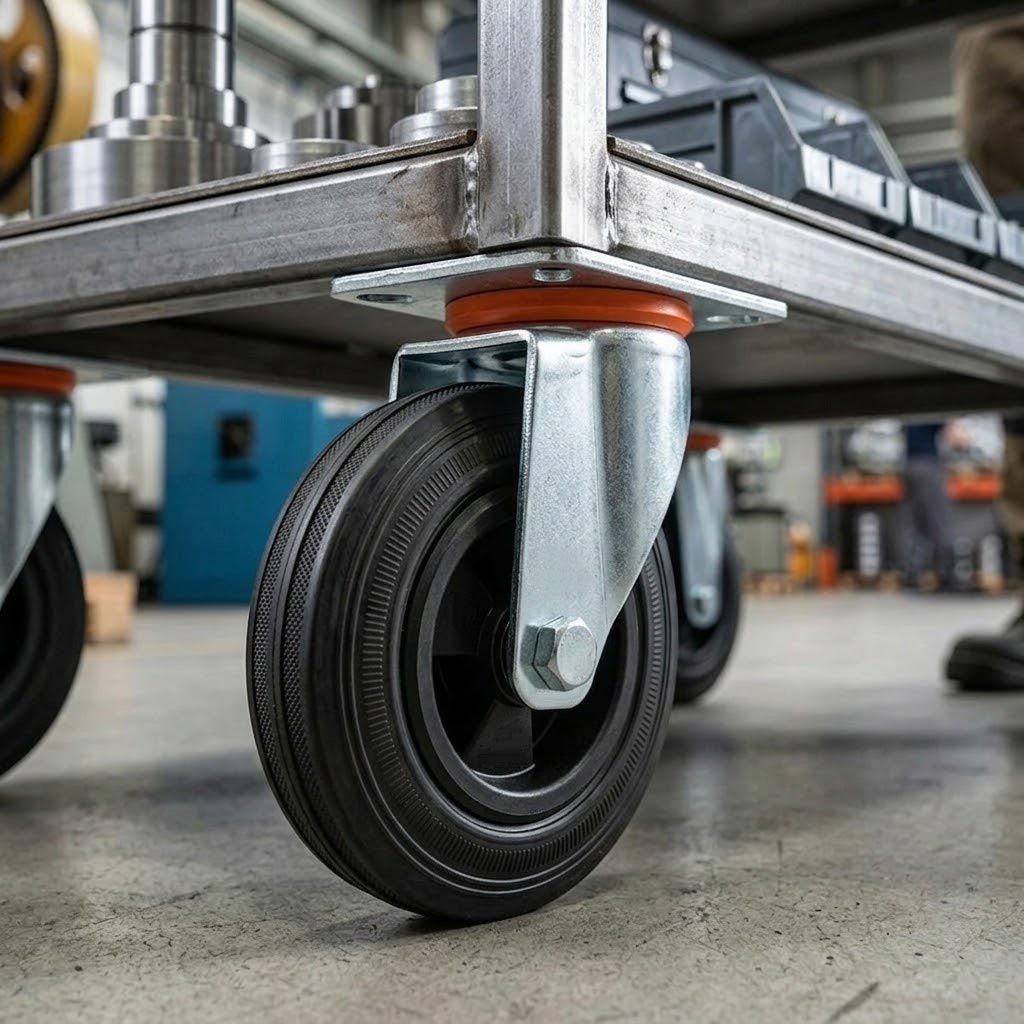

Top plate fixing means the castor is mounted using a flat steel plate bolted directly to the underside of the equipment frame — as opposed to a stem or bolt-hole fitting. Each castor features a 100 mm x 85 mm plate with four fixing holes of 10 mm diameter, arranged on hole centres of 80 mm (length) x 60 mm (width). To fit, simply align the plate with your equipment's pre-drilled mounting holes and secure with M10 bolts, washers, and nuts. This is the most common and secure mounting method for trolleys, workbenches, and storage units.
What is the difference between a swivel castor and a fixed castor, and do I need both?
A swivel castor rotates 360 degrees around its vertical axis, allowing the equipment to be steered and manoeuvred in any direction. A fixed castor only rolls in a straight line. For most trolleys and mobile equipment, a common configuration is two fixed castors at the rear (for straight-line stability) and two swivel castors at the front (for steering). However, four swivel castors can be used where maximum manoeuvrability in tight spaces is the priority. These castors are swivel type, making them suitable for either a full-swivel setup or a mixed configuration alongside fixed castors.
* Load ratings stated are per individual castor under static conditions. Always apply a suitable safety margin for dynamic or uneven loading. Ensure the mounting surface is structurally sound and that fixing bolts are tightened to the appropriate torque for your application.
