Description

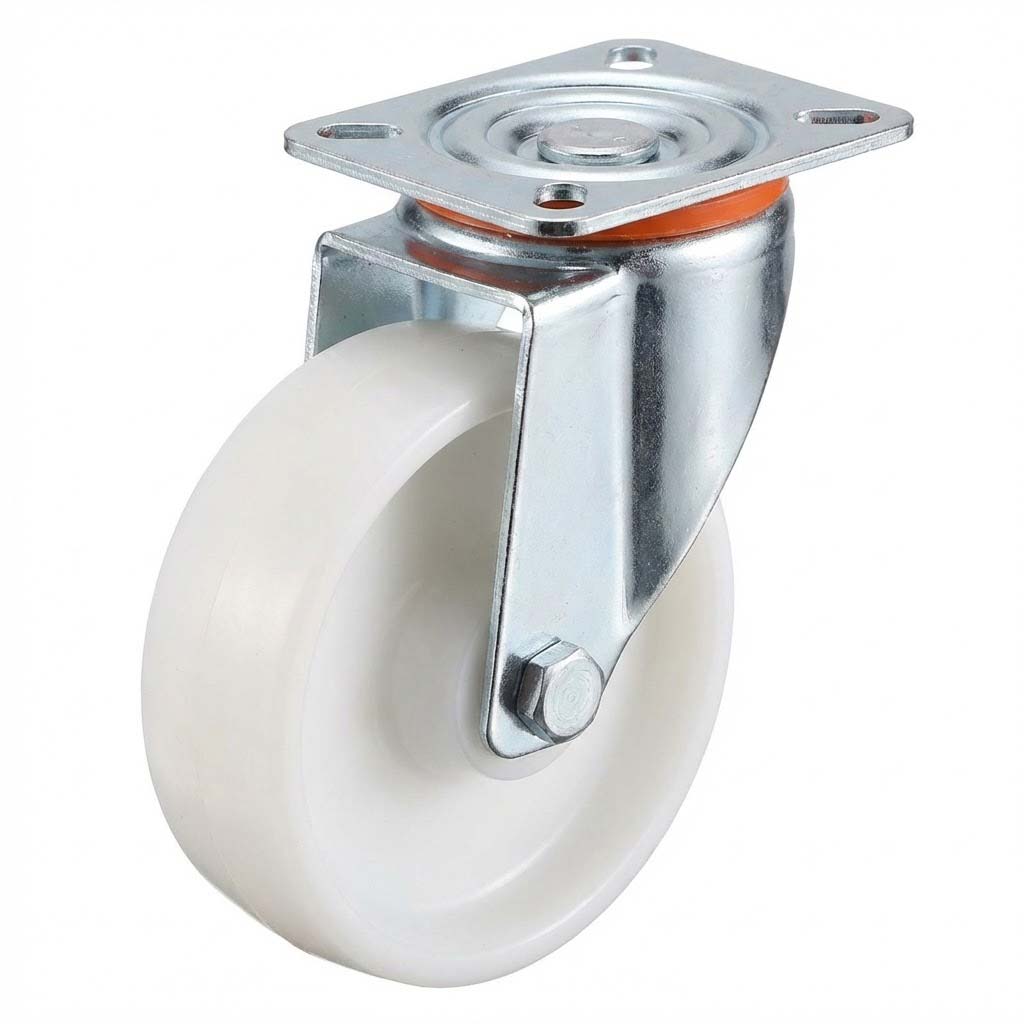

Premium 80mm Swivel Castor Wheel
Industrial-Grade Mobility Solution with White Nylon Wheel & 120kg Load Capacity
Product Overview
Engineered for demanding industrial and commercial environments, this 80mm swivel castor wheel combines robust pressed steel construction with a high-performance white nylon wheel. Designed to deliver exceptional manoeuvrability and reliable load-bearing performance, this castor is the ideal mobility solution for food processing facilities, pharmaceutical environments, medical equipment, and general industrial applications where hygiene, durability, and smooth operation are paramount. Fixings not included.
Best For
- Food processing facilities
- Pharmaceutical environments
- Medical equipment
- Cleanroom environments
- Commercial trolleys and equipment
- Indoor industrial use
Not Recommended
- Outdoor rough ground
- Gravel, grass, or uneven surfaces
- High-speed towing
- Soft, polished or delicate flooring without testing first
- Applications requiring a brake — choose the braked version instead
Available in Multiple Castor Wheel Sizes & Types
Explore this castor wheel range in swivel, braked and fixed types. Available in multiple sizes from 80mm to 200mm, with load capacities from 120kg to 230kg. Need a locking wheel? Choose the braked castor option below.
Key Features & Benefits
Superior Manoeuvrability
Ball journal bearing system ensures smooth 360-degree rotation, enabling effortless directional changes and precise positioning in tight spaces.
Robust Load Capacity
Rated at 120kg per castor (360kg for a set of 4), providing reliable support for medium to heavy-duty equipment and trolleys.
Non-Marking White Nylon Wheel
Designed for clean, smooth floors. Always test first on polished, soft, or delicate flooring.
Secure Top Plate Mounting
4-hole top plate design with standardised fixing centres ensures quick installation and stable attachment to equipment bases.

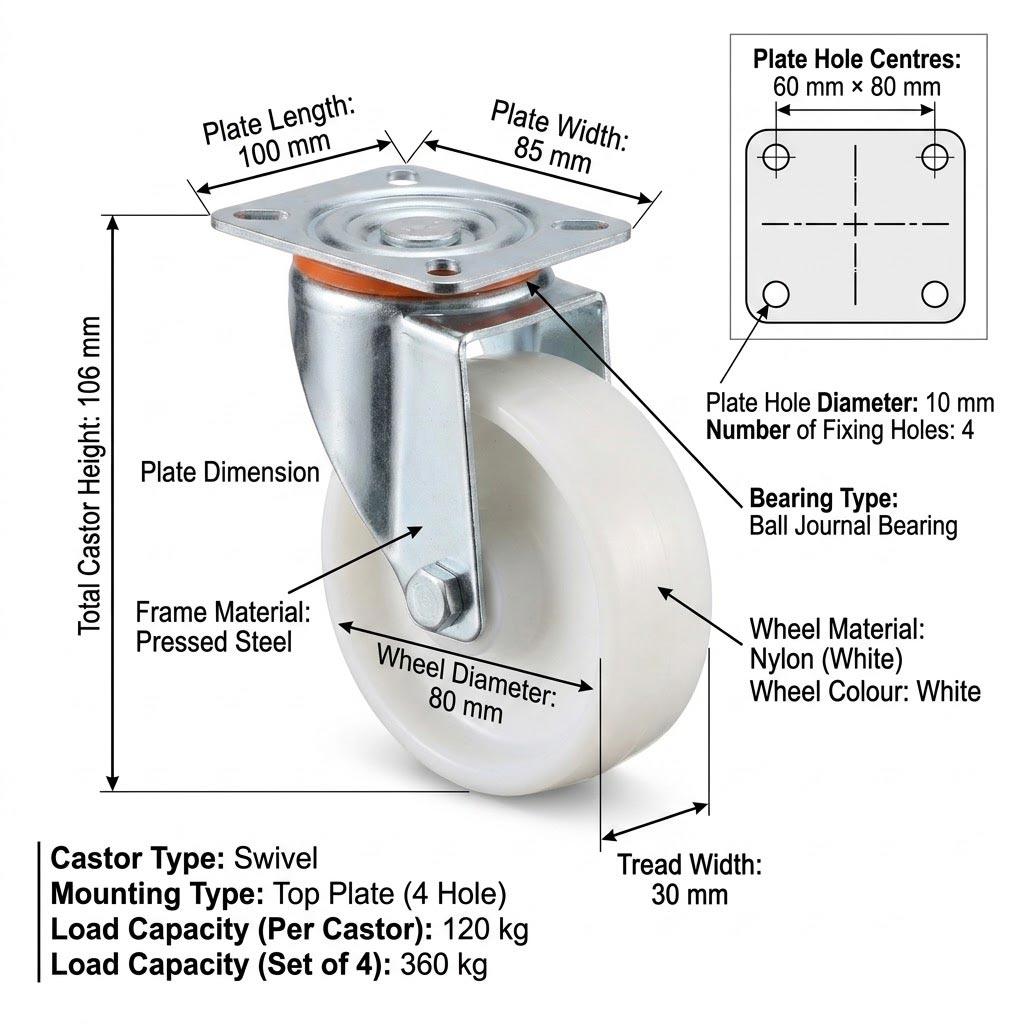

Complete Technical Specifications
Castor Configuration
| Castor Type | Swivel |
| Mounting Type | Top Plate (4 Hole) |
| Bearing Type | Ball Journal Bearing |
| Frame Material | Pressed Steel |
Load Capacity & Performance
| Load Capacity (Per Castor) | 120 kg |
| Load Capacity (Set of 4) | 360 kg |
Wheel Specifications
| Wheel Diameter | 80 mm |
| Wheel Material | Nylon (White) |
| Tread Width | 30 mm |
| Wheel Colour | White |
Overall Dimensions
| Total Castor Height | 106 mm |
Top Plate Dimensions
| Plate Length | 100 mm |
| Plate Width | 85 mm |
| Plate Hole Centres | 60 mm × 80 mm |
| Plate Hole Diameter | 10 mm |
| Number of Fixing Holes | 4 |
Material Properties & Performance Characteristics
White nylon wheel designed for clean, smooth floors. Always test on delicate flooring before use.
White Nylon Wheel Advantages
- Non-Marking: Leaves no scuff marks or residue on floors, ideal for clean environments and polished surfaces
- Chemical Resistant: Withstands exposure to oils, greases, mild acids, and alkaline solutions
- Hygienic: Easy to clean and maintain, suitable for food processing and pharmaceutical applications
- Low Rolling Resistance: Reduces effort required to move loaded equipment
- Quiet Operation: Minimal noise generation during movement
- Temperature Tolerance: Performs reliably across a wide temperature range
Pressed Steel Frame Benefits
- High Strength-to-Weight Ratio: Provides robust support without excessive weight
- Corrosion Resistance: Suitable for indoor industrial environments
- Precision Manufacturing: Ensures consistent quality and reliable performance
- Cost-Effective: Delivers professional-grade performance at an economical price point

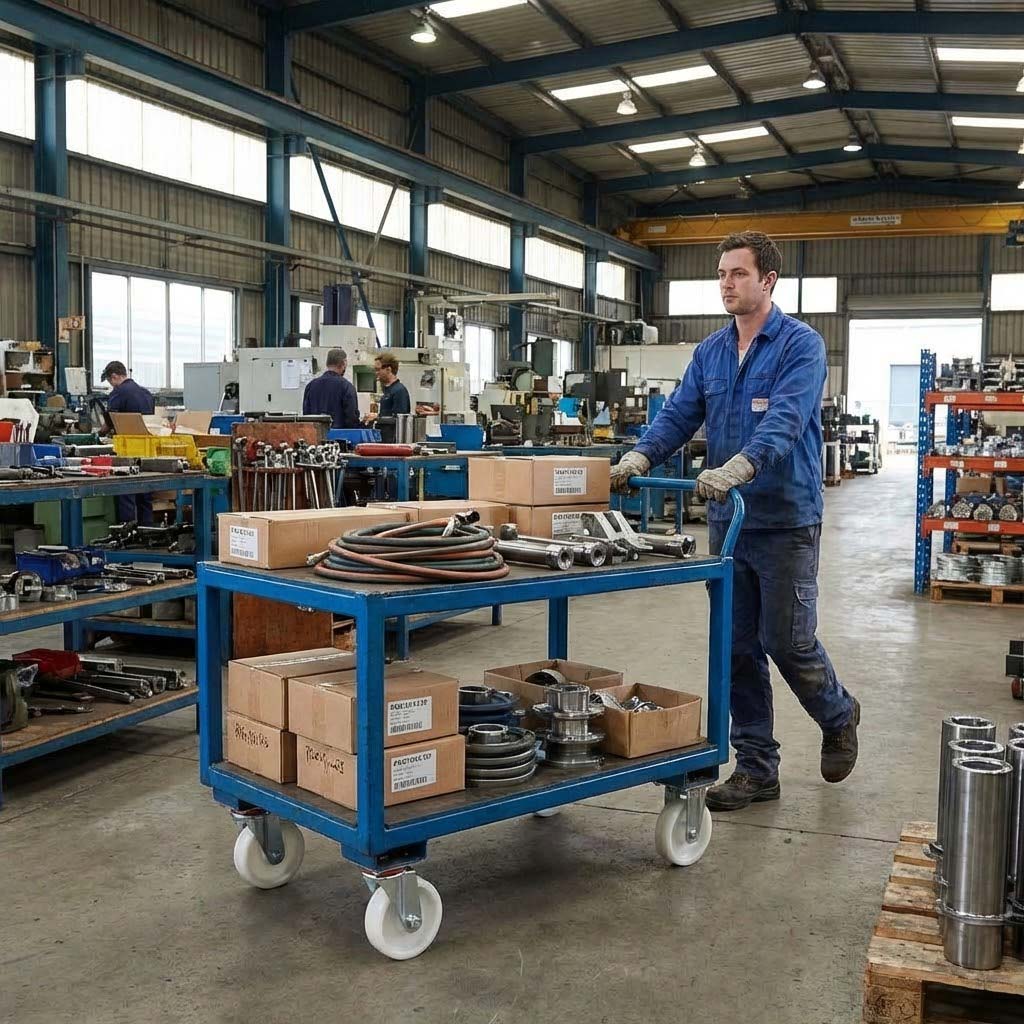

Ideal Applications
? Food Processing Equipment
? Pharmaceutical Trolleys
? Medical Equipment Carts
? Laboratory Workstations
? Industrial Trolleys & Carts
? Warehouse Equipment
? Catering & Hospitality Carts
? Clean Room Environments
Installation & Mounting
The 4-hole top plate configuration provides a secure and straightforward mounting solution. The standardised hole centres (60mm × 80mm) ensure compatibility with most equipment bases and trolley frames. Each fixing hole has a 10mm diameter, accommodating M8 or M10 bolts for robust attachment.
Installation Tip: Ensure the mounting surface is flat and clean before installation. Use appropriate fasteners with washers to distribute load evenly across the top plate. Tighten bolts in a cross-pattern to ensure even pressure distribution and optimal stability.
Why Choose This Castor?
When your operation demands reliable mobility, floor protection, and hygienic performance, this 80mm swivel castor delivers on all fronts. The combination of a non-marking white nylon wheel and precision ball journal bearing creates a castor that moves smoothly, protects your floors, and maintains its performance even under demanding daily use.
The pressed steel construction ensures long-term durability whilst keeping the overall weight manageable, making it an excellent choice for equipment that needs to be both mobile and stable. Whether you're outfitting a commercial kitchen, upgrading laboratory equipment, or improving warehouse efficiency, this castor provides the perfect balance of performance, reliability, and value.
With a generous 120kg load capacity per castor, you can confidently support medium to heavy-duty applications without compromising on manoeuvrability or safety. The white nylon wheel's chemical resistance and easy-clean properties make it particularly well-suited for environments where hygiene and cleanliness are critical requirements.
Quick Specification Summary
80mm
Wheel Diameter
120kg
Load Capacity
106mm
Total Height
Note: Load capacities are based on even weight distribution across all castors. For optimal performance and safety, ensure loads do not exceed the stated capacity. Regular inspection and maintenance of castors will ensure continued reliable operation.
