Description

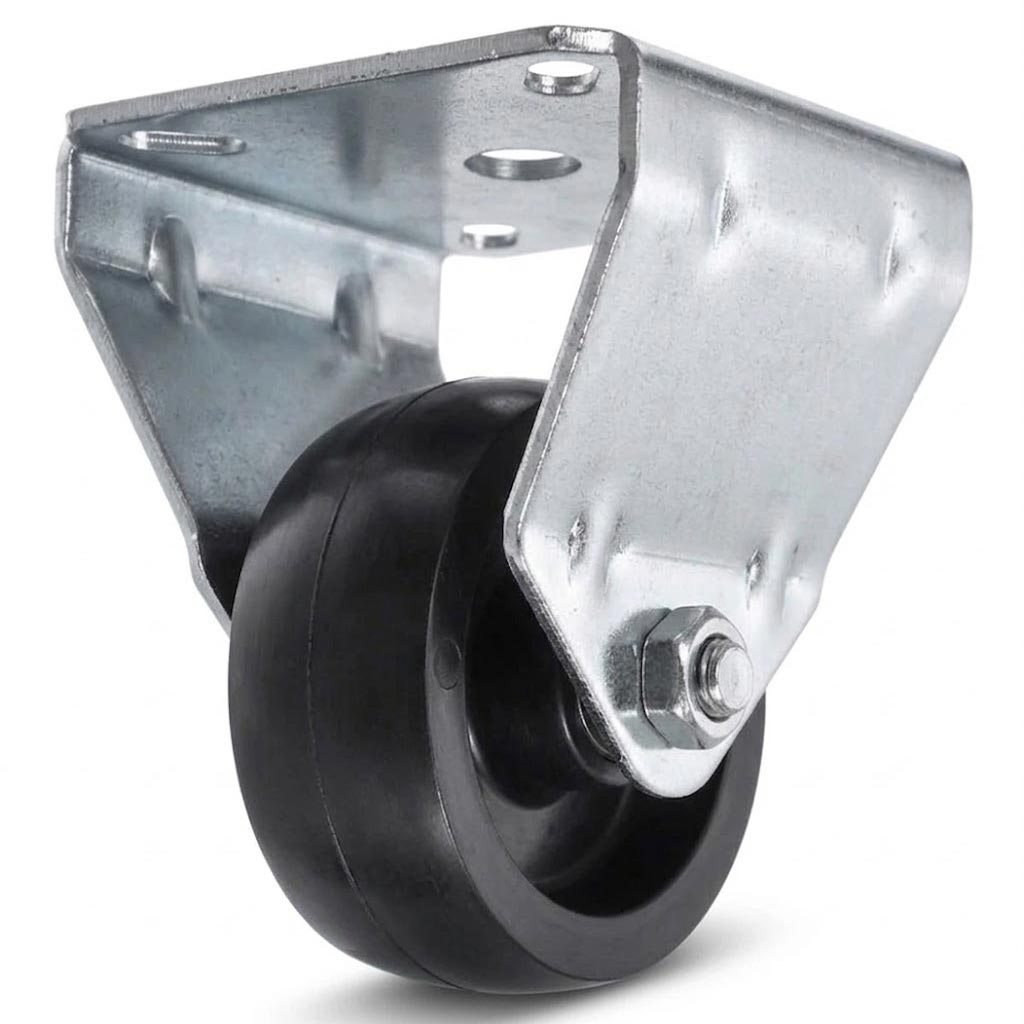

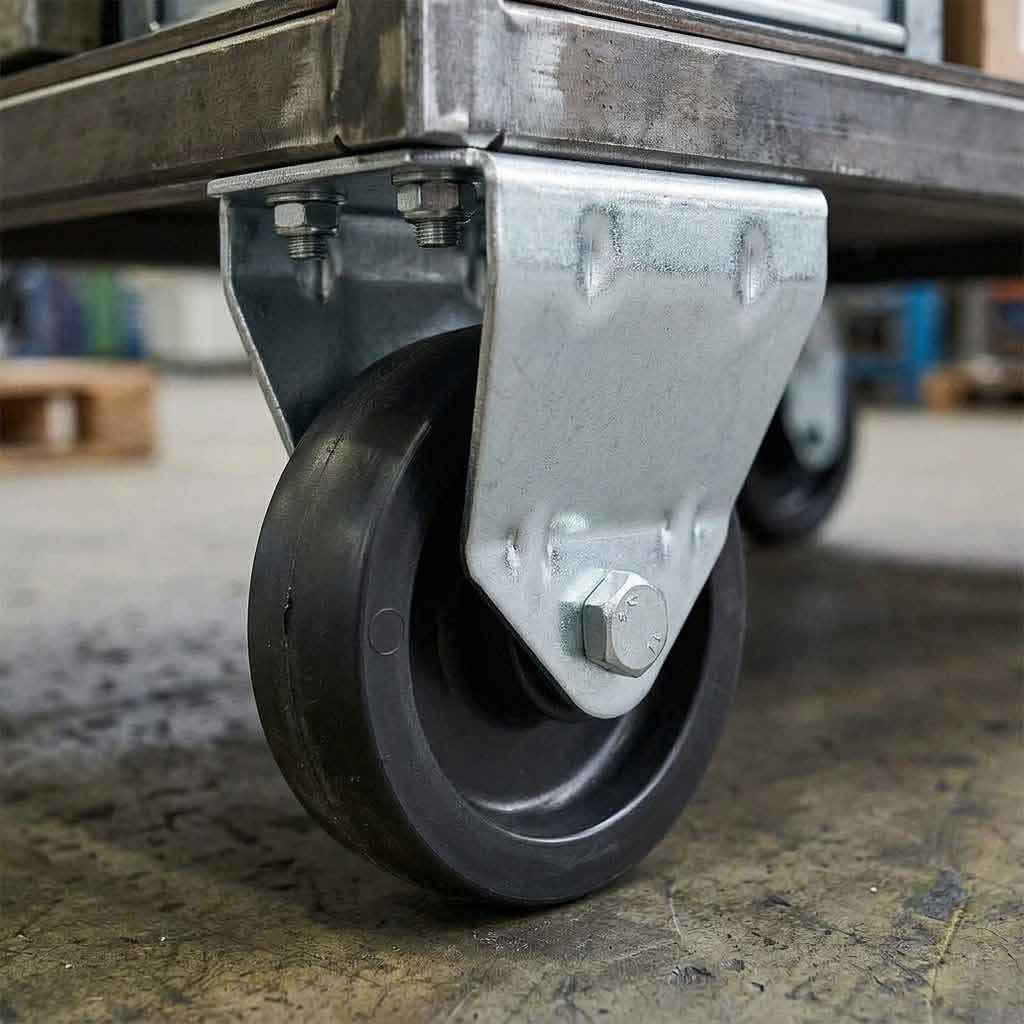

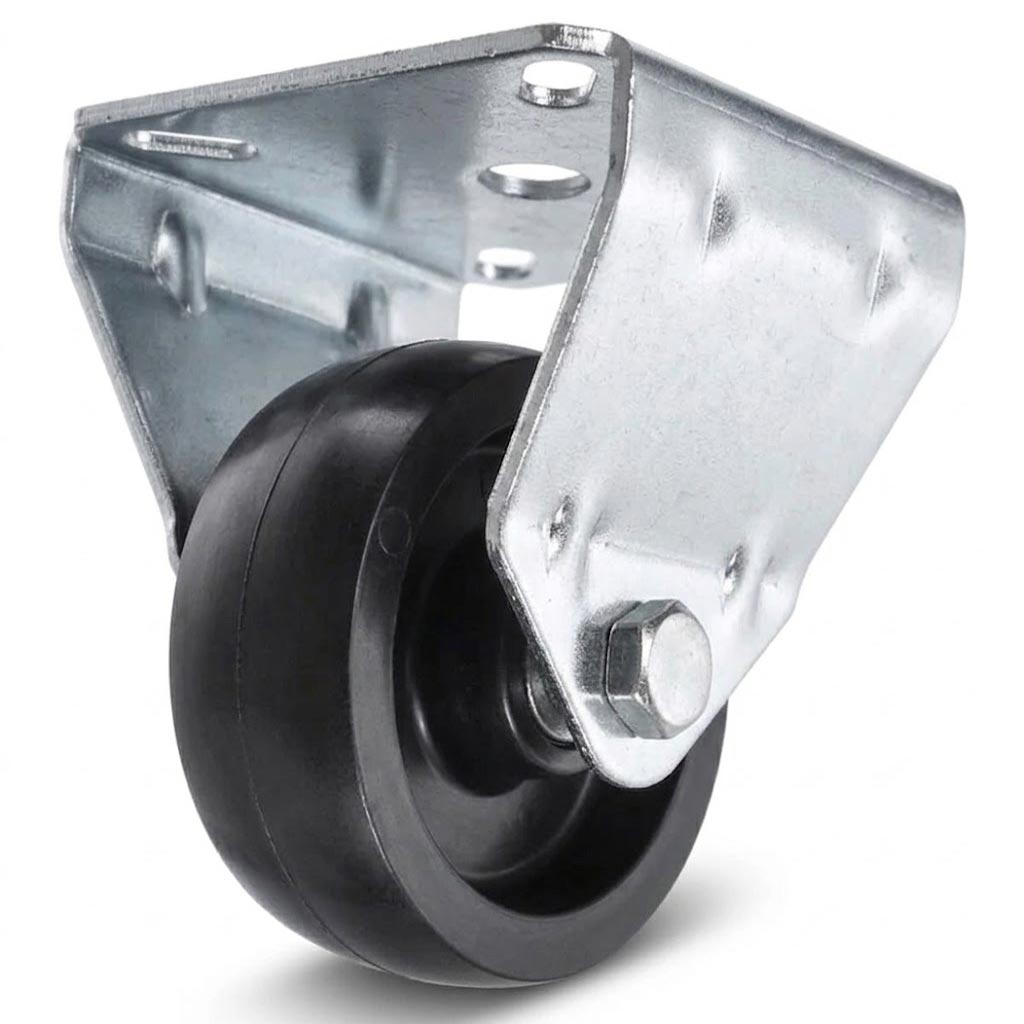

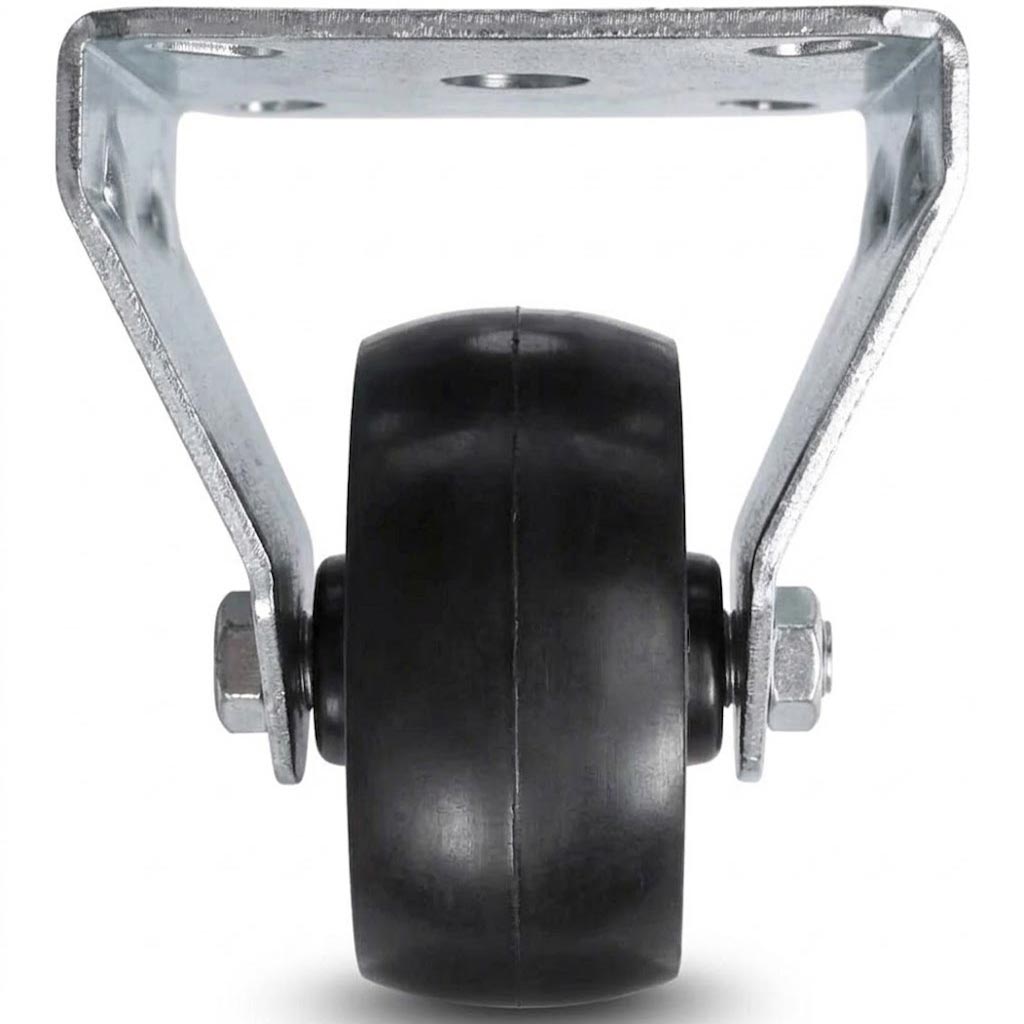

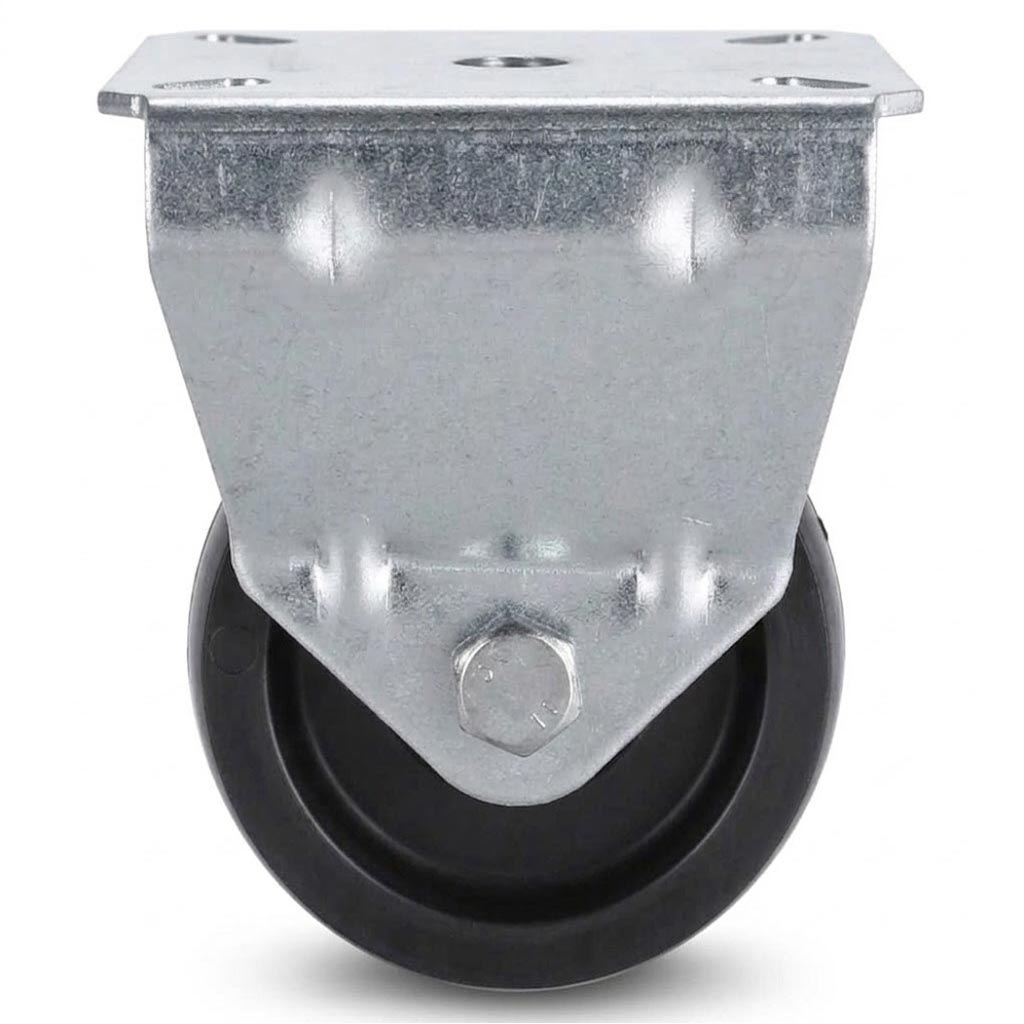

50mm Pressed Steel Fixed Castor — Black Polypropylene Wheel, 4-Bolt Top Plate, 65 kg Load Capacity
A compact, robust fixed castor engineered for reliable straight-line mobility across furniture, display units, and light industrial equipment. Constructed with a pressed steel top plate and a durable polypropylene wheel, this castor delivers consistent, low-maintenance performance in commercial and domestic settings alike.
Product Overview
This 50 mm fixed castor is purpose-built for applications where controlled, directional movement is required. Unlike swivel castors, the fixed configuration keeps the wheel aligned in a single plane, making it the preferred choice for the rear positions of trolleys, carts, and furniture frames where straight tracking is essential.
The pressed steel top plate provides a rigid, secure mounting surface, while the 4-bolt hole pattern ensures a firm, vibration-resistant connection to the host structure. The black polypropylene wheel offers a practical balance of hardness and resilience, performing reliably on smooth concrete, tile, vinyl, and laminate flooring without marking or excessive noise. With a rated load capacity of 65 kg per castor and a combined capacity of 195 kg across a set of four, this unit is well suited to a broad range of light-to-medium duty tasks.
Commonly specified for office furniture, retail display stands, hospitality trolleys, workshop benches, and storage units, this fixed castor is a dependable, cost-effective mobility solution for everyday professional use.
Key Features
- Castor Type Fixed — maintains a constant direction of travel for straight-line movement
- Wheel Diameter 50 mm — compact footprint suited to tight spaces and low-clearance frames
- Wheel Material Black polypropylene — hard-wearing, lightweight, and resistant to everyday abrasion
- Wheel Colour Black — clean, neutral finish compatible with most furniture and equipment aesthetics
- Tread Width 22 mm — provides stable ground contact and even load distribution
- Bearing Type Plain bearing — simple, maintenance-free construction for standard duty applications

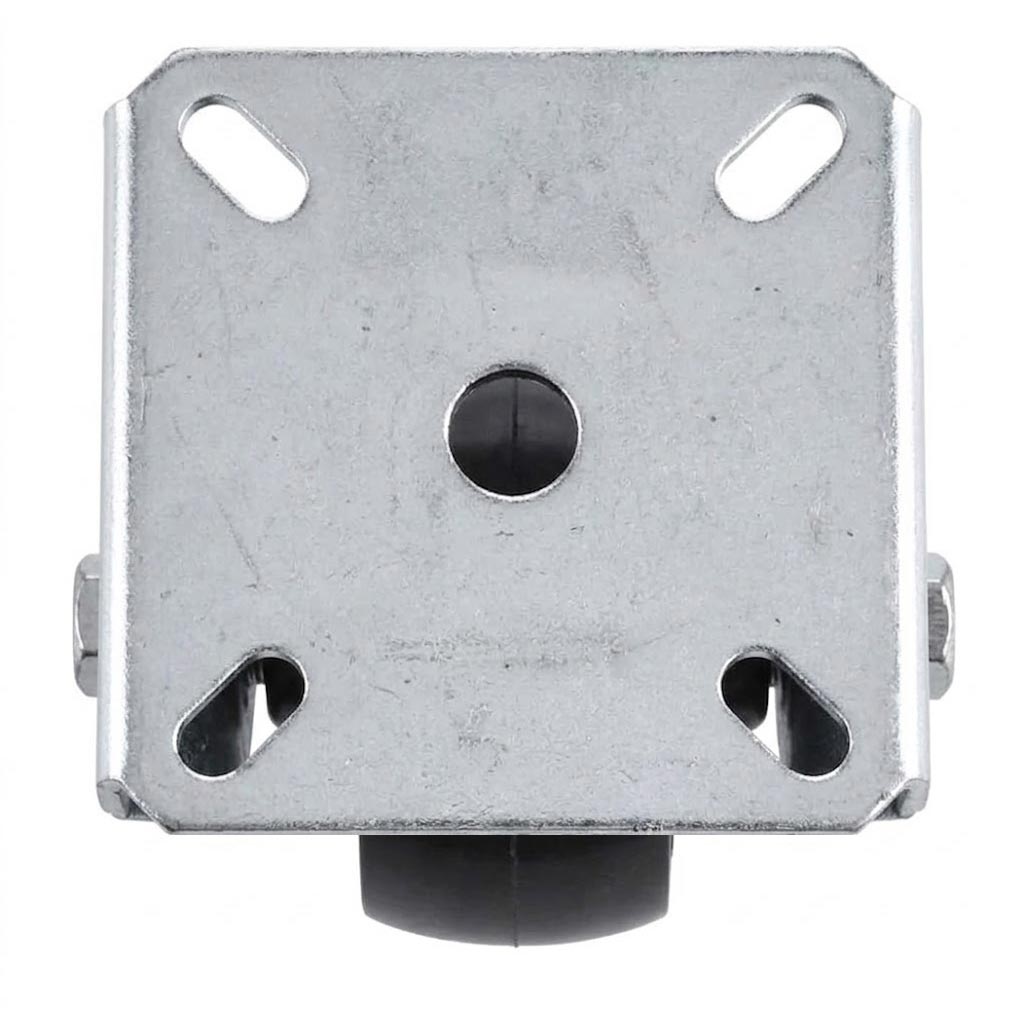

- Top Plate Pressed steel, 4-bolt hole pattern — rigid mounting with secure bolt-down fixing
- Total Castor Height 72 mm — low-profile design that minimises frame elevation
- Load Capacity 65 kg per castor / 195 kg for a set of four
Technical Specifications
| Specification | Value |
|---|---|
| Castor Type | Top Plate Fixed Castor |
| Bearing Type | Plain |
| Wheel Diameter | 50 mm |
| Wheel Material | Polypropylene |
| Wheel Colour | Black |
| Tread Width | 22 mm |
| Total Castor Height | 72 mm |
| Load Capacity (per castor) | 65 kg |
| Max Load Capacity (4 castors) | 195 kg |
| Plate Type | Pressed Steel Top Plate |
| Plate Length | 60 mm |
| Plate Width | 67 mm |
| Plate Hole Centres — Length | 48 mm / 38 mm |
| Plate Hole Centres — Width | 48 mm / 38 mm |
| Plate Hole Diameter | 6 mm |
| Number of Bolt Holes | 4 |
| Plate Finish | Zinc Plated |
Typical Applications
- Office Furniture — desks, filing cabinets, and mobile pedestals requiring controlled directional movement
- Retail Display Units — gondola shelving, display stands, and point-of-sale fixtures that need repositioning
- Hospitality Trolleys — service carts and linen trolleys in hotels, restaurants, and catering environments

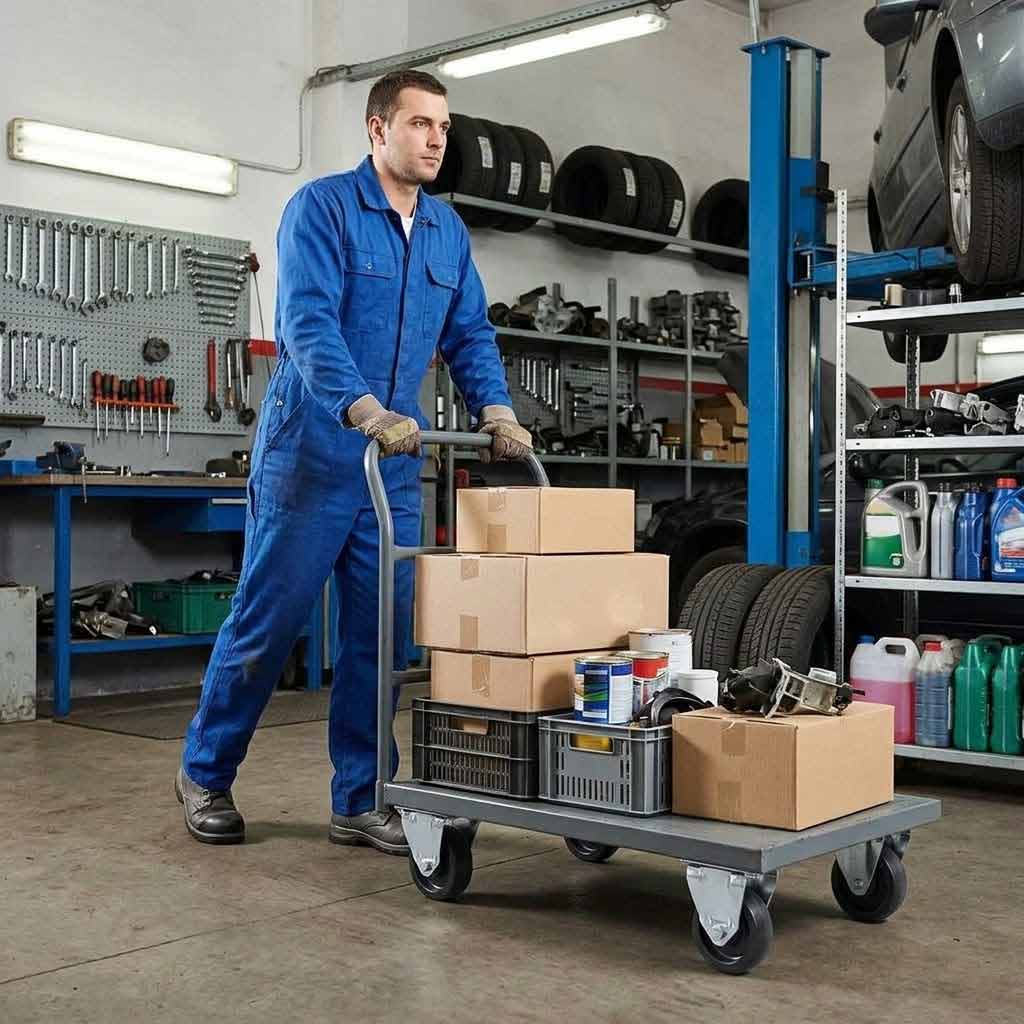

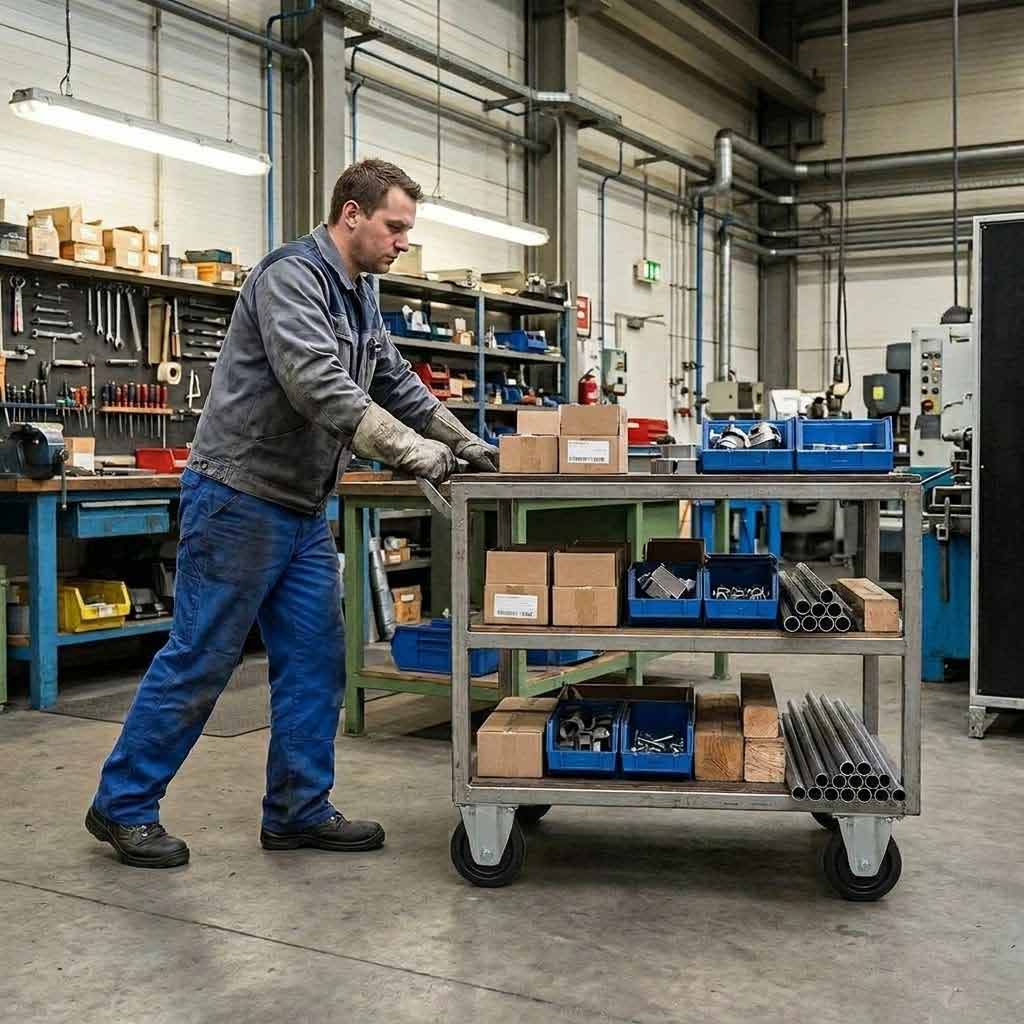

- Workshop & Storage Equipment — tool benches, parts bins, and storage racks on smooth workshop floors

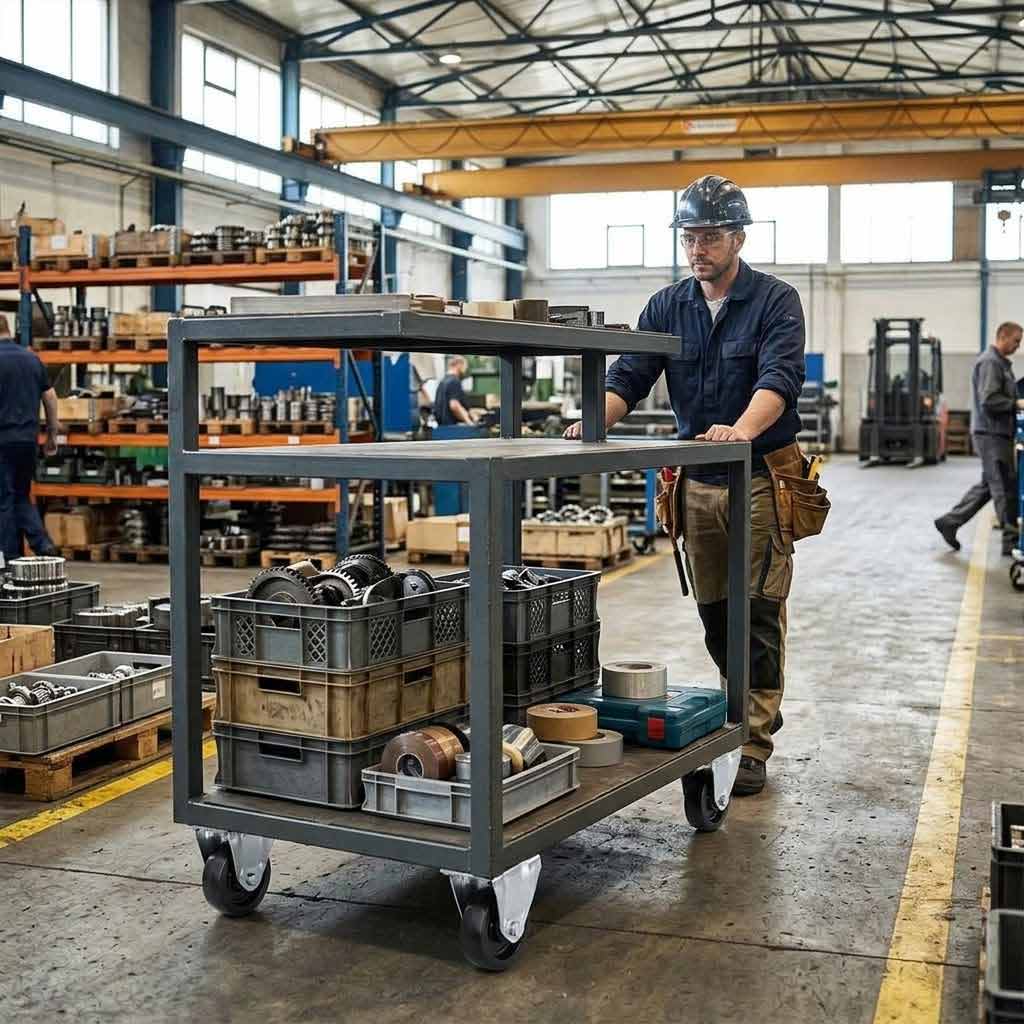

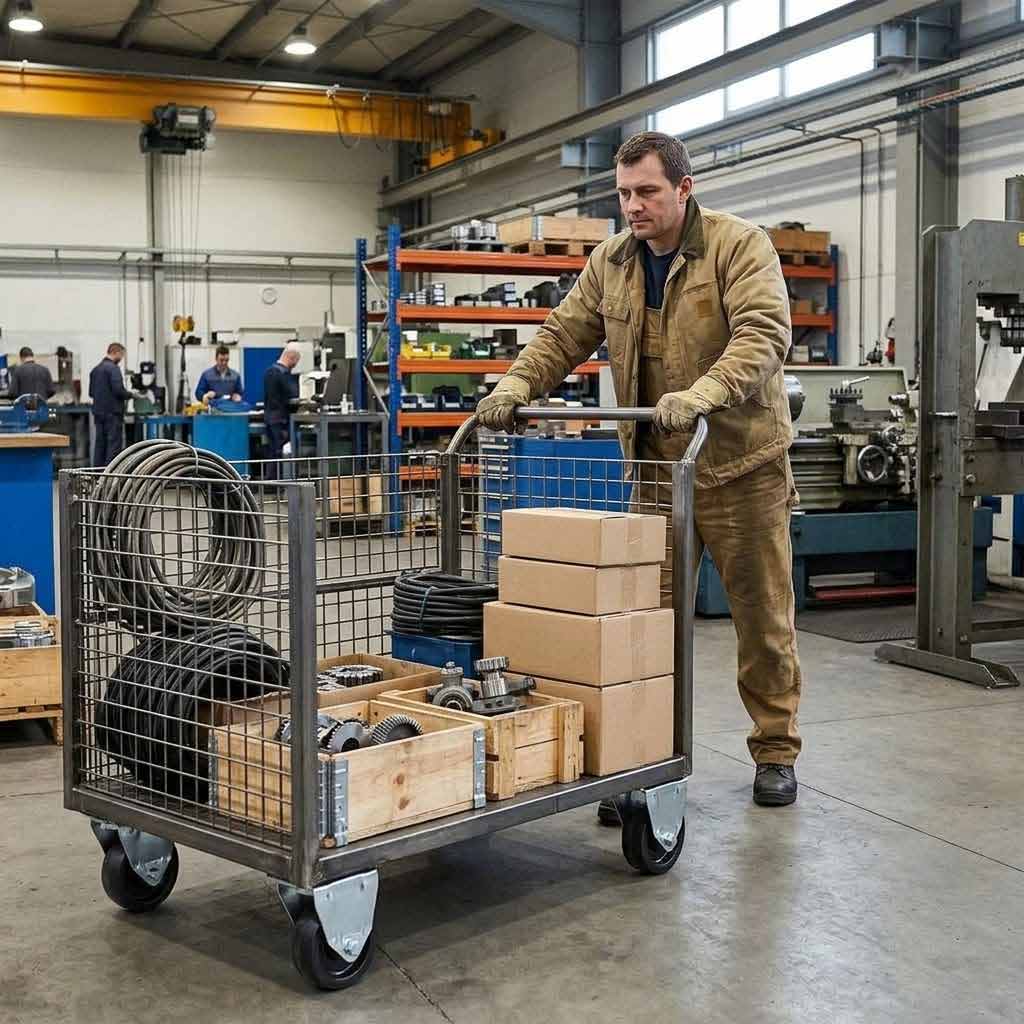

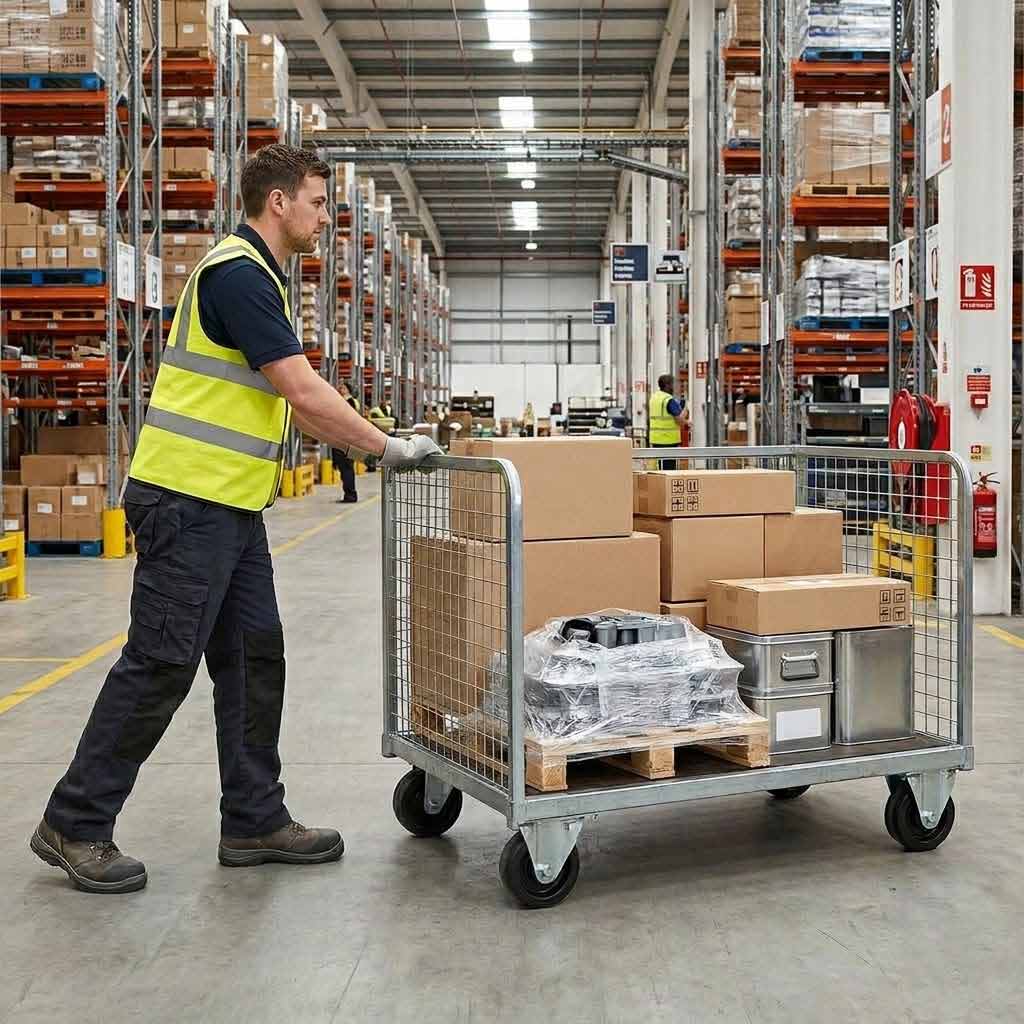

- Light Industrial Carts — picking trolleys, assembly line carts, and warehouse dollies with moderate load requirements
Frequently Asked Questions
* All measurements are nominal. Load capacities are based on static conditions on flat, smooth surfaces at ambient temperature. For dynamic or high-cycle applications, consult load ratings with an appropriate safety factor applied.
